Product Number: CDM66-65-65
Variations
Where compact installations demand firm control, the CDM66-65-65 cone (cab) mount delivers maximum load resistance within the 66 mm body diameter. Rated to a maximum load of 170 kg and secured by an M16 bolt torqued to 240 N·m, this 65 Shore A mount is designed to carry heavier loads with the least movement, making it the right choice when the mounted component must be held firmly against shock, impact, and sustained operational forces in a smaller-footprint application. The rubber-to-metal bonded construction provides high horizontal stiffness relative to vertical stiffness, the defining characteristic of cone mount geometry. Which keeps cabs, engines, and equipment positionally stable under dynamic loading. At 65 Shore A, the firmer rubber compound minimises deflection, prioritising restraint and load capacity over isolation travel. The failsafe design adds assurance for mobile and off-highway deployments where mount failure would carry serious consequences. Key dimensions: outer diameter D 66 mm, bore d 18.8 mm, secondary diameter D1 39.8 mm, overall height H 38 mm, H1 29.5 mm, and thread engagement C 40.0–40.3 mm, with stud thread E 19/20. These proportions suit compact mounting arrangements on construction and agricultural machinery, operator cabs, and off-highway vehicles where space is restricted but load and shock demands are not. The mount may be loaded in shear, compression, or a combination of both, protecting surrounding structures and extending machinery service life. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Rubber Mount - Square Flanged Mount Range, Thread Size M16, Max Load 750 Kg - FM600-60
£97.57
£95.66
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|

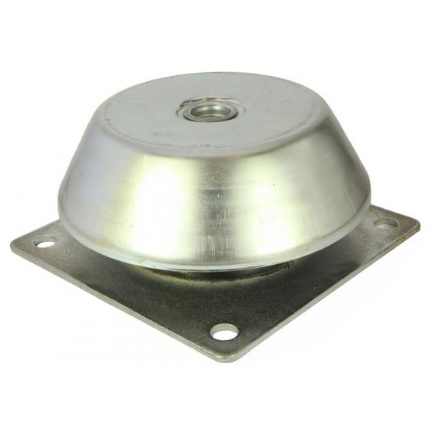

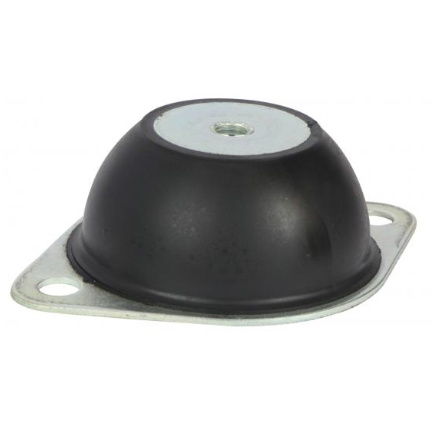

| PRODUCT NUMBER | CM6051/16B | SFCM150HD | SFCM150 | FM600-75 | FM600-60 |
| Thread Size | M16 | M16 | M16 | M16 | M16 |
| Mount Type | Cone Mountings | Square Flanged Captive Mounts | Square Flanged Captive Mounts | Flanged Mountings | Flanged Mountings |
| Size Band | 51–75mm | 126mm+ | 126mm+ | 126mm+ | 126mm+ |
| Hardness Shore | 75 | 60 | |||
A. The CDM66-65-65 is rated to a maximum load of 170 kg, making it the highest-load option within the 66 mm CDM cone mount range.
A. The mount uses an M16 bolt with a maximum torque of 240 N·m. Thread engagement C measures 40.0–40.3 mm, and stud thread E is 19/20.
A. Outer diameter D is 66 mm, bore d is 18.8 mm, secondary diameter D1 is 39.8 mm, overall height H is 38 mm, and H1 is 29.5 mm.
A. The 65 Shore A firm grade carries higher loads with less movement and provides greater restraint against shock and impact. Softer grades (CDM66-45 and CDM66-55) offer greater deflection and better vibration isolation at lower loads, making the 65 Shore A the correct choice where load capacity and positional stability take priority.
A. The mount may be loaded in shear, compression, or a combination of both, offering flexibility in mounting orientation.
A. The CDM cone mount family is designed for construction and earth-moving machinery, agricultural machinery, operator cabs, off-highway vehicles, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
