Product Number: CTM10642

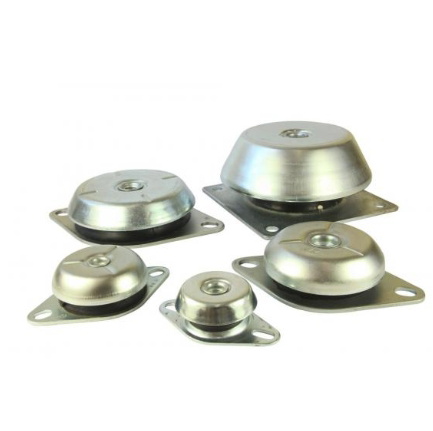

Rated across a load band suited to mid-range industrial machinery, the CTM10642 is a 106mm captive transit mount with M12/M16 thread configuration, engineered to combine secure equipment retention in transit with effective vibration attenuation in static or mobile service. With a static load figure of 4.0 and a compression figure spanning 138–146, it occupies the middle ground of the captive transit mount range, delivering controlled deflection across applications where both transit security and running isolation are essential requirements. The mount's rubber element operates in shear-compression, a configuration that delivers vibration reduction across all axes. An integral overload stop controls the movement of mounted equipment during transit, while a failsafe arrangement governs shock loads to prevent catastrophic failure. The metal top cap shields the rubber element from oil, fuel and general contamination, and the protective plating on all metal surfaces resists corrosion in demanding operating environments. Rubber-to-metal bonded construction ensures load transfer integrity over extended service life. With an overall body diameter (A) of 106mm, a height dimension (B) of 42mm, a female-to-male face distance (F×M) of 12.5×19mm, an overall length (L) of 171mm, and a Shore A hardness of 80, the CTM10642 is well matched to pumps and compressors, industrial and commercial vehicles, and construction and plant equipment where mid-range load capacity and reliable shock control are the governing criteria. The mount is equally appropriate for static power-generation installations, generating sets and diesel engines. Where improving machinery lifespan and protecting surrounding structures are operational priorities.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 106 |
|---|---|
| Width / dimension B (mm) | 42 |
| Pitch / dimension P (mm) | M12 / M16 |
| Fixing hole F (mm) | 12.5 |
| Thread / stud size M | 19 |
| Across flats / clearance CF (mm) | 138-146 |
| Fixing hole spacing G (mm) | 80 |
| Length L (mm) | 171 |
| Plate / metal thickness S (mm) | 4 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM-R | CTM-R2 | CTM-R3 | CTM1063812-45 | CTM1063812-60 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Size | 64mm | ||||
| Deflection | 3.5mm | 3.5mm | 4mm | 3.5mm | |
| Size Range | 51-100mm | ||||
| Thread | M12 | M12 | M12 | M12 | M12 |
A. The CTM10642 has a body diameter (A) of 106mm, a height (B) of 42mm, a female-to-male face distance (F×M) of 12.5×19mm, and an overall length (L) of 171mm. Thread configuration is M12/M16 and the Shore A rubber hardness is 80.
A. The compression figure (CF) for the CTM10642 is 138–146, with a static load figure (S) of 4.0.
A. The CTM10642 is suitable for pumps and compressors, industrial and commercial vehicles, construction and plant equipment, generating sets and diesel engines. Its 80 Shore A hardness and mid-range load capacity make it appropriate for applications requiring both transit security and effective vibration attenuation in normal service.
A. An integral overload stop controls the movement of the mounted equipment during transit, limiting displacement to a safe range. A separate failsafe arrangement governs shock loads and prevents catastrophic failure if the rubber element is subjected to extreme loading.
A. Yes. A metal top cap protects the rubber element against oil, fuel and general contamination. All metal surfaces carry a protective plating that resists corrosion in demanding operating environments.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes within the captive transit mount family.
A. Related variants include CTM-R, CTM10638, CTM10850, CTM11548, CTM12142, CTM12548, CTM14448 and CTM14453, spanning a range of body sizes, load ratings and shore hardnesses to suit lighter through to heavier equipment requirements.
