Product Number: CTM1064212-1
Variations
The CTM1064212-1 is the lightest grade of the 106 x 42 mm captive transit mount, carrying up to 200 kg per point. It runs an M12 stud and suits smaller generating sets, pumps, motors, fans and engines that need vibration isolation plus restraint during transport. It suits smaller generating sets, pumps, motors, fans and engines that need vibration isolation plus restraint during transport.
Like the whole captive transit range, it loads the rubber in shear compression for up to 95% vibration reduction in all axes, protects the element from oil and fuel with a metal top cap, and builds in an overload stop so the equipment stays controlled in transit — with the captive arrangement acting as a failsafe under shock loads. The 106 mm flange stands 42 mm high; fixing is through 12.5 x 19 mm slots at 138-146 mm centres, inner dimension 80 mm, free length 171 mm, base 4 mm.
Alternative grades on this body: CTM1064212-2 (375 kg), CTM1064212-3 (500 kg), CTM1064212-4 (625 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

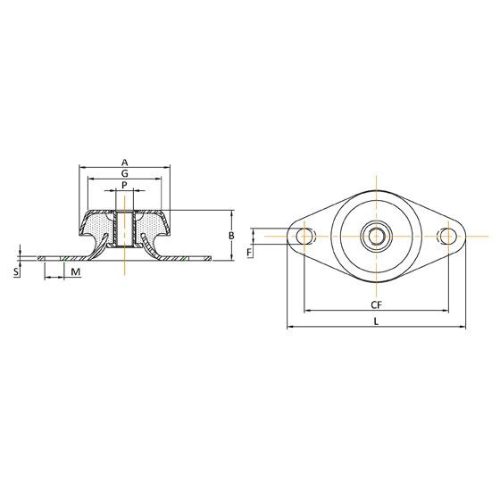

| Outer Dimensions (A) | 106mm |
|---|---|
| Flange Height (B) | 42mm |
| Thread size (P) | M12 |
| Mounting Hole Dimensions (F x M) | 12.5X19mm |
| Center Distance (CF) | 138-146mm |
| Inner Dimensions (G) | 80mm |
| Free Length (L) | 171mm |
|
, Max Load 200
|
|
| Deflection (mm) | 7mm |
| Mounting Base Thickness (S) | 3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1064216-1 | CTM933510-45 | CTM933512-45 | CTM833510-60 | CTM833512-60 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 7mm | 3.5mm | 3.5mm | 6mm | 6mm |
| Thread | M16 | M10 | M12 | M10 | M12 |
A. Fit is by dimensions - 106 mm flange, 42 mm flange height, 12.5 x 19 mm slots at 138-146 mm centres, M12 stud, 171 mm free length. Compare with your footprint, search PartsForMachines by the AV part number, or WhatsApp our team to confirm.
A. Up to 200 kg per mounting point in this grade.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM1064212-2 (375 kg), CTM1064212-3 (500 kg), CTM1064212-4 (625 kg). Work out the load per mounting point and pick the grade that covers it.
A. Yes - the integral overload stop controls movement of the mounted equipment during transit and the captive, failsafe construction controls shock loads, so the range suits mobile as well as static duty.
A. WhatsApp us on 07754 288583 with photos of the item and packaging.
