Product Number: CTM1064212-4
Variations
The CTM1064212-4 tops out the 106 x 42 mm M12 captive series at 625 kg per mount. It is the grade for the heaviest generating sets, industrial and marine engines and compressors in the family's load range.
Its rubber element, loaded in shear compression, delivers up to 95% vibration reduction in all axes; a metal top cap seals the rubber away from oil and fuel. The integral overload stop controls the equipment's movement in transit, and the captive construction is failsafe under shock loads. Fixing details match the rest of the series: 106 mm flange, 42 mm flange height, 12.5 x 19 mm slots at 138-146 mm centres, 80 mm inner dimension, 171 mm free length, 4 mm base.
Alternative grades on this body: CTM1064212-1 (200 kg), CTM1064212-2 (375 kg), CTM1064212-3 (500 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

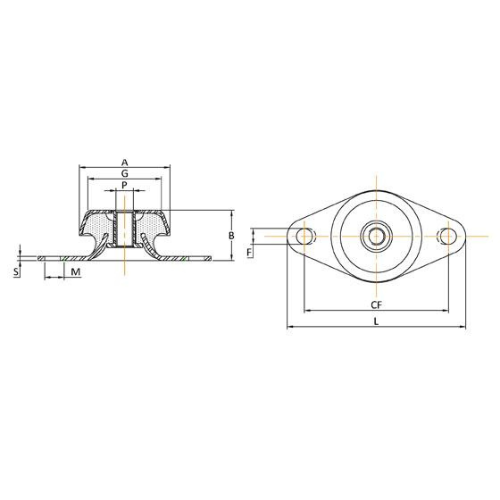

| Outer Dimensions (A) | 106mm |
|---|---|
| Flange Height (B) | 42mm |
| Thread size (P) | M12 |
| Mounting Hole Dimensions (F x M) | 12.5X19mm |
| Center Distance (CF) | 138-146mm |
| Inner Dimensions (G) | 80mm |
| Free Length (L) | 171mm |
|
, Max Load 625
|
|
| Deflection (mm) | 7mm |
| Mounting Base Thickness (S) | 3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1064216-4 | CTM1214216-60 | CTM1085016-60 | CTM924512-60 | CTM1063812-70 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 7mm | 4mm | 3mm | 3.5mm | 3mm |
| Thread | M16 | M16 | M16 | M12 | M12 |
A. Anything matching the footprint: 106 mm flange, 12.5 x 19 mm slotted fixings at 138-146 mm centres, M12 stud, 171 mm free length. Search PartsForMachines by the AV part number or WhatsApp our team with your dimensions.
A. 625 kg per mounting point - the highest grade of the CTM1064212 series.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM1064212-1 (200 kg), CTM1064212-2 (375 kg), CTM1064212-3 (500 kg). Work out the load per mounting point and pick the grade that covers it.
A. The integral overload stop limits movement of the mounted equipment during transit, and the captive design provides a failsafe arrangement to control shock loads.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
