Sykes Pickavant 155405V2 Hydraulic Puller & Separator Kit

Product Number: 155405V2

£699.21 £685.50

BUY NOW

ADD TO CART

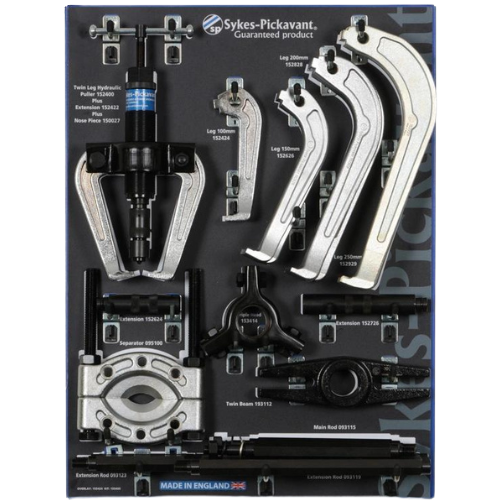

Sykes-Pickavant 155405V2 Hydraulic Puller and Separator Kit presents the 1500 Series 8 tonne pulling system on a wall mountable metal display panel measuring about 1000 x 457 mm. It can be configured into ten different twin or triple-leg pullers with spreads from 50 to 250 mm and a maximum reach of 200 mm, plus a bearing separator arrangement with external spreads from 20 to 105 mm and up to 876 mm reach. The kit includes the 150000V2 hydraulic ram, twin and triple heads, ram extensions of 50, 100 and 150 mm, leg sets from 100 to 250 mm extra wide, twin beam, two bearing separators, main rods, extension rods, display panel and hook kit. This hydraulic puller panel kit is ideal for workshops wanting a centralised 8 tonne puller and separator station with every component clearly visible and ready for use.

Additional Information-

Hydraulic 1500 series

Removes gears, bearings, pulleys and sprockets
Wide range of automotive and industrial applications
Powered by 1500 series hydraulic ram
Safe and easy to use
8 tonnes of force with minimum effort
Easy to adjust
Non-twisting for improved stability
Supplied with nose piece for use on centered shafts
Self centering and self locking
Redesigned legs, improving strength
The separator is a versatile tool where a long reach is required to draw a bearing from a shaft.
The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access.
Makes 10 different twin/triple leg pullers, plus bearing separator kit
Supplied with metal display panel (1000mm x 457mm)

Dimensions:

Puller Spread Min - Max: 50-250mm
Puller Reach Max: 200mm
External Spread Min - Max: 20-105mm
External Reach Max: 876mm

Contents:

150000V2 1500 Series Hydraulic Ram With Nose Piece
15241200 1 x Twin Head
15341300 1 x Triple Head
15242200 1 x Ram Extension - 50mm
15262400 1 x Ram Extension - 100mm
15272600 1 x Ram Extension - 150mm
15242400 3 x Legs - 100mm
15262600 3 x Legs - 150mm
15282800 3 x Legs - 200mm
15292900 3 x Legs - 250mm (Extra Wide)
19311200 1 x Twin Beam
09510000 1 x Separator 20-105mm
09311500 2 x Main Rods
09311900 4 x Extension Rods
09312300 2 x Extension Rods 5 inch
15512800 1 x Metal Panel
15542700 1 x Hook Kit

About Parts For Machines:

PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

BUY NOW

ADD TO CART

Product Dimensions (L x W x H)	1000 x 470 x 130 mm
Product Weight	25 Kg
Puller Spread Min - Max	50-250mm
Puller Reach Max	200mm
External Spread Min - Max	20-105mm
External Reach Max	876mm

BUY NOW

ADD TO CART

Engine Parts	Product Number	Product Name	Recommended Units	Product Price
	15341400	Sykes Pickavant 15341400 HEAD PRESSING WITH PINS	1 Unit	£48.79 £47.83	Add
	15542700	Sykes Pickavant 15542700 HOOK KIT - 155405V2	1 Unit	£78.64 £77.10	Add

BUY NOW

ADD TO CART

How to select the right Puller for removing Gears, Hub Cap,...

How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...

BUY NOW

ADD TO CART

Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Use promo code "RMPK1" to get Additional 1% OFF

Question about this product? Click here

Compare with Similar products	Compare Sykes Pickavant 8780000 Universal Press & Pull Sleeve Kit - Car/LCV Kit £642.18 £629.59 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 21027500 HGV HUB PULLER KIT £812.30 £796.37 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 9584000 Spigot Bearing Tool £172.29 £168.91 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 155400V2 Hydraulic Puller & Separator Kit £595.95 £584.26 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 19310500 Hydraulic Internal Extractor, Puller & Separator Kits With Slide Hammer, On Panel £1,009.72 £989.92 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 150000V2 8 Tonne Hydraulic Ram \| 1500 Series \| 80kN £102.88 £100.86 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 15500000 Hydraulic Twin/Triple Leg Puller Kit £262.49 £257.34 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 15510500 Hydraulic 2/3 Leg Puller Kit 50-250mm £595.95 £584.26 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 18654400 Hydraulic Twin/Triple Leg Puller Kit - Thin Jaw £655.46 £642.61 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 15520000 Hydraulic Puller & Separator Kit \| 8 Tonne \| 50–150mm £452.45 £443.58 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 09580000 Internal Split Collets Extractor Kit £514.12 £504.04 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 18655500 Hydraulic Twin/Triple Leg Puller Kit - Thin Jaw £786.41 £770.99 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 09810000 Multipull Blind Housing Bearing Remover Kit £393.75 £386.03 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 155100V2 Hydraulic Twin/Triple Leg Puller Kit £409.19 £401.17 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 15240000 Hydraulic Standard Twin Leg Puller £151.19 £148.23 2% OFF Free delivery in UK Mainland ADD
Technical Specification
PRODUCT NUMBER	8780000	21027500	9584000	155400V2	19310500	150000V2	15500000	15510500	18654400	15520000	09580000	18655500	09810000	155100V2	15240000
Type	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller	Hydraulic Puller
Length (mm)	450	160	50	160	120	50	106	250	110	150	60	200	100	160	101
Product Dimenstions (L x W x H)	550 x 125 x 450 mm		185 x 50 x 50 mm				500 x 106 x 106 mm		370 x 220 x 110 mm		470 x 140 x 60 mm	630 x 470 x 200 mm	300 x 350 x 100 mm	480 x 150 x 160 mm	208 x 108 x 101 mm
Weight (kg)	55	27	1.6	28	17.5	1.7	8.2	16	15	75	10	14	14	92	22

Technical

Q 1. What extra feature does 155405V2 offer compared with 155400V2?

A. 155405V2 is supplied with a large metal display panel and hook kit, ideal for mounting the hydraulic puller system visibly on workshop walls.

Q 2. Why is a display panel useful for hydraulic puller kits like 155405V2?

A. It keeps components accessible and organised, helps technicians quickly identify missing items and presents tools professionally in busy workshops.

Q 3. Does 155405V2 still deliver the same 8 tonne pulling capacity?

A. Yes, it uses the 1500 Series 8 tonne ram and matching legs, beams and separators, giving identical mechanical performance to equivalent non-display kits.

Q 4. What spread and reach ranges can 155405V2 achieve on components?

A. It offers 50-250mm puller spread and a reach around 200mm, plus separator coverage up to about 105mm external spread.

Q 5. How many configurations can be assembled using the 155405V2 kit?

A. It can build ten different twin and triple leg pullers along with a bearing separator setup, maximising flexibility for varied removal tasks.

Q 6. Is 155405V2 suitable for workshops wanting a teaching or demonstration setup?

A. Yes, the display panel arrangement is excellent for training environments where clear presentation of puller options is beneficial.

Q 7. Does the display panel affect mechanical use of the 155405V2 components?

A. No, it purely affects storage; once removed from the panel, the puller components operate identically to standard hydraulic kits.

Q 8. How does the hook kit help organise 155405V2 parts on the panel?

A. Hooks allow tailored positioning of legs, beams, ram and separators, making visual checks easy and keeping heavy components securely supported.

Q 9. When should a workshop choose 155405V2 rather than case-based kits?

A. Choose 155405V2 when permanent wall-mounted storage is preferred and when quick visual access outweighs portability between sites.

Q 10. Can 155405V2 components be relocated to a case later if required?

A. Yes, components remain standard 1500 Series parts; a suitable metal case can be added if future transport requirements change.

Q 11. Is the 155405V2 appropriate for dealer or distributor showrooms?

A. The display format makes it well suited for showrooms or training centres demonstrating Sykes Pickavant hydraulic puller capabilities.
