Product Number: 09580000
Variations
Additional Information
Internal Spread Min - Max: 6.5-60mm
No of Split Collet Extractors: 9
Thread size - ½" x 20 UNF

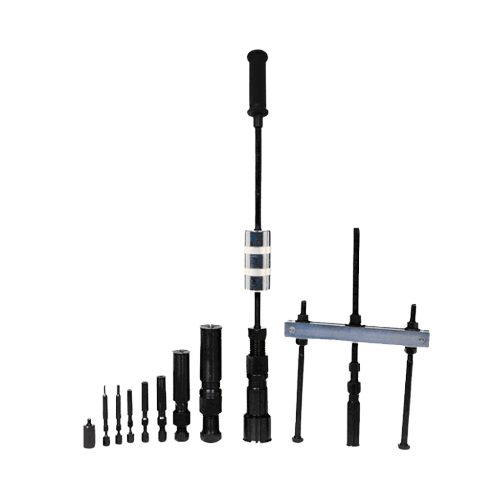

Contents:
08542100 1 x Slide Hammer Assembly
09580500 1 x Pulling Unit
09580900 1 x Split Collet Extractor 6.5 - 8mm (No.00)
09581000 1 x Split Collet Extractor 8.5 - 10mm (No.0)
09581100 1 x Split Collet Extractor 10 - 12mm (No.1)
09581200 1 x Split Collet Extractor 12 - 17mm (No.2)
09581300 1 x Split Collet Extractor 19 - 22mm (No.3)
09581400 1 x Split Collet Extractor 22 - 30mm (No.4)
09581500 1 x Split Collet Extractor 30 - 38mm (No.5)
09581600 1 x Split Collet Extractor 38 - 50mm (No.6)
09581700 1 x Split Collet Extractor 50 - 60mm (No.9)
09582000 1 x Adaptor
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimenstions (L x W x H) | 470 x 140 x 60 mm |
|---|---|
| Product Weight | 10 Kg |
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Slide Hammer Puller & Split Collett Extractor Kit, Sykes Pickavant - 08540400
£322.91
£316.58
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 155900V2 Hydraulic Internal Extractor, Puller & Separator Kit - Master Set
£1,418.72
£1,390.90
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 19310500 Hydraulic Internal Extractor, Puller & Separator Kits With Slide Hammer, On Panel
£1,009.72
£989.92
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | 08540400 | 155900V2 | 19310500 |
| Separator Min. Spread | 35mm | 10mm | |
| Separator Max. Spread | 140mm | 105mm | |
| Puller Max. Spread (Ext.) (mm) | 200 - 399 | ||
| Ram Extension | 50mm | ||
| Legs | Triple | Twin | |
A. It removes gears, bearings, pinions and oil seals where conventional pullers cannot grip behind components.
A. It covers internal spreads from roughly 6.5 to 60 millimetres using split collet extractors.
A. Nine split collets are provided, each covering specific internal diameter ranges.
A. It includes a slide hammer assembly and a pulling unit for different extraction approaches.
A. They grip inside components where there is no access for external legs, enabling pulling from within.
A. Yes, it can be upgraded with additional beams to form external puller configurations.
A. An adaptor is supplied for attaching split collets to the pulling unit or slide hammer.
A. Yes, it is widely applicable for internal bearing and gear extraction across many sectors.
A. Measure the internal diameter, then select the collet whose range best covers that size.
A. Clean and lightly oil collets and threads, check the slide hammer and store everything in the metal case.
A. Avoid use where internal surfaces are too soft or fragile to withstand expansion forces from the collet.
A. It offers a comprehensive solution for many internal pulling tasks without dismantling whole assemblies.
