Product Number: 15510500
Variations
Dimensions:
Contents:
| Product Dimensions (L x W x H) | 690 x 500 x 80 mm |
|---|---|
| Product Weight | 16 Kg |
| Puller Spread Min - Max | 50 - 250mm |
| Puller Reach Max | 250mm |
| Ram Extension | 50 / 100 / 150mm |
sykes-pickavant-hydraulic-twintriple-leg-puller-kit-1.pdf
|
Open Now |
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 15240000 Hydraulic Standard Twin Leg Puller
£151.19
£148.23
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 15360000 HYDRAULIC PULLER - TRIPLE LEG
£198.26
£194.37
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 15380000 HYDRAULIC PULLER - TRIPLE LEG
£200.40
£196.47
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 15390000 HYDRAULIC PULLER - TRIPLE LEG
£236.23
£231.60
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 15240000 | 15340500 | 15360000 | 15380000 | 15390000 |
| Puller Reach (mm) | 200 - 299 | 100 - 199 | |||
| Puller Max. Spread (Ext.) (mm) | 45 - 199 | 45 - 199 | 200 - 399 | 200 - 399 | |
| Ram Extension | 50mm | 50mm | 150mm | 150mm | |
| Legs | Twin | Triple | Triple | Triple | |

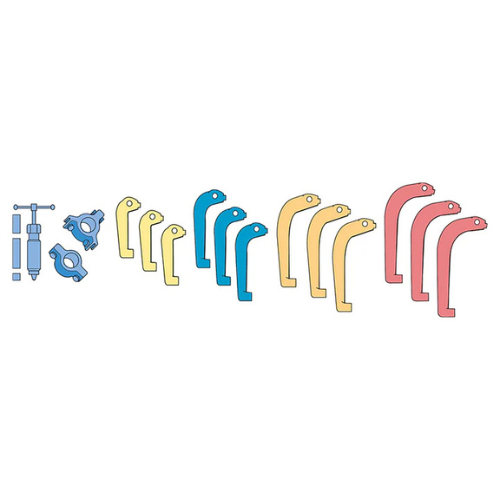

A. It can build up to eight different twin or triple leg puller arrangements, using various leg lengths mounted on the supplied display panel.
A. It covers 50-250mm puller spread with a maximum reach of 250mm, giving broad coverage across many automotive and industrial pulling tasks.
A. The kit includes the 150000V2 8 tonne hydraulic ram with nose piece, providing reliable power for tough gear, bearing and pulley removal jobs.
A. 100mm, 150mm, 200mm and 250mm legs allow technicians to adapt to different component diameters and access depths on shafts and housings.

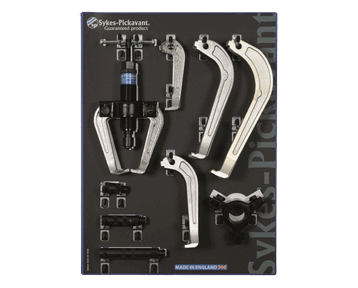

A. Components are supplied on a metal display panel with hook kit, helping keep legs, beams and ram organised and ready for use.
A. It is primarily intended for external pulling using two or three legs, but can work with compatible separators or attachments for special applications.
A. It is used to remove gears, bearings, pulleys and sprockets on automotive drivetrains and industrial machinery where 8 tonne force is sufficient.
A. Ram extensions of 50mm, 100mm and 150mm allow the hydraulic ram to reach deeper into assemblies while keeping the puller frame correctly positioned.
A. Yes, many 1500 Series separators and accessories can be used alongside, providing extended capability within rated loads and correct interfaces.
A. Choose the panel kit where wall-mounted, always-visible storage is preferred, supporting fast selection and easy inventory checks.
A. Yes, its spread and reach ranges suit a mix of vehicle and machinery maintenance tasks requiring 8 tonne pulling force.
A. Clean legs and beams after use, lightly lubricate threads, inspect the hydraulic ram for leaks and ensure the display panel fixings stay secure.
