Product Number: 19310500
Variations
Contents:
| Product Dimensions (L x W x H) | 630 x 480 x 120 mm |
|---|---|
| Product Weight | 17.5 Kg |
| External Spread Min - Max | 10-105mm |
| Internal Reach Min - Max | 6.5-38mm |
| External Reach Max | 876mm |
19310500
|
Open Now |
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 15530500 Comprehensive Hydraulic Puller, Separator & Extractor Kit
£1,511.46
£1,481.82
2% OFF
Free delivery in UK Mainland
|

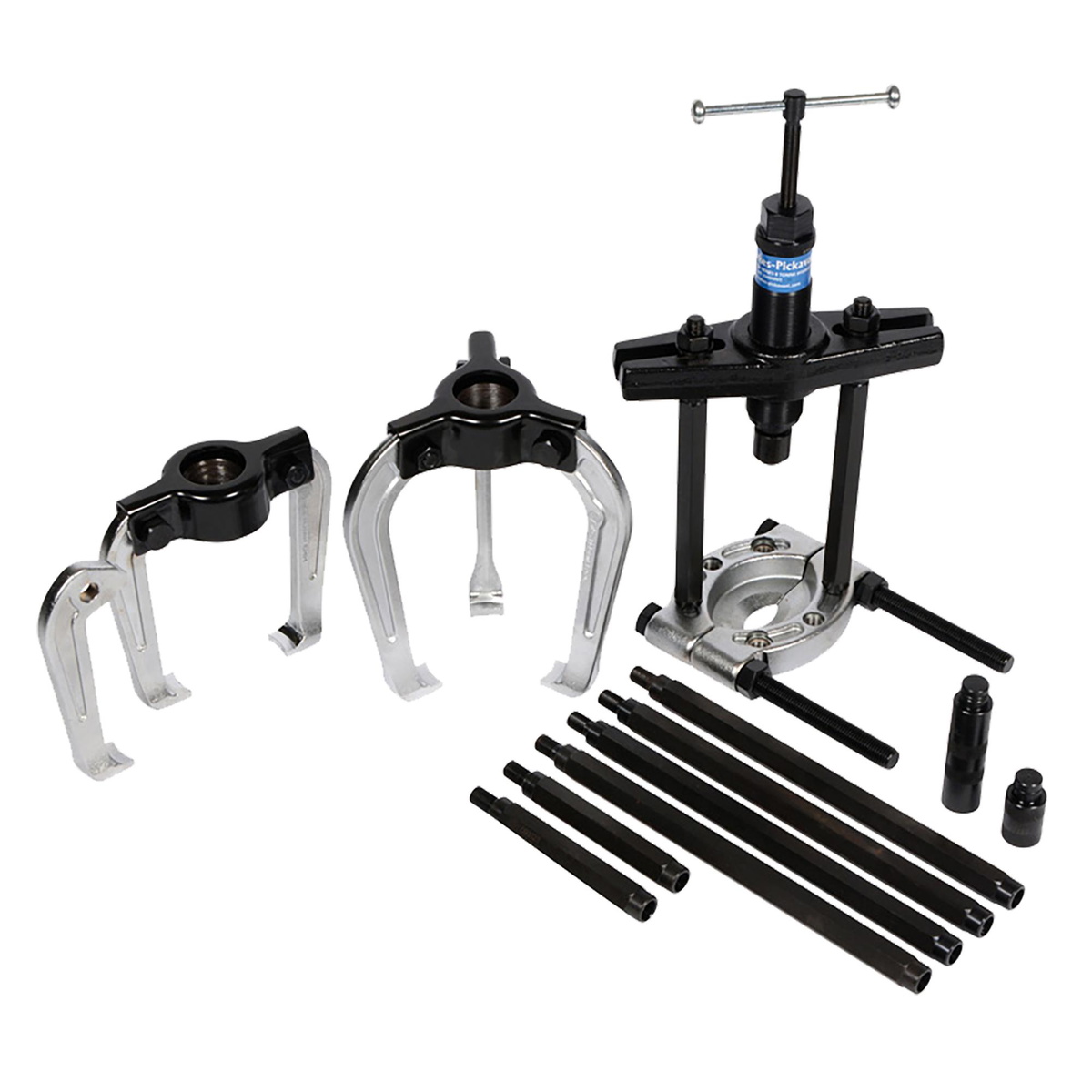

Sykes Pickavant 155200TC Hydraulic Puller & Separator Kit - Tool Control
£611.70
£599.71
2% OFF
Free delivery in UK Mainland
|

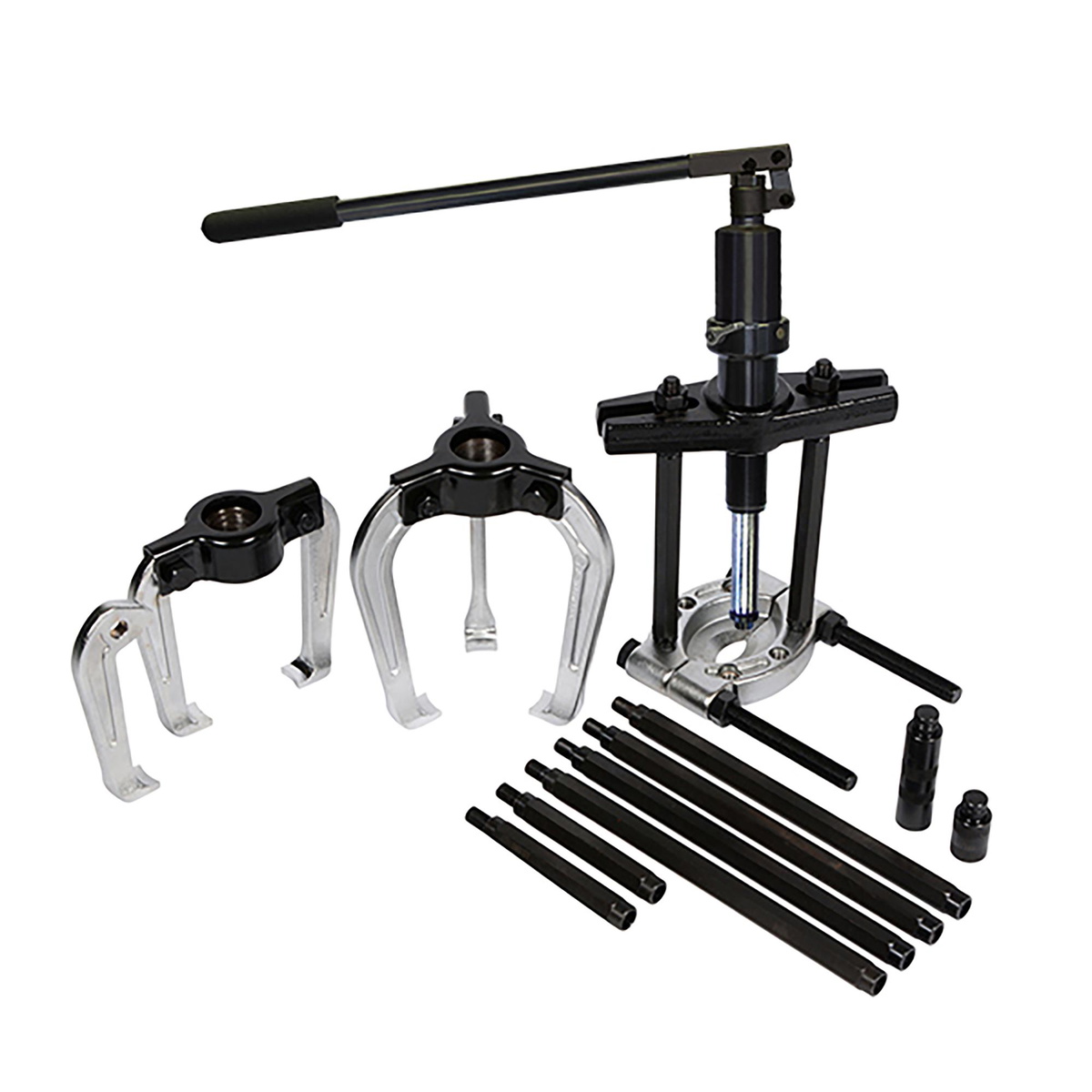

Sykes Pickavant 155200XT Hydraulic Puller & Separator Kit - Extra Travel
£809.48
£793.61
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 155400V2 Hydraulic Puller & Separator Kit
£595.95
£584.26
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 155405V2 Hydraulic Puller & Separator Kit
£699.21
£685.50
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 15530500 | 155200TC | 155200XT | 155400V2 | 155405V2 |
| Separator Min. Spread | 10mm | 20mm | 20mm | ||
| Separator Max. Spread | 105mm | 105mm | 105mm | ||
| Puller Max. Spread (Ext.) (mm) | 200 - 399 | 200 - 399 | 200 - 399 | ||
| Ram Extension | 50mm | 50mm | 150mm | ||
| Legs | Triple | Triple | Triple | ||
A. It removes bearings and gears where access behind components is too restricted for standard pullers, using internal split collet extractors and a hydraulic ram.
A. Split collets grip inside the bearing while the ram or slide hammer pulls it out, allowing removal when standard external legs cannot reach.
A. It covers internal reaches from approximately 6.5-38mm and external spreads from around 10-105mm, suiting many small to medium bearings and gears.
A. It uses the 150000V2 hydraulic ram for controlled pulling and includes a slide hammer for situations where impact extraction is beneficial.
A. Seven split collet extractors are supplied, covering sizes from roughly 6.5mm up to 38mm, plus an adaptor to connect to the pulling unit.
A. High-strength, heat-treated steel provides durability and resistance to distortion when applying significant extraction forces in demanding service conditions.

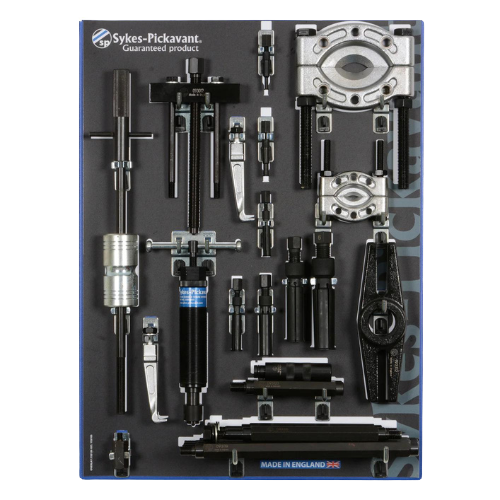

A. Components are mounted on a metal display panel with hooks, making size selection and inventory checking quick and straightforward.
A. Yes, it includes a twin beam compatible with other legs and separators, forming part of the broader 1500 Series hydraulic ecosystem.
A. Use the slide hammer when corrosion or tight fits require shock loading rather than purely steady hydraulic pulling.
A. It is well suited to automotive drivetrains and industrial machinery where internal or blind bearings must be extracted safely.
A. Always choose the correct collet size, keep the extractor aligned and increase force gradually, avoiding side loads on housings.
A. Clean collets and rods, lubricate threads lightly, check the slide hammer for damage and ensure the hydraulic ram remains free from leaks.
