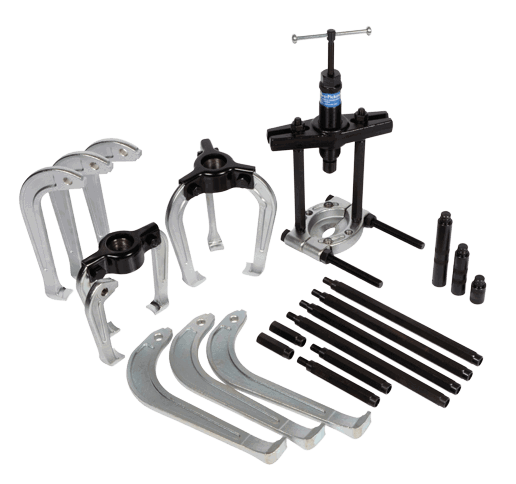

Product Number: 155400V2
| Product Dimensions (L x W x H) | 360 x 320 x 160 mm |
|---|---|
| Product Weight | 28 Kg |
| Puller Spread Min - Max | 50-250mm |
| Puller Reach Max | 200mm |
| External Spread Min - Max | 20-105mm |
| External Reach Max | 876mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
15341400 | Sykes Pickavant 15341400 HEAD PRESSING WITH PINS | 1 Unit |
£48.79
£47.83
|
Add |
|
15242400 | Sykes Pickavant 15242400 4" LEG | 1 Unit |
£32.04
£31.41
|
Add |
|
15262600 | Sykes Pickavant 15262600 LEG | 1 Unit |
£34.78
£34.10
|
Add |
|
15272600 | Sykes Pickavant 15272600 RAM EXTENSION 6INS | 1 Unit |
£25.86
£25.35
|
Add |
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 155800V2 HYDRAULIC PULLER & SEPARATOR SET
£934.03
£915.72
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 155700V2 HYDRAULIC PULLER & SEPARATOR KIT
£847.35
£830.74
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 155800V2 | 155700V2 | 50094 | PS990 | 93509 |
| Type | Hydraulic Puller | Hydraulic Puller | Hydraulic Puller | Hydraulic Puller | Hydraulic Puller |
| Length (mm) | 160 | 160 | |||
| Product Dimenstions (L x W x H) | 360 x 320 x 160 mm | 360 x 320 x 160 mm | |||
| Weight (kg) | 36 | 31 | 36 | ||
A. It offers puller spread from 50-250mm with up to 200mm reach, handling larger bearings, gears and pulleys than shorter 1500 Series kits.
A. It can form eight different twin and triple leg pullers plus a bearing separator setup, giving wide flexibility from one modular system.
A. It is powered by the 150000V2 8 tonne hydraulic ram, providing reliable force for heavy-duty automotive and industrial removal jobs.
A. The combination of 100mm, 150mm, 200mm and 250mm wide legs allows adaptation to a broad spread of component diameters and access conditions.
A. The separator provides all-round support behind bearings where legs cannot reach, particularly important for long-reach or recessed bearing arrangements.
A. Yes, its 50-250mm spread and 8 tonne capacity make it ideal for plant maintenance tasks involving medium to large rotating assemblies.
A. It keeps the puller aligned and reduces twisting, helping maintain control and minimise the risk of sudden component release under load.
A. It is supplied in a metal case, accommodating the ram, heads, legs, separator and beams for organised storage and easier transport.
A. Choose 155400V2 when regular work involves larger components requiring up to 250mm spread or extended reach beyond smaller kits.
A. No, impact tools should not be used on hydraulic puller components; always apply force through the hydraulic ram and specified handles only.
A. Many elements share common interfaces, allowing some cross-use with other 1500 Series kits, provided capacities and instructions are followed.
A. Clean and lightly oil threads, check legs and beams for distortion, inspect the ram for leaks and store components in the case when not used.
