Product Number: 01712

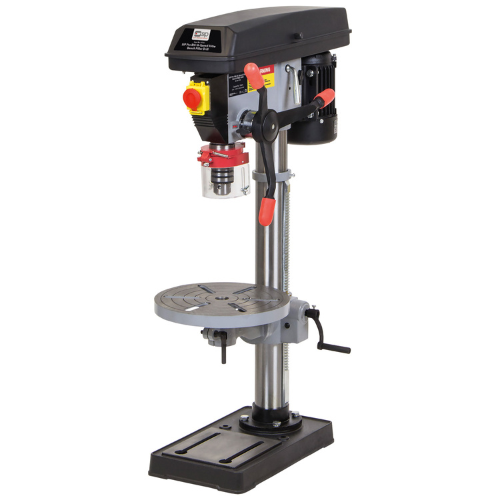

The SIP Pro B16 (SKU 01712) is a 550W bench-mounted pillar drill designed to make light work of preparing and finishing a broad range of workpiece materials, including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics. Operating from a standard 230V (13A) supply, it delivers 16 selectable speeds across a range of 220rpm to 2800rpm, making it equally suited to pilot drilling, blind holes, batch work and general drilling applications in metalwork, woodwork and manufacturing environments such as gates, rails and trailers.

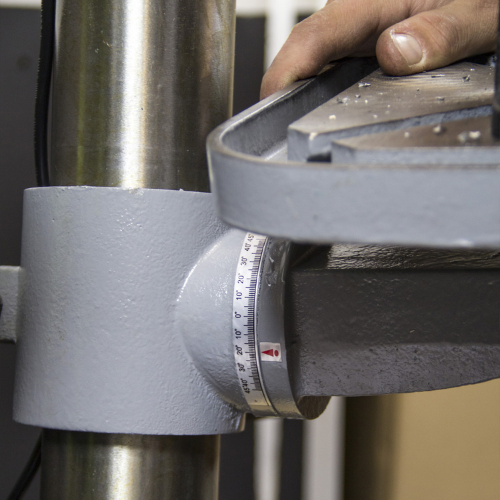

Precision and repeatability are built into the design from the outset. The adjustable tilting table with tilt scale allows the workpiece to be accurately positioned for angled or perpendicular drilling, while a three-lever handle ensures smooth and controlled drilling force. A drilling depth stop maintains consistent hole depths across repetitive or blind drilling runs, helping to minimise material wastage. The high-power brushless induction motor drives the spindle through a chuck accepting drill bits from 3mm to 16mm, with an MT2 spindle taper and 80mm of spindle travel.

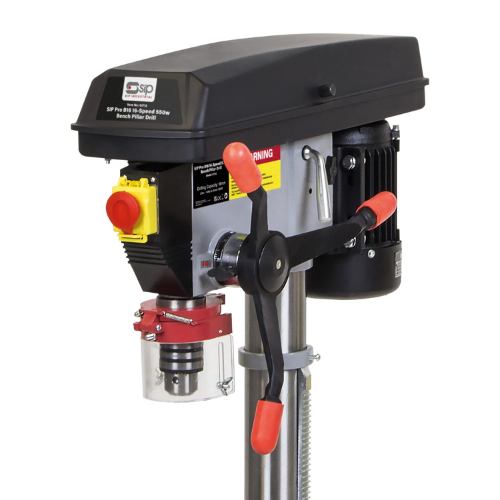

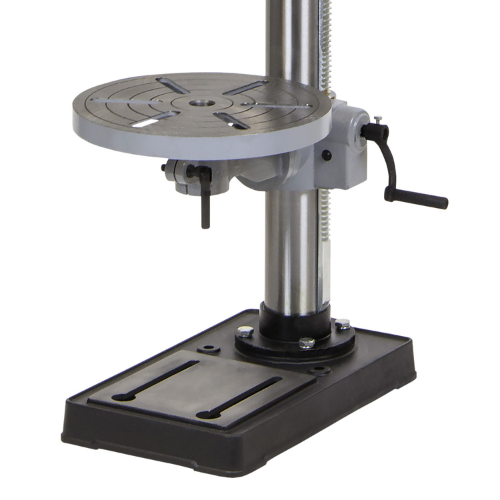

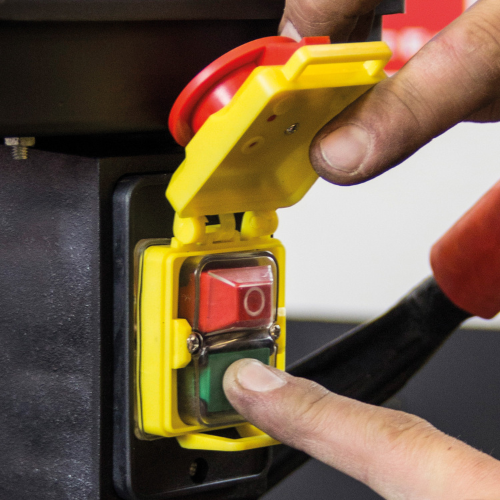

Safety features include an integrated chuck guard to reduce user risk during operation and a safety interlock switch that prevents accidental start-up when adjusting the motor belt — a reassuring feature in any busy workshop. The column diameter measures 72mm, the table diameter 290mm, and the maximum chuck-to-table distance is 360mm, with a 325mm swing. The sturdy cast iron base (410mm x 245mm) provides the stability the machine demands, while the overall bench-mounted footprint of 980mm height keeps floor space clear.
This model is available as a standalone bench pillar drill. For floor-standing pillar drill requirements within the SIP Pro range, please refer to the relevant SIP listings on the PFM site.
The SIP Pro B16 weighs 34kg net and arrives in packaging measuring 270(H) x 450(W) x 770mm. It is backed by the SIP 2-Year Standard Silver Warranty. Manufactured by SIP.
Additional Information:
The SIP Pro B16 16-Speed 550w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, the drill can be easily positioned to enable accurate drilling. Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a bench-mounted design, it is perfect for a range of workshop applications with limited floor space. Applications & uses: Suitable for ferrous and non-ferrous metals, woods and plastics, pilot, blind, batch and general drilling applications, manufacturing gates, rails and trailers, plus metalwork and woodwork environments.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 01712 |
|---|---|
| Input Voltage | 230v (13A) |
| Motor Power | 550w |
| No. of Speeds | 16 speeds |
| Speed Range | 220rpm - 2800rpm |
| Drill Bit Size | 3mm - 16mm |
| Max. Drilling Capacity | 16mm |
| Spindle Taper | MT2 |
| Table Size | Ø 290mm |
| Base Size | 410mm x 245mm |
| Column Diameter | Ø 72mm |
| Swing | 325mm |
| Height | 975mm |
| Spindle Travel | 80mm |
| Collar Diameter | Ø 72mm |
| Max. Distance | 360mm (chuck to table), 530mm (chuck to base) |
| Net Weight | 34.00kg |
| Gross Weight | 35.30kg |
| Product Dimensions | 980(H) x 290(W) x 410mm(D) |
| Packaged Dimensions | 270(H) x 450(W) x 770mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 01714 Pro F16 16-Speed 550w Floor Pillar Drill
£340.63
£333.95
2% OFF
Free delivery in UK Mainland
|
Sealey GDM200F/VS Variable Speed Floor Pillar Drill 650W
£702.86
£689.08
2% OFF
Free delivery in UK Mainland
|
Draper 95314 16 Speed Heavy Duty Bench Drill, 650W
£493.99
£484.30
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GDM92B | GDM120B | 01714 | DPG30 | DPG99 | 01710 | GDM200F/VS | 95314 |
A. The SIP Pro B16 is designed for use with ferrous and non-ferrous metals, hard and soft woods, and high-density plastics, making it suitable for metalwork, woodwork and manufacturing applications including gates, rails and trailers.
A. The SIP Pro B16 offers 16 selectable speeds spanning 220rpm to 2800rpm, allowing precise control across the full drilling spectrum for different materials and hole sizes.
A. The machine accepts drill bits from 3mm to 16mm, with a maximum drilling capacity of 16mm. The spindle taper is MT2 and spindle travel is 80mm.
A. Yes. The drill is fitted with a drilling depth stop that accurately maintains consistent hole depths during repetitive or blind hole drilling, helping to minimise material wastage.
A. The SIP Pro B16 incorporates an integrated chuck guard to reduce user risk during operation and a safety interlock switch that prevents the drill from starting accidentally whilst the motor belt is being adjusted.
A. The drill stands 975mm tall with a 410mm x 245mm cast iron base, a 290mm diameter table, 325mm swing, and a maximum chuck-to-table distance of 360mm (530mm to the base). Net weight is 34kg.
A. The SIP Pro B16 is covered by the SIP 2-Year Standard Silver Warranty.
A. The SIP Pro B16 runs on a standard 230V (13A) single-phase supply, suitable for typical UK workshop socket outlets.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
