Product Number: 05733
Click on the button below to find the right welding equipment
Welder Finder

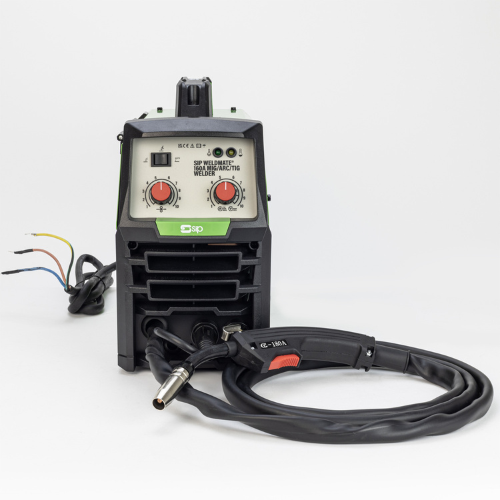

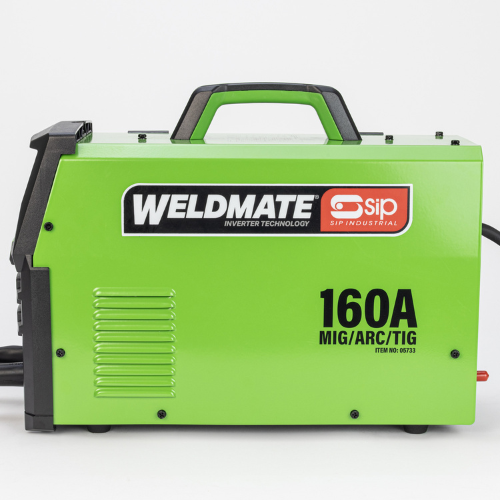

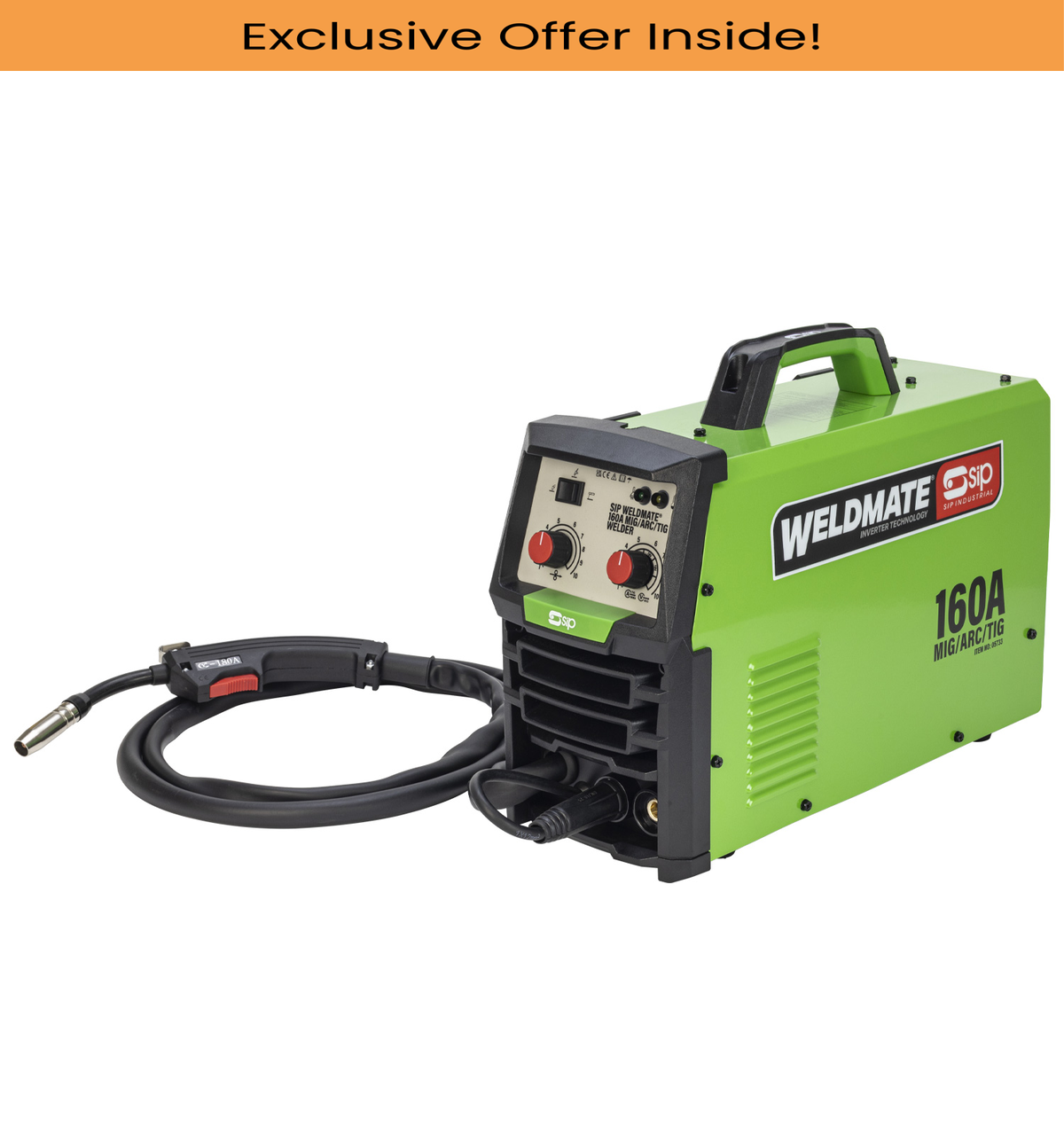

| ITEM NO | 05733 |
|---|---|
| Input Supply | 230v (16A) |
| Welding Process | MIG |
| Output Voltage | 15v - 22v |
| Output Current | 20A - 160A |
| Duty Cycle @ 40°C | 160A @ 15% |
|
|
|
| Welding Process | ARC |
| Output Voltage | 20.8v - 25.6v |
| Output Current | 20A - 140A |
| Duty Cycle @ 40°C | 140A @ 15% |
|
|
|
| Welding Process | TIG |
| Output Voltage | 10.8v - 15.6v |
| Output Current | 20A - 140A |
| Duty Cycle @ 40°C | 140A @ 15% |
|
|
|
| Wire Diameter | ⌀ 0.8mm - 0.9mm |
| Wire Spool Size | 0.7kg, 5kg |
| Welding Material Thickness | 0.8mm - 6mm |
| Protection / Insulation | 21S / H |
| Net Weight | 8.10kg |
| Gross Weight | 9.30kg |
| Product Dimensions | 310(H) x 170(W) x 340mm(D) |
| Packaged Dimensions | 342(H) x 280(W) x 465mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Quick delivery and the product at a very competitive price.
Highly Recommend
I ordered a starter motor for my Polaris ranger, best price around and prompt service.
thanks for sending the part so quickly, and was just the job
1st class,excellent service.
Excellent service
You stock the parts that I needed and delivered quickly and efficiently.
Worth the Money
Strong and Excellent Quality.
10 out of 10 from me!
Great price.
Great delivery.
Very easy transaction the machine arrived on time and well packaged,
Absolutely spot on!
Excellent website, easy ordering, great price, speedy delivery and an excellent machine at an excellent price!
Thanks very much!!
Great service with speedy delivery, easy ordering system and great during & after service support.
Rating
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Offer Available
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | 05731 | 05737 | 70050 |

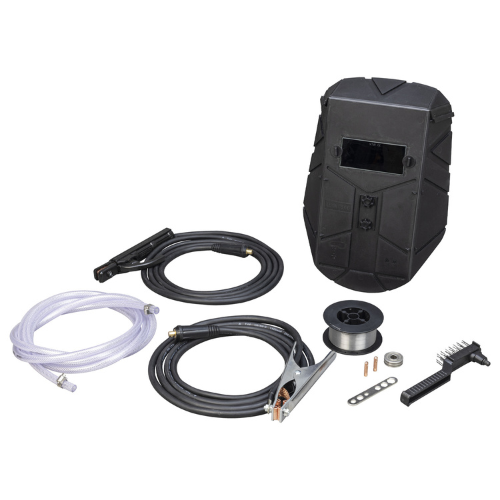

A. Includes:
A. Designed with entry-level users in mind, yet powerful and flexible enough for small workshop applications.
A. Yes, it includes a SIP 2-Year Standard Silver Warranty.
A. Yes, it supports both gas and gasless MIG welding, offering greater flexibility.
A. The duty cycle is 160A @ 15% (MIG) and 140A @ 15% (ARC/TIG) at 40°C.

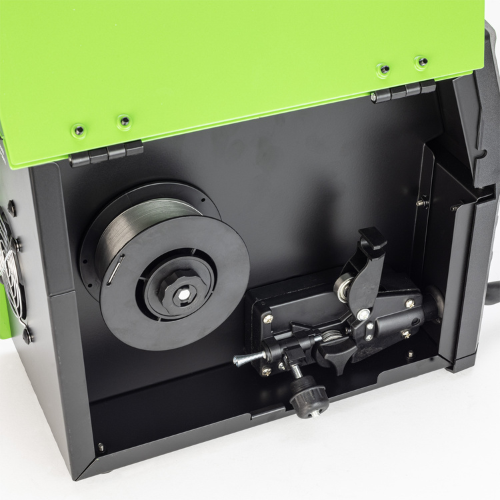

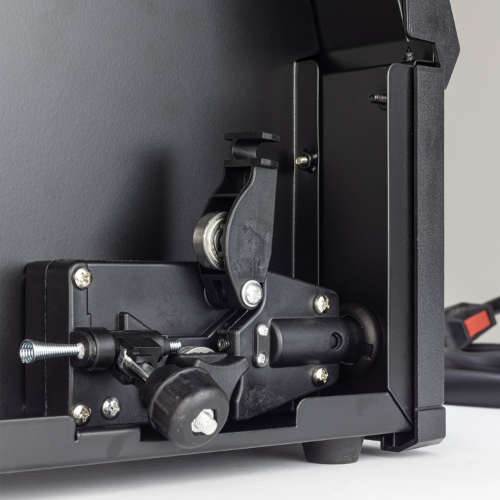

A. Supplied with interchangeable feed rollers for solid and flux-cored wire. Compatible with 0.7kg and 5kg welding wire spools.
Wire Diameter - ⌀ 0.8mm - 0.9mm
A. This welder operates on 230V / 16A supply, not suitable for a standard 13A plug.
A. Yes, it's a multi-process welder that supports MIG, ARC, and TIG.
