Product Number: 08255
Variations

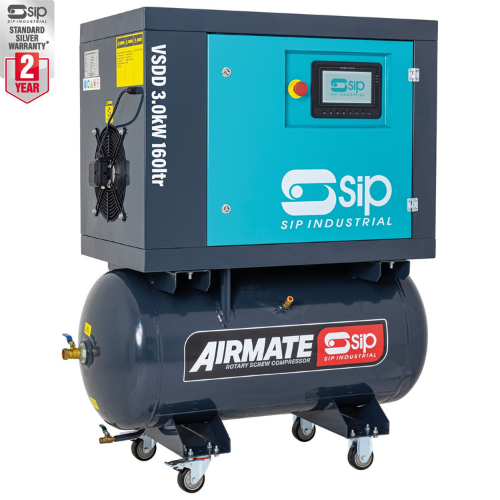

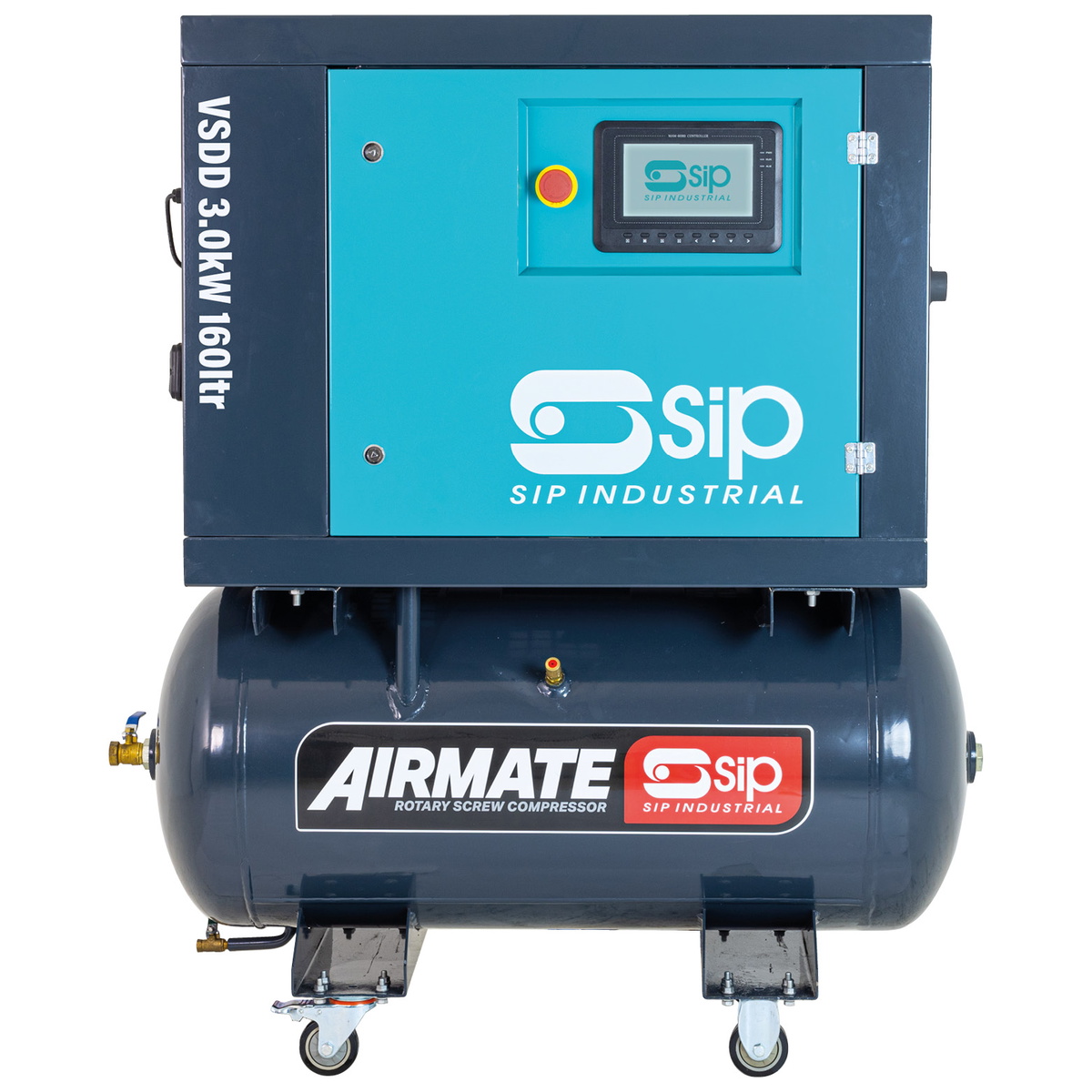

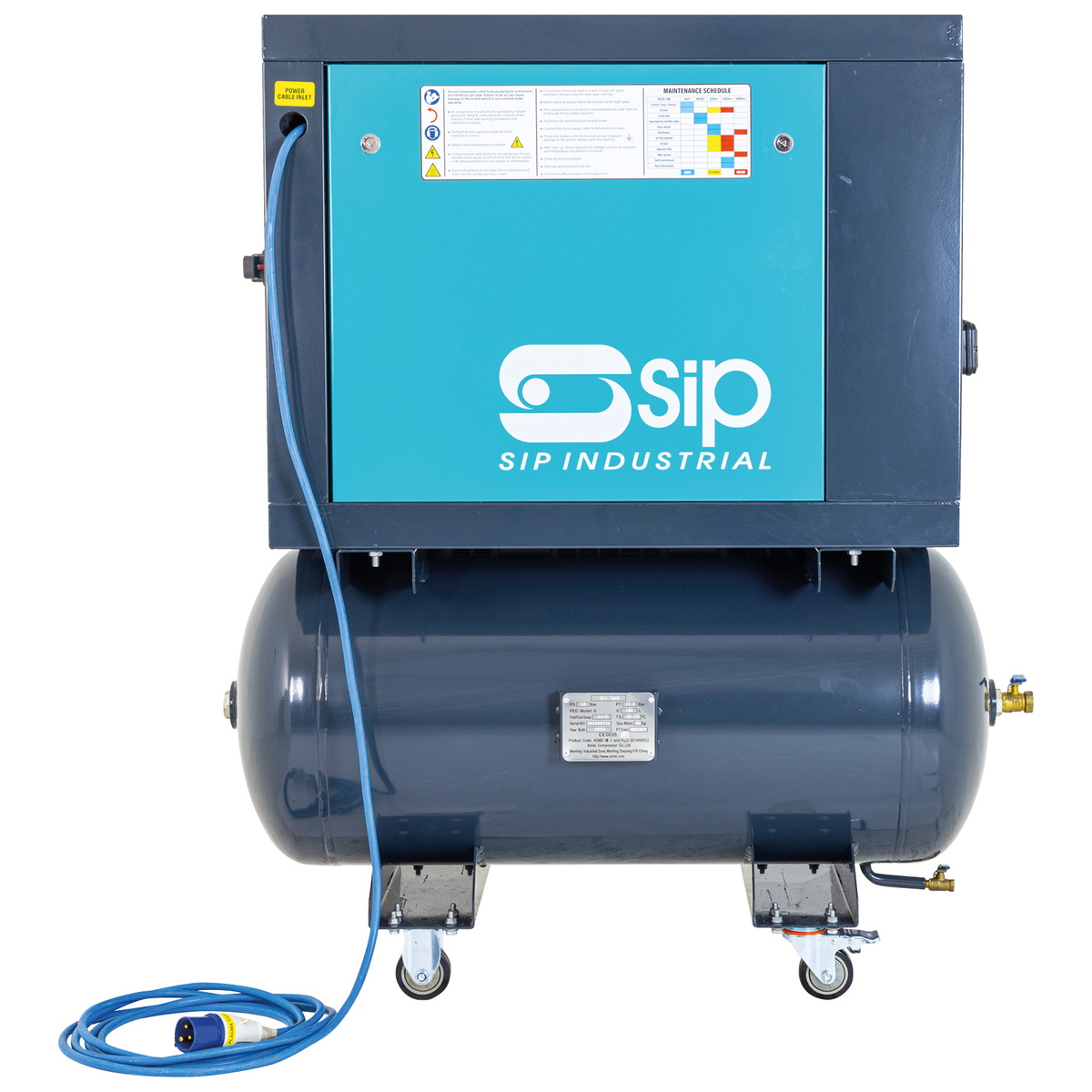

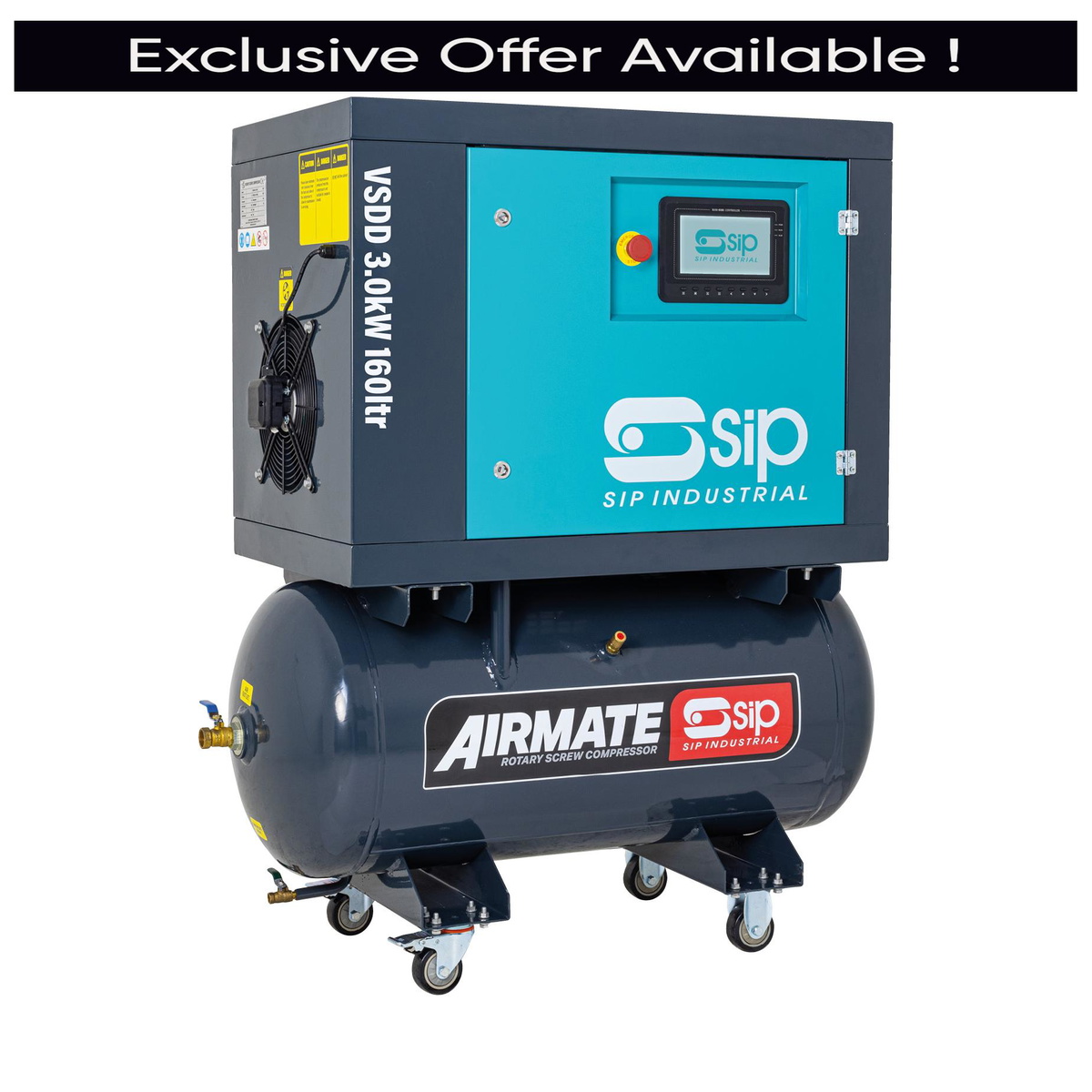

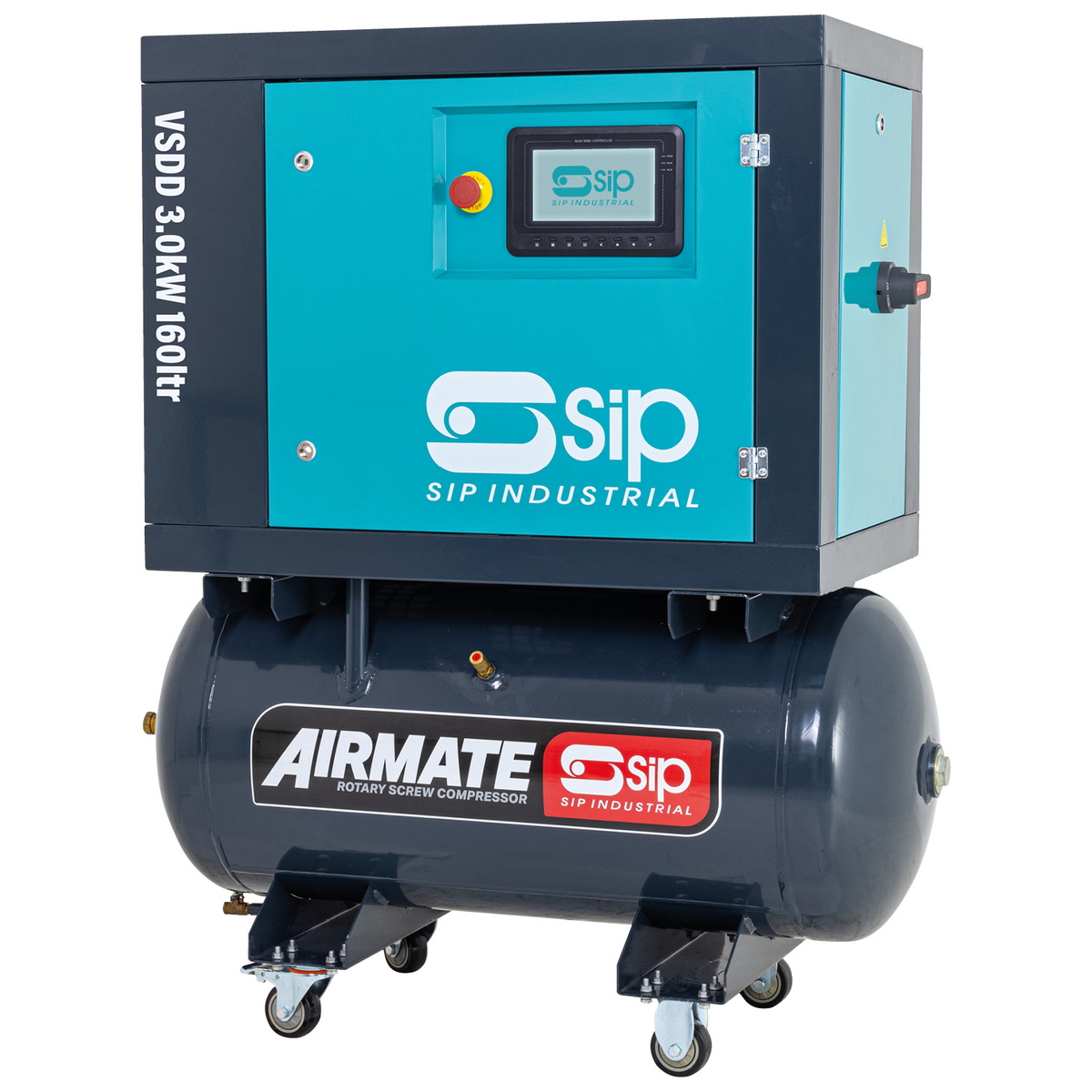

SIP 08255 VSDD Rotary Screw Compressor 3kW 160ltr 8 Bar is a variable speed, direct drive unit for workshops requiring flexible 8bar compressed air with improved energy efficiency. A 3kW (4hp) IE4 motor on 230v 32A powers twin parallel rotary screws, delivering 13CFM (380ltr/min) Free Air Delivery at up to 116psi (8bar) into a 160ltr receiver. Direct drive eliminates belt slip and associated power losses, while inverter soft-start and slope-down functions provide smooth torque ramp-up and controlled load reduction as the receiver reaches pressure. This on-demand air production adjusts to match real-time usage, helping to reduce mechanical wear and electricity consumption. A silenced cabinet operates at approximately 65dB(A), and a colour touchscreen interface offers real-time diagnostics including receiver pressure, motor voltage, internal temperature and load status. With easy-access service panel and compact wheel-mounted chassis, this VSDD compressor suits automotive, engineering and agricultural workshops looking for a quiet, energy-smart 8bar air system.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 08255 |
|---|---|
|
Input Supply 230v (32A)
|
|
| Rated Input | 3.7kW |
| Motor Power | 3kW (4hp) |
| IE4 Motor | Yes |
| Max. Pressure | 116psi (8bar) |
| Free Air Delivery (FAD) | 13CFM (380ltr/min) |
| Receiver Size | 160ltr |
| Cooling Type | Fan Cooled |
| Transmission Type | Direct Drive |
| Start-Up Mode | Inverter Soft Start |
| Refrigerated Dryer | N/A |
| Outlet Connector | 3/4" BSPP |
| Noise Level | 65dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05375 RS2.2-10-200BD 230v Rotary Screw Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£3,137.50
£3,075.98
2% OFF
Free delivery in Channel Island
|
Fini Mini CUBE 2.208-90 Screw Compressor, 2.2 kW, 8 Bar, 10.3 CFM
£2,603.70
£2,552.65
2% OFF
Free delivery in UK Mainland
|
SIP 05372A MECH 4.0-08-200 Screw Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 8 Bar
£3,538.70
£3,469.31
2% OFF
Free delivery in Channel Island
|
SIP 05378A TRONIC 4.0-08-200ES Screw Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 8 Bar
£4,053.33
£3,973.85
2% OFF
Free delivery in Channel Island
|
TIGREN DD 4kW 270ltr Screw Compressor
£3,744.82
£3,671.39
2% OFF
Free delivery in Channel Island
|
Clarke CXR20RD 65.3cfm 500 Litre 20HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£6,657.18
£6,526.65
2% OFF
Free delivery in UK Mainland
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
Fini MICRO 410-200 (With Controller) Screw Compressor, 4 kW, 200 Litre, 10 Bar, 17.1 CFM
£3,452.92
£3,385.22
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05375 | F-V72PC60FNM001 | 05372A | 05378A | 08220 | 2456600 | 2456290 | F-V77JP92FNMA01 |
| Input Supply | 230 | 230 | 400 | 400 | 400 | 400 | 230 | |
| Motor Power | 2200 | 4 | 2200 | 4000 | ||||
| Warranty | 12 | 12 | ||||||
| Phase | 3 | 3 | 3 | |||||
| Maximum Pressure (bar) | 0 | 8 | 8 | 0 | 10 | 10 | 10 | |
| Free AirDelivery (FAD) | 0 | 20.5 | 0 | 65.3 | 8.5 | |||
| Tank Size | 0 | 90 | 0 | 0 | 500 | 200 | 200 | |
| Noise Level | 0 | 65 | 60 | 0 | 63 | 70 | 0 | 60 |
| Maximum Pressure (psi) | 0 | 116 | 116 | 0 | 0 | 145 | 145 | |
| Air displacement | 10.3 | 17.1 | ||||||
| Show More | ||||||||
A. It is a 3kW, 4hp variable speed direct-drive screw compressor with 160ltr receiver, 13CFM FAD and 8bar maximum pressure at 230v.
A. It delivers approximately 13CFM free air, around 380 litres per minute, suitable for higher-demand small workshops needing continuous 8bar air.
A. Positive gearless transmission via twin rotary screws reduces slippage, minimises maintenance, improves efficiency and increases machine reliability compared with belt-driven systems.
A. The inverter-controlled motor matches air production to demand, reducing energy usage, lowering mechanical stress and providing smooth soft-start and slope-down operation.
A. It is ideal for small to medium automotive, industrial and agricultural workshops where multiple users may draw 8bar air intermittently.
A. The silenced cabinet and fan cooling keep noise around 65dB(A), making it suitable for indoor installation without excessive disturbance.
A. It stores a larger volume of compressed air, helping to maintain stable pressure, support short peaks and reduce compressor cycling.
A. Operators can view compressor operation and load status, receiver pressure, motor voltage and internal temperature in an easy-to-read diagnostic interface.

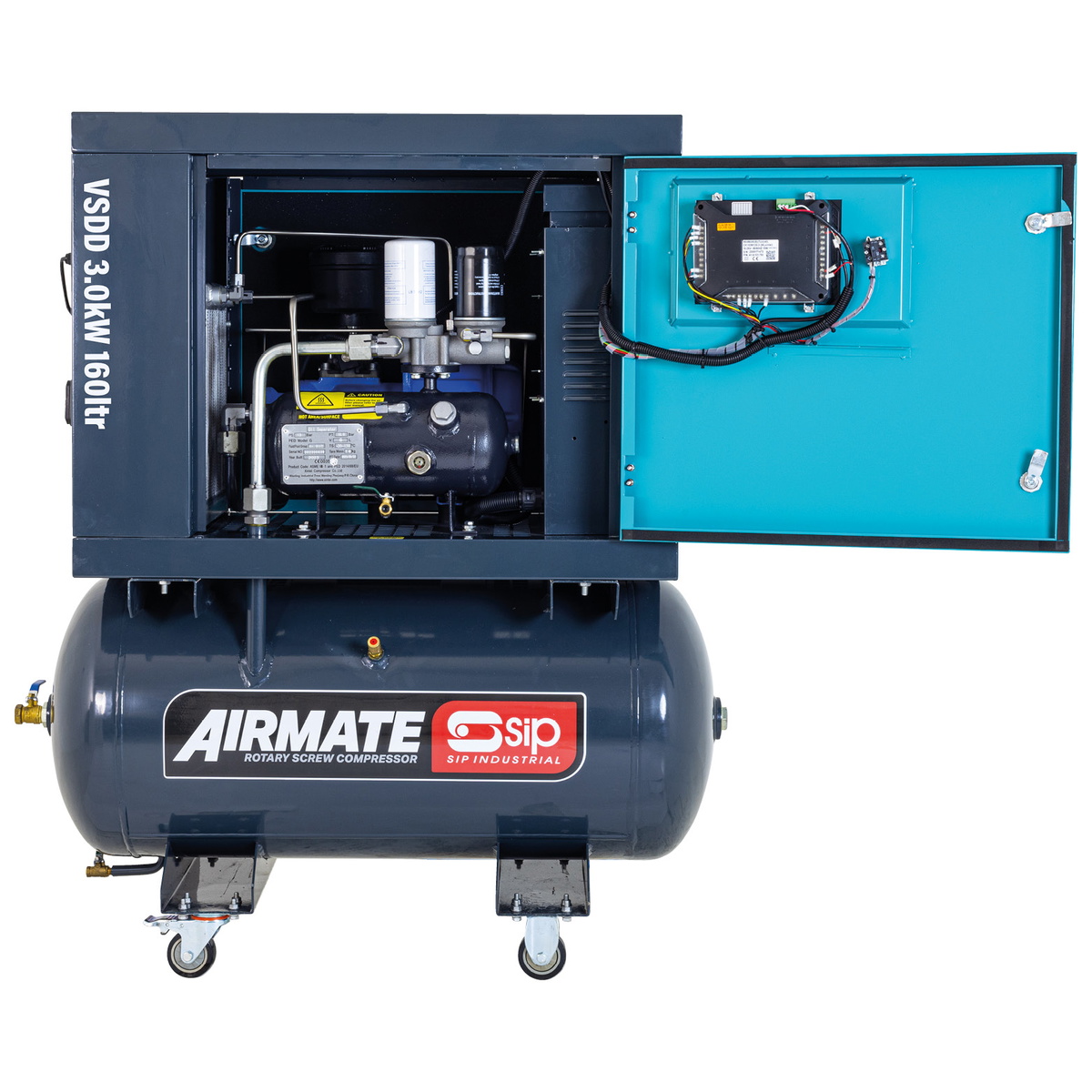

A. A single access panel exposes all critical components, so scheduled services at annual or 2000 loading-hour intervals can be carried out quickly.
A. It requires a 230v, 32A single-phase supply, reflecting its 3kW motor and inverter control requirements.
A. The IE4 motor ensures high electrical efficiency, helping reduce overall energy costs for continuous compressed-air production.
