Product Number: 08252
Variations

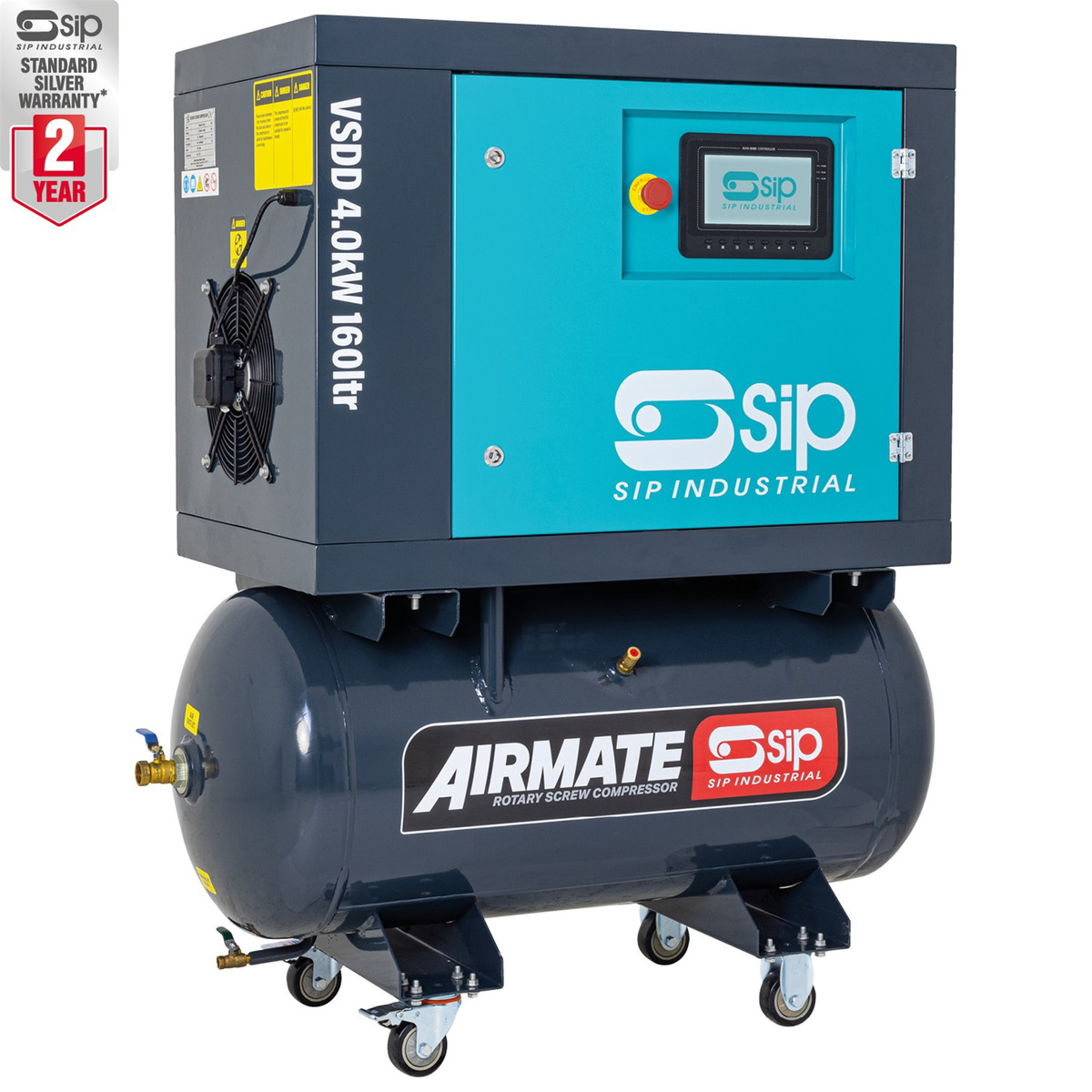

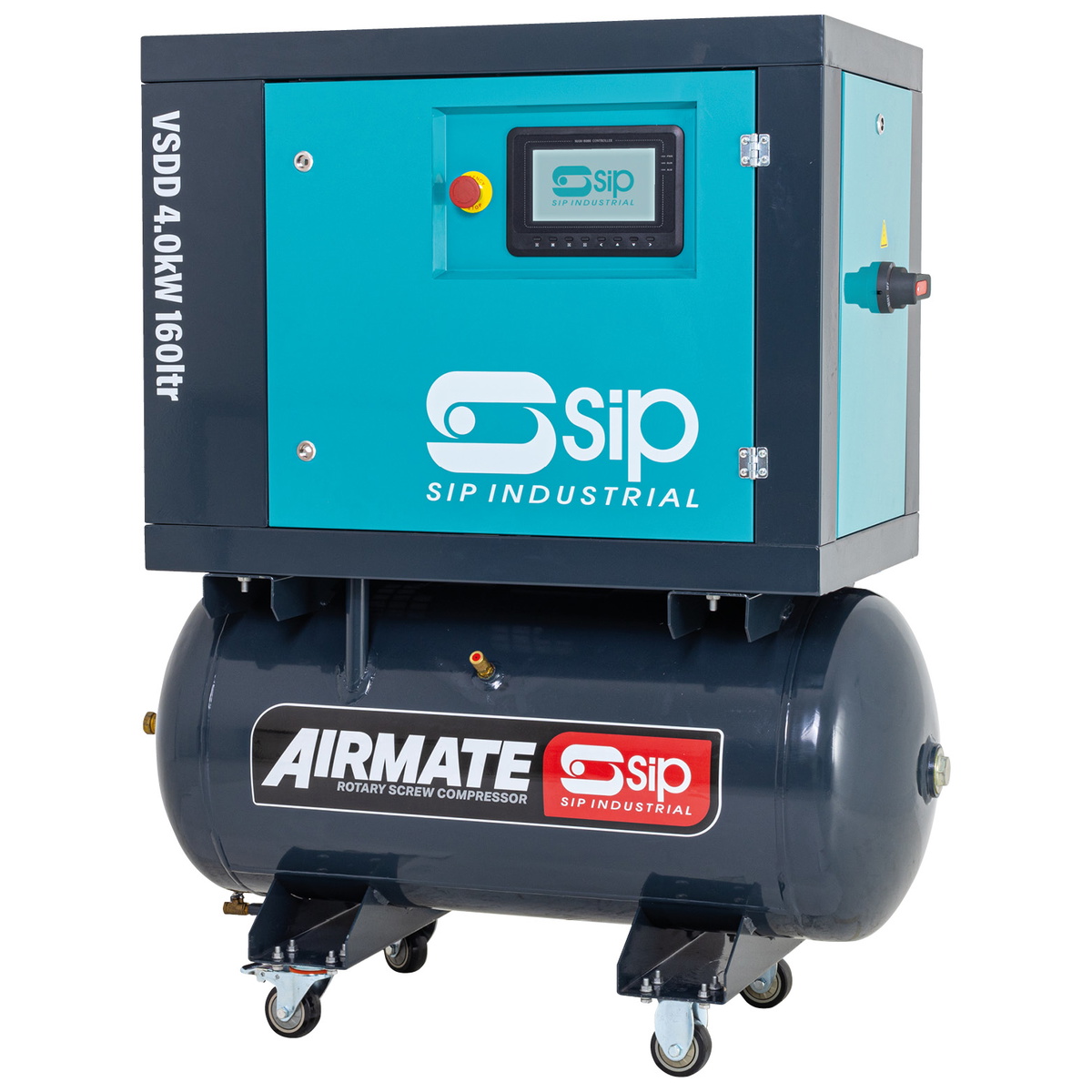

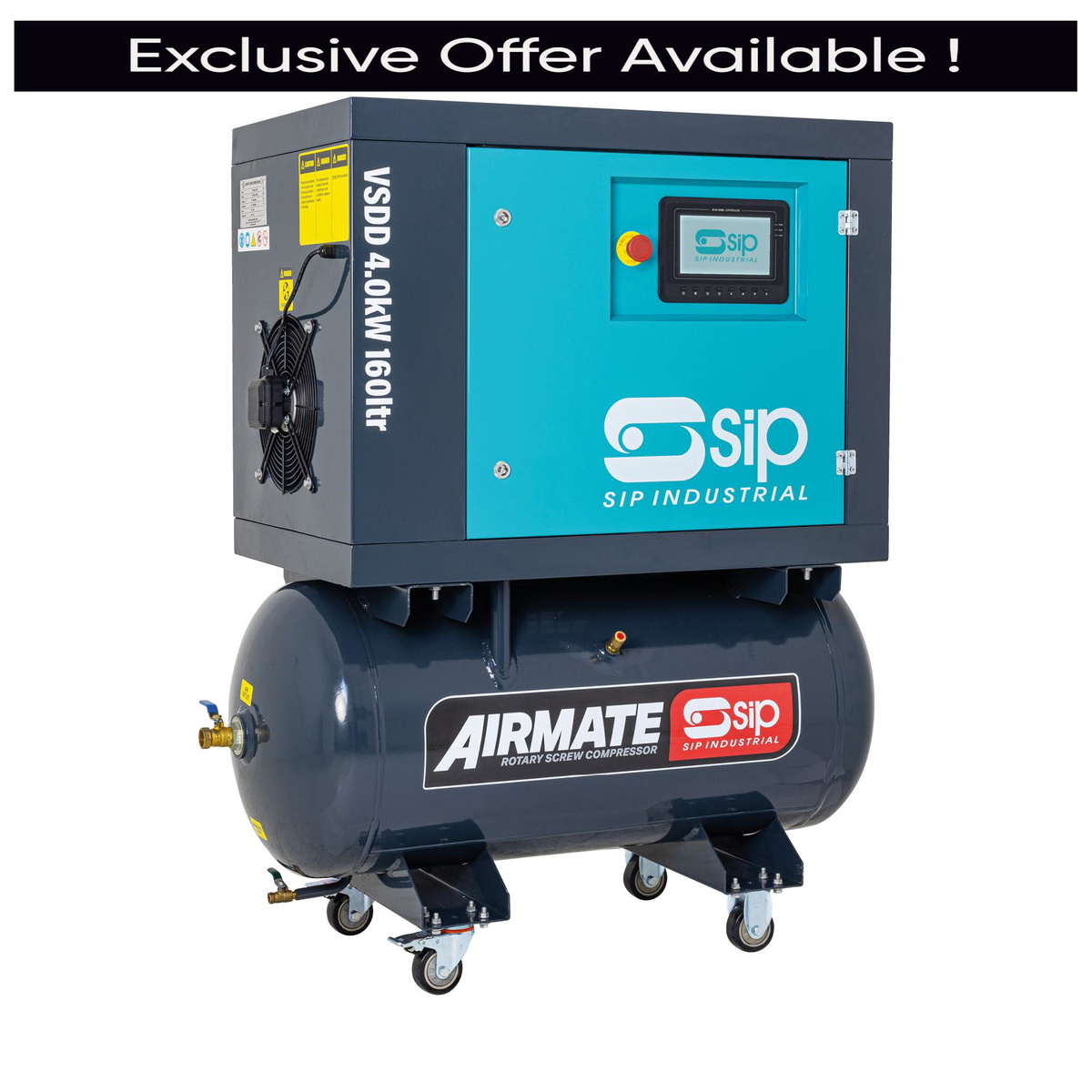

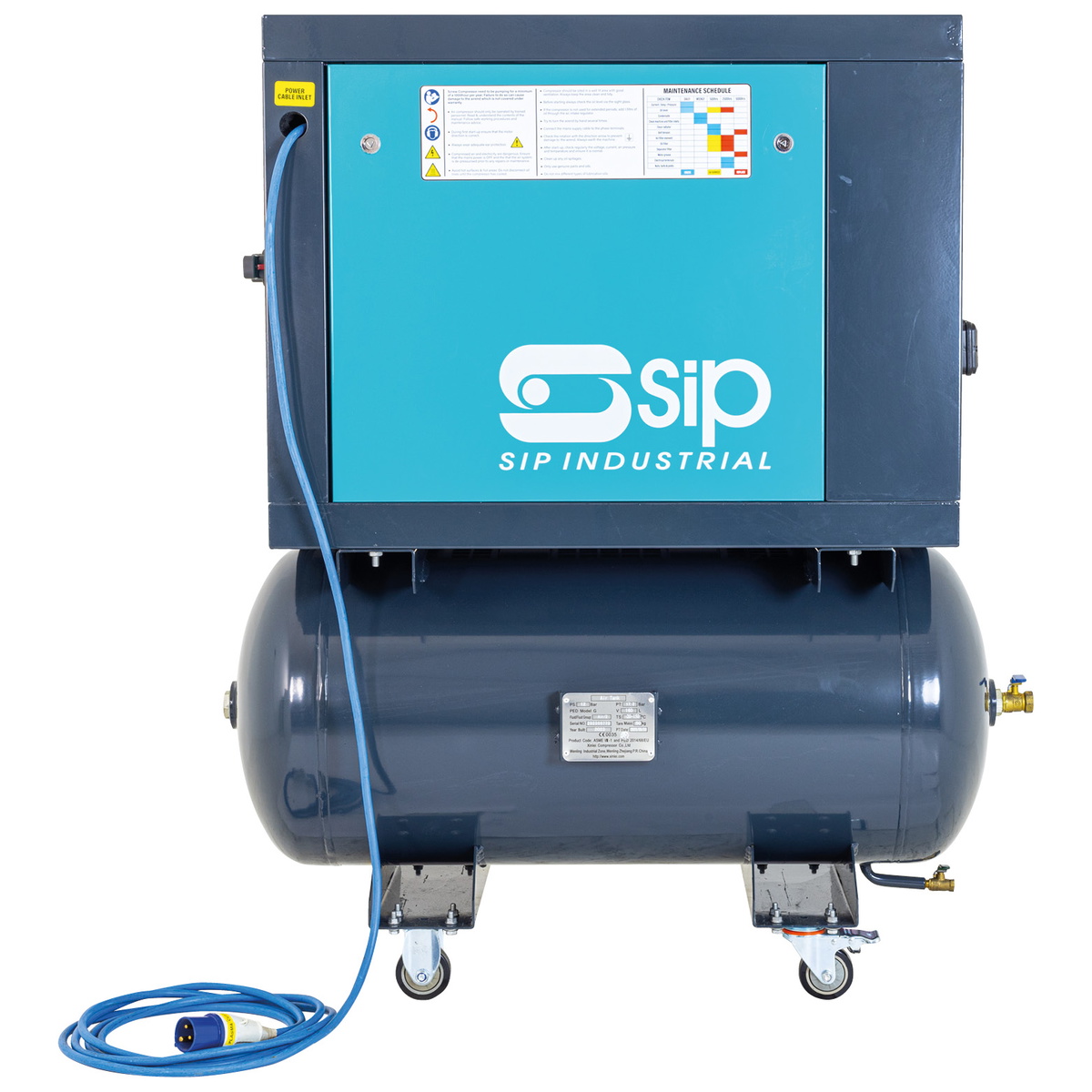

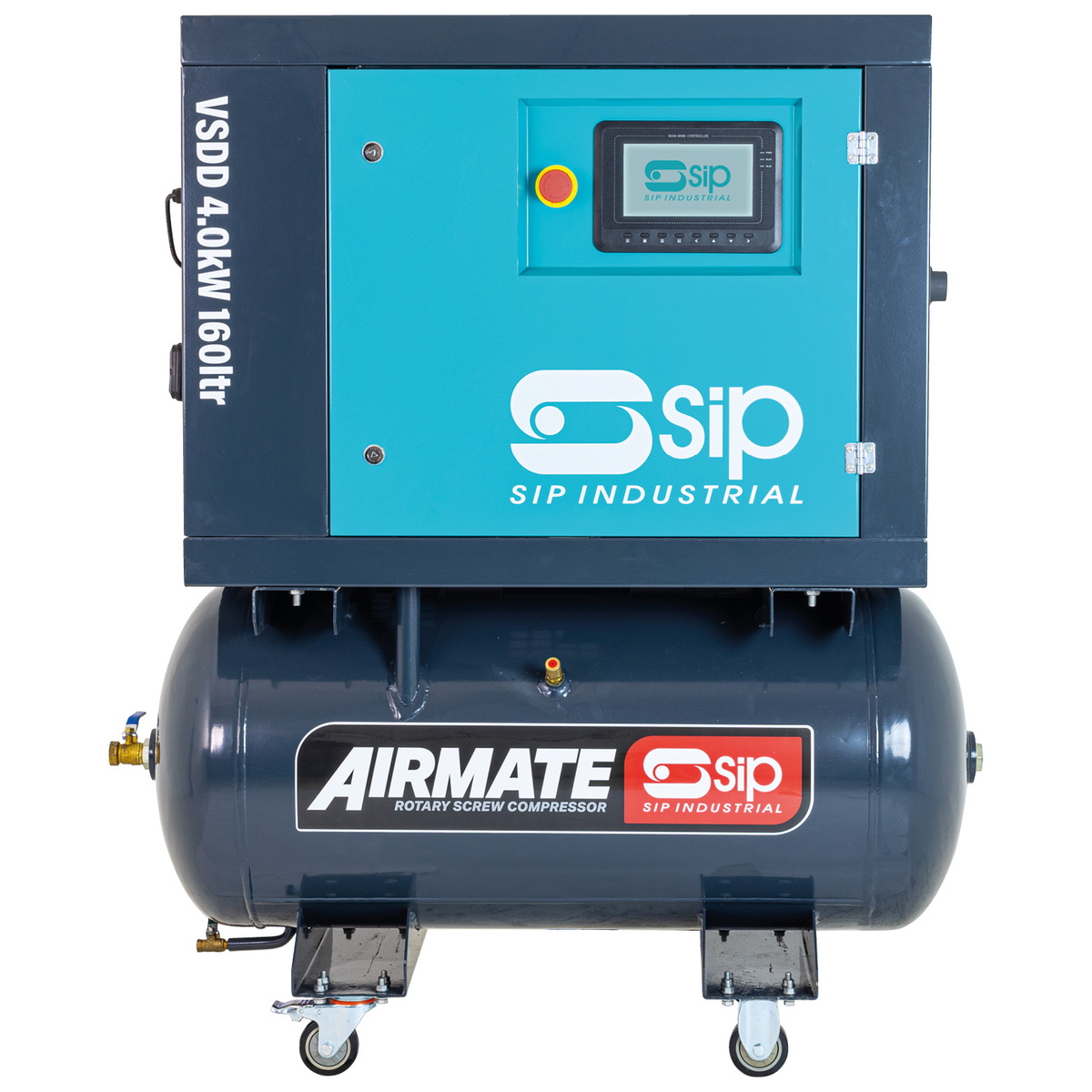

SIP 08252 VSDD Rotary Screw Compressor 4kW 160ltr 10 Bar is a higher-output variable speed direct drive screw unit for workshops requiring more airflow from a 230V supply. A 4kW (5hp) IE4 motor on 230v 32A drives precision twin parallel rotary screws, delivering 16CFM (450ltr/min) Free Air Delivery at up to 145psi (10bar) into a 160ltr receiver. Direct drive transmission provides efficient power transfer without belts, reducing maintenance and energy losses. Inverter-based motor control offers soft-start and slope-down operation, distributing torque evenly at start-up and reducing load as the tank reaches pressure, while adjusting air production to demand for greater versatility and reduced wear. A heavy-duty silenced cabinet (around 65dB(A)) minimises noise, and a colour touchscreen display supplies real-time diagnostics including pressure, temperature, voltage and load status. With easy access for servicing and a compact wheel-mounted design, this VSDD compressor is ideal for small to medium workshops that need efficient, quiet 10bar air with smarter control.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 08252 |
|---|---|
|
Input Supply 230v (32A)
|
|
| Rated Input | 4.7kW |
| Motor Power | 4kW (5hp) |
| IE4 Motor | Yes |
| Max. Pressure | 145psi (10bar) |
| Free Air Delivery (FAD) | 16CFM (450ltr/min) |
| Receiver Size | 160ltr |
| Cooling Type | Fan Cooled |
| Transmission Type | Direct Drive |
| Start-Up Mode | Inverter Soft Start |
| Refrigerated Dryer | N/A |
| Outlet Connector | 3/4" BSPP |
| Noise Level | 65dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05375 RS2.2-10-200BD 230v Rotary Screw Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£3,137.50
£3,075.98
2% OFF
Free delivery in Channel Island
|
Fini MICRO SE 310 (No Controller) Screw Compressor, 3 kW, 10 Bar, 13.6 CFM
£2,638.84
£2,587.10
2% OFF
Free delivery in UK Mainland
|
SIP 05374 Mercury Mech4.0-10-200 Screw Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£3,538.70
£3,469.31
2% OFF
Free delivery in Channel Island
|
SIP 06274 TRONIC 4.0-10-200ES Screw Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£4,149.75
£4,068.38
2% OFF
Free delivery in Channel Island
|
TIGREN DD 4kW 270ltr Screw Compressor
£3,744.82
£3,671.39
2% OFF
Free delivery in Channel Island
|
TIGREN DD 5.5kW 270ltr Screw Compressor
£3,873.95
£3,797.99
2% OFF
Free delivery in Channel Island
|
Clarke CXR20RD 65.3cfm 500 Litre 20HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£6,657.18
£6,526.65
2% OFF
Free delivery in UK Mainland
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05375 | F-V51JQ72FNM760 | 05374 | 06274 | 08220 | 08221 | 2456600 | 2456290 |
| Input Supply | 230 | 400 | 400 | 400 | 400 | 400 | 230 | |
| Motor Power | 3000 | 4 | 4 | 2200 | ||||
| Warranty | 24 | 24 | 12 | 12 | ||||
| Phase | 3 | 3 | 3 | |||||
| Maximum Pressure (bar) | 0 | 10 | 10 | 10 | 10 | 10 | ||
| Free AirDelivery (FAD) | 0 | 17 | 17 | 65.3 | 8.5 | |||
| Tank Size | 0 | 0 | 0 | 500 | 200 | |||
| Noise Level | 0 | 59 | 60 | 60 | 63 | 68 | 70 | 0 |
| Maximum Pressure (psi) | 0 | 145 | 145 | 145 | 0 | 145 | ||
| Air displacement | 13.6 | |||||||
| Show More | ||||||||
A. It is a 4kW, 3hp variable speed direct-drive screw compressor with 160ltr receiver, 16CFM free air delivery and 10bar maximum pressure, running from 230v single-phase.
A. The IE4 motor improves efficiency, lowers energy consumption and, together with inverter control, delivers smooth soft-start and slope-down operation for reduced mechanical stress and extended service life.
A. The 160ltr receiver safely stores high volumes of compressed air, helping maintain stable flow during demand peaks and supporting continuous use in busy small-to-medium workshops.
A. Precision twin parallel rotary screws provide positive direct drive, eliminating belt slippage, reducing maintenance, lowering power losses and improving long-term reliability versus belt-driven compressors.
A. The inverter adjusts motor speed to match air demand, delivering on-demand air production which reduces unnecessary running, lowers power costs and ensures even torque distribution when loading.
A. It is ideal for small to medium workshops, including automotive, engineering and agricultural settings, where continuous 10bar air and efficient energy usage are important.
A. The heavy-duty silenced cabinet and fan-cooled design keep noise around 65dB(A), making it suitable for installation inside workshops without excessive acoustic disturbance.
A. The intuitive display presents real-time status including operating mode, load status, receiver pressure, motor voltage and internal temperature, supporting proactive monitoring and fault diagnosis.

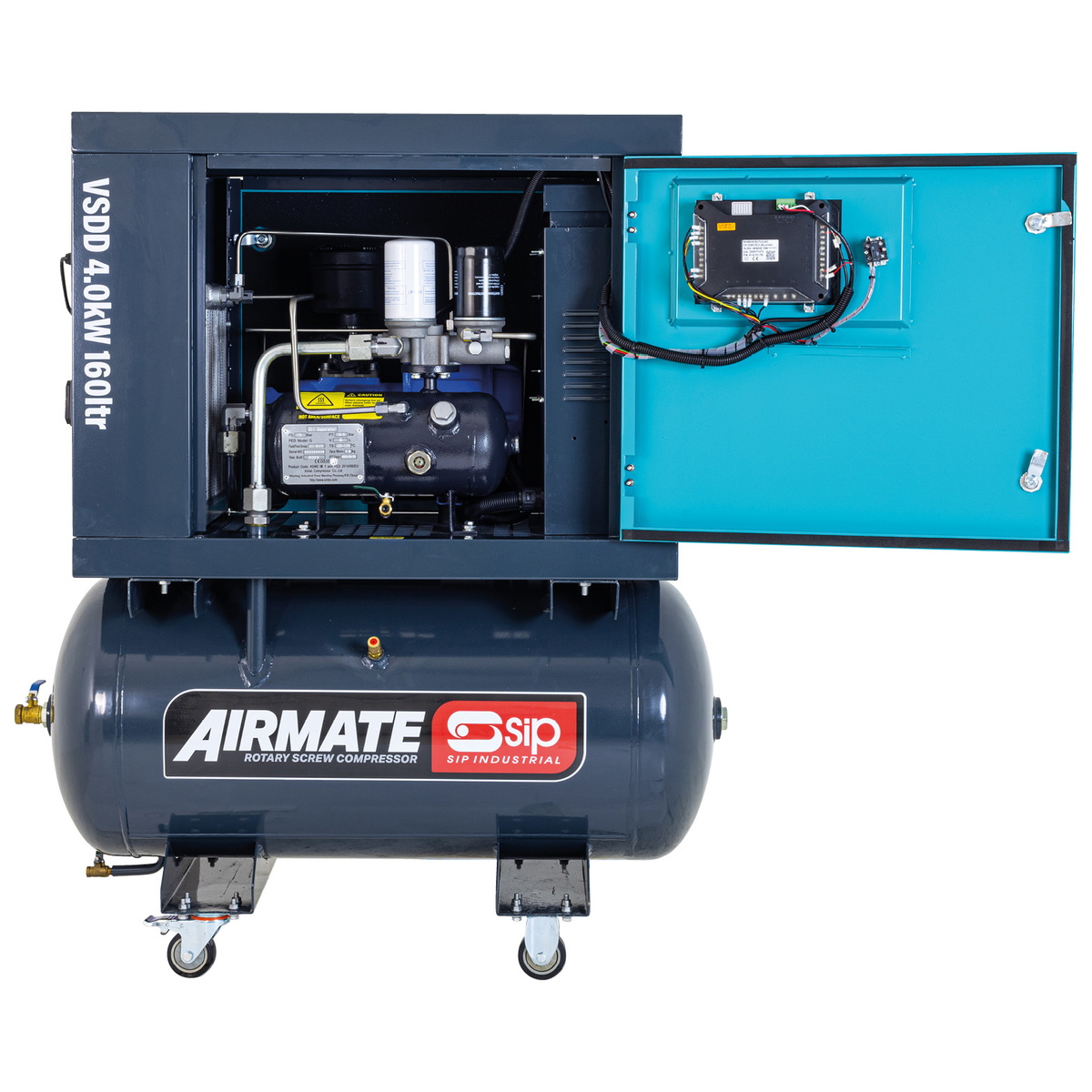

A. All critical components are accessible via a single cabinet panel, helping technicians perform annual or 2000 loading-hour services quickly and minimise compressed-air downtime.
A. It needs a 230v, 32A single-phase electrical feed, making screw compressor technology available where only single-phase power is installed.
A. Soft-start limits inrush current and gradually ramps motor speed, reducing electrical stress, shaft shock and wear on rotating components, especially during frequent start-stop cycles.
