Product Number: 08257
Variations
SIP 08257 VSDD Rotary Screw Compressor 5.5kW 160ltr 8 Bar is a higher-output variable speed, direct drive compressor for workshops with greater air demand. Its 5.5kW (7hp) IE4 motor on 230v (64A) directly drives twin parallel rotary screws, providing 25CFM (720ltr/min) Free Air Delivery at up to 116psi (8bar) into a 160ltr receiver. Direct drive transmission avoids belt losses, increasing efficiency and reliability while lowering maintenance. The integrated inverter offers soft-start and slope-down modes to distribute torque evenly on start-up and reduce load as pressure builds, dynamically matching air production to real-time demand and helping extend machine life. A heavy-duty silenced cabinet keeps noise at about 65dB(A), and an intuitive colour touchscreen shows live diagnostics such as pressure, motor voltage, internal temperature, load and operating hours. Easy access through a single cabinet panel streamlines servicing. With its compact, wheel-mounted all-in-one design, this VSDD compressor is ideal for automotive, engineering and agricultural workshops requiring quiet, energy-efficient 8bar compressed air.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 08257 |
|---|---|
|
Input Supply 230v (64a)
|
|
| Rated Input | 7kW |
| Motor Power | 5.5kW (7hp) |
| IE4 Motor | Yes |
| Max. Pressure | 116psi (8bar) |
| Free Air Delivery (FAD) | 25CFM (720ltr/min) |
| Receiver Size | 160ltr |
| Cooling Type | Fan Cooled |
| Transmission Type | Direct Drive |
| Start-Up Mode | Inverter Soft Start |
| Refrigerated Dryer | N/A |
| Outlet Connector | 3/4" BSPP |
| Noise Level | 65dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05375 RS2.2-10-200BD 230v Rotary Screw Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£3,137.50
£3,075.98
2% OFF
Free delivery in Channel Island
|
Fini MICRO 408 Screw Compressor, 4 kW, 8 Bar, 20 CFM
£3,072.41
£3,012.17
2% OFF
Free delivery in UK Mainland
|
SIP 08258 VSDD Rotary Screw Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 8 Bar
£3,512.38
£3,443.51
2% OFF
Free delivery in Channel Island
|
SIP 08260 VSDD Rotary Screw Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar
£3,512.38
£3,443.51
2% OFF
Free delivery in Channel Island
|
Clarke CXR20RD 65.3cfm 500 Litre 20HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£6,657.18
£6,526.65
2% OFF
Free delivery in UK Mainland
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
TIGREN DD 5.5kW 270ltr Screw Compressor
£3,873.95
£3,797.99
2% OFF
Free delivery in Channel Island
|
Fini PLUS 815-270 Screw Compressor, 7.5 kW, 270 Litre, 15 Bar, 23.7 CFM
£5,064.15
£4,964.85
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05375 | F-V51JR92FNMA60 | 08258 | 08260 | 2456600 | 2456290 | 08221 | F-V91NI92FNM901 |
| Input Supply | 230 | 400 | 230 | 400 | ||||
| Motor Power | 4000 | 2200 | 7500 | |||||
| Warranty | 12 | 12 | ||||||
| Phase | 3 | 3 | ||||||
| Maximum Pressure (bar) | 0 | 8 | 0 | 0 | 10 | 10 | 15 | |
| Free AirDelivery (FAD) | 0 | 0 | 0 | 65.3 | 8.5 | |||
| Tank Size | 0 | 0 | 0 | 500 | 200 | 270 | ||
| Noise Level | 0 | 60 | 0 | 0 | 70 | 0 | 68 | 68 |
| Maximum Pressure (psi) | 0 | 116 | 0 | 0 | 0 | 145 | 218 | |
| Air displacement | 20 | 23.7 | ||||||
| Show More | ||||||||
A. It is a 5.5kW, 7hp variable speed direct-drive screw compressor with 160ltr receiver, 25CFM FAD and 8bar maximum pressure at 230v.
A. It supplies approximately 25CFM free air, or 720 litres per minute, ideal for higher demand 8bar uses in multi-operator workshops.
A. Gearless twin screw drive avoids belt slip, improves mechanical efficiency, reduces component stress and cuts maintenance compared with belt-driven designs.
A. The inverter-driven motor automatically adjusts speed based on demand, ensuring efficient air production, gentler starting and reduced mechanical wear.
A. It suits small to medium workshops, automotive and industrial settings where multiple operators may need reliable 8bar air simultaneously.
A. Thanks to the silenced cabinet, the compressor operates at around 65dB(A), relatively quiet for a 5.5kW screw machine.
A. The large receiver supports stable pressure and handles demand spikes, enabling smoother operation across diverse tools and processes.
A. Users can view operation and load status, receiver pressure, motor voltage and internal temperature in real time, aiding system oversight.

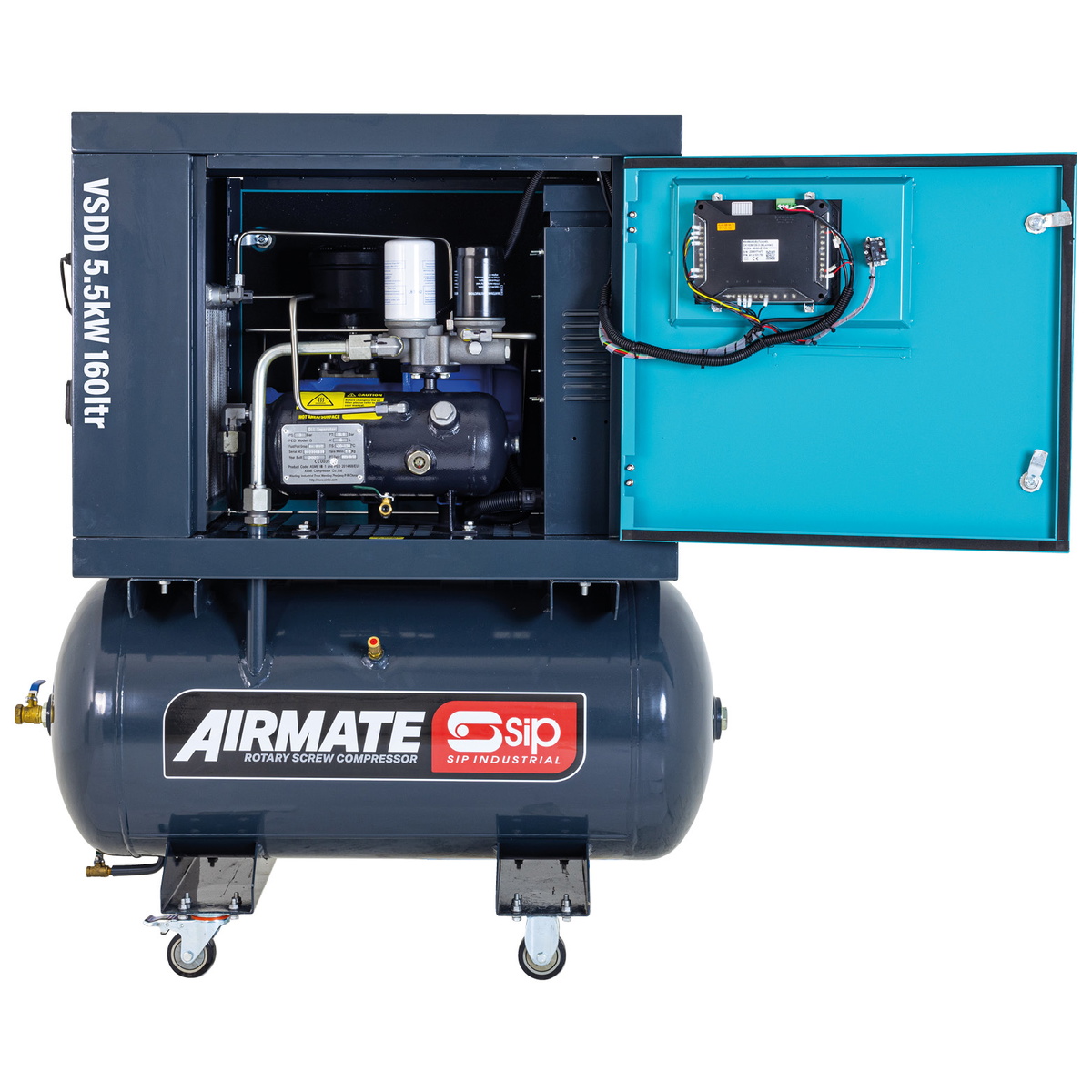

A. A single access cabinet panel exposes critical components, helping technicians perform the recommended annual or 2000 loading-hour service efficiently.
A. It uses a 230v, 64A single-phase supply, which matches the higher-rated 5.5kW IE4 motor and inverter hardware.
A. It ensures high energy efficiency, which lowers running costs and improves sustainability during continuous operation.
