Product Number: 2456600

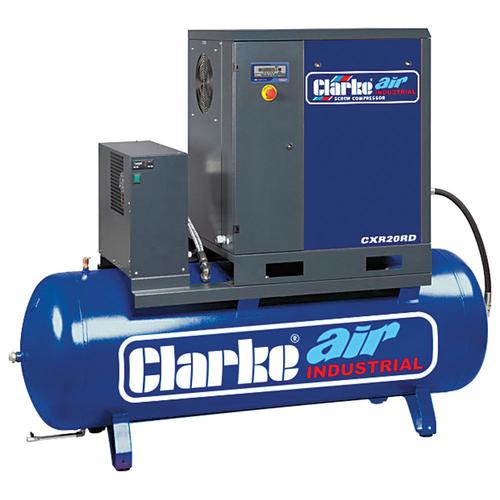

Clarke CXR20RD 65.3cfm 500 Litre 20HP Industrial Screw Compressor with Air Receiver & Dryer (400V) is a complete screw air station combining a 20HP compressor, 500L receiver and integrated refrigerant dryer. The 400V 3-phase motor (15kW) provides 65.3cfm free air at up to 10bar (145psi), while the pre-connected dryer uses environmentally safe R407c refrigerant to supply cool, dry air, with enhanced performance from cooler receiver output. Electro-pneumatic pressure saving, Poly-V belt drive and thermostatic fan control ensure efficient operation and low maintenance, with sound-reducing panels keeping noise to around 70dB(A). A multi-function backlit controller offers auto-restart after power failure, cooling fan temperature control and monitoring of key operating parameters. Oversized suction filtration helps reduce contamination and extend oil and compressor life. Pre-mounted onto the receiver and fully plumbed, the CXR20RD is a plug-in and go 10bar screw air and drying solution for large workshops and industrial users needing dry, stable compressed air.
| Free Air | 65.3 cfm |
|---|---|
| Max. Pressure | 10 Bar |
| Receiver | 500 Litres |
| Motor kW/HP | 15 (20) |
| Volts/Phase | 400/3 |
| Noise Level dB (A) | 70 |
|
Multi-function back-lit display
|
|
|
Automatic re-start after power failure
|
|
|
Cooling fan temperature control
|
|
| Dims (LWH) | 1980 x 700 x 1630mm |
| Weight | 436kg |
| Warranty | 12 Months |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 5 to 7 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Clarke CXR5RD 17.1cfm 200 Litre 5.5HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£4,376.92
£4,291.10
2% OFF
Free delivery in UK Mainland
|
Clarke CXR15RD 53cfm 270 Litre 15HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£5,772.60
£5,659.41
2% OFF
Free delivery in UK Mainland
|
Fini NEW CUBE 7.510 ES Floor Mounted Screw Compressor With Dryer, 7.5 kW, 10 Bar, 37.1 CFM
£4,267.85
£4,184.17
2% OFF
Free delivery in UK Mainland
|
Fini NEW CUBE 5.510 ES Floor Mounted Screw Compressor With Dryer, 5.5 kW, 10 Bar, 24.9 CFM
£4,153.52
£4,072.08
2% OFF
Free delivery in UK Mainland
|
Fini NEW CUBE 410 ES Floor Mounted Screw Compressor With Dryer, 4 kW, 10 Bar, 16.2 CFM
£4,115.42
£4,034.73
2% OFF
Free delivery in UK Mainland
|
SIP 06430A RS11-08-500BD/RD 500ltr Rotary Screw Compressor with Dryer
£5,817.73
£5,703.66
2% OFF
Free delivery in Channel Island
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 2456555 | 2456585 | F-V51PO92FNM743 | F-V51PE92FNM543 | F-V51PD92FNM543 | 06430A |
| Warranty | 12 | 12 | ||||
| Type | With Dryer | With Dryer | With Dryer | With Dryer | With Dryer | With Dryer |
| Capacity (L) | 200 | 270 | 500 | |||
| Drive Size (Inch) | 1/2 | 1/2 | 1/2 | 3/4 | ||
| Maximum Pressure (bar) | 10 | 10 | 10 | 8 | ||
| Power (kW) | 4 | 11 | 7.5 | 5.5 | 4 | 11 |
| Receiver Size | 500ltr | |||||
| Show More | ||||||
A. It is a 20HP industrial screw compressor with 500L receiver and integral dryer, delivering 65.3cfm at 10bar on 400V three-phase supply.
A. Using R407c refrigerant, it provides cool, dry air, with dryer performance enhanced by cooler receiver air, improving downstream equipment reliability.
A. The compressor delivers 65.3cfm free air at 10bar from a 15kW motor, with a 500L receiver for substantial storage.
A. It offers weekly timer programming, remote control, auto-restart after power failure, maintenance planning and detailed status via back-lit display.
A. It preserves compressed air when the compressor is not in use, reducing waste and improving energy efficiency.
A. It provides long-lasting, low-maintenance power transfer, reducing downtime and improving reliability under heavy industrial use.
A. Sound-reducing panelling helps keep noise levels down to about 70dB(A), permitting installation near work areas.
A. It ensures maximum air intake filtration, cutting maintenance and extending both oil and compressor service life.
A. It is ideal for industrial users needing a combined screw compressor, dryer and receiver package ready for plug-in operation.
A. The unit is about 1980 x 700 x 1630mm and weighs roughly 436kg, compact for its performance level.
A. It lets the compressor resume operation automatically, maintaining compressed air availability with minimal manual intervention.
