Product Number: SAC55075B

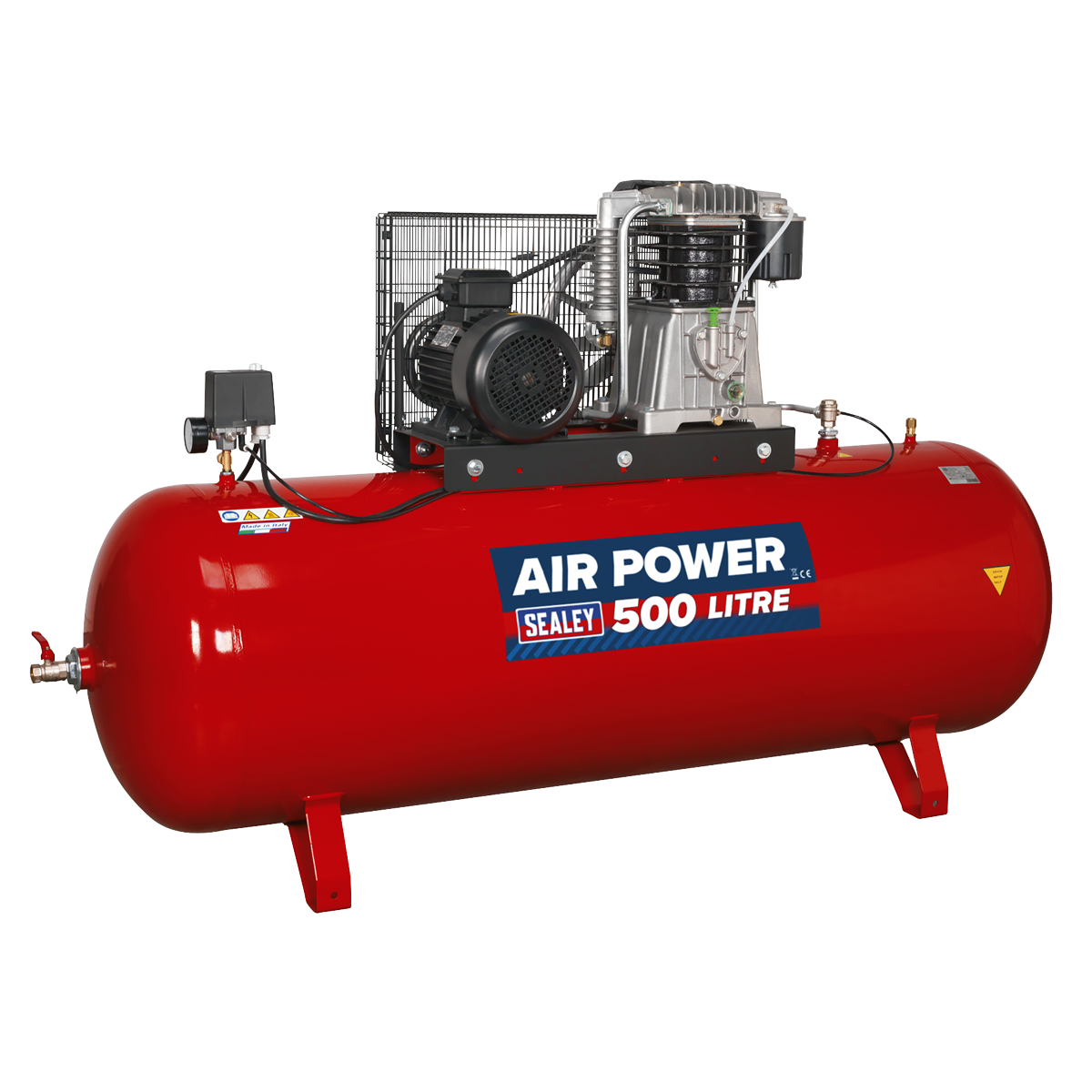

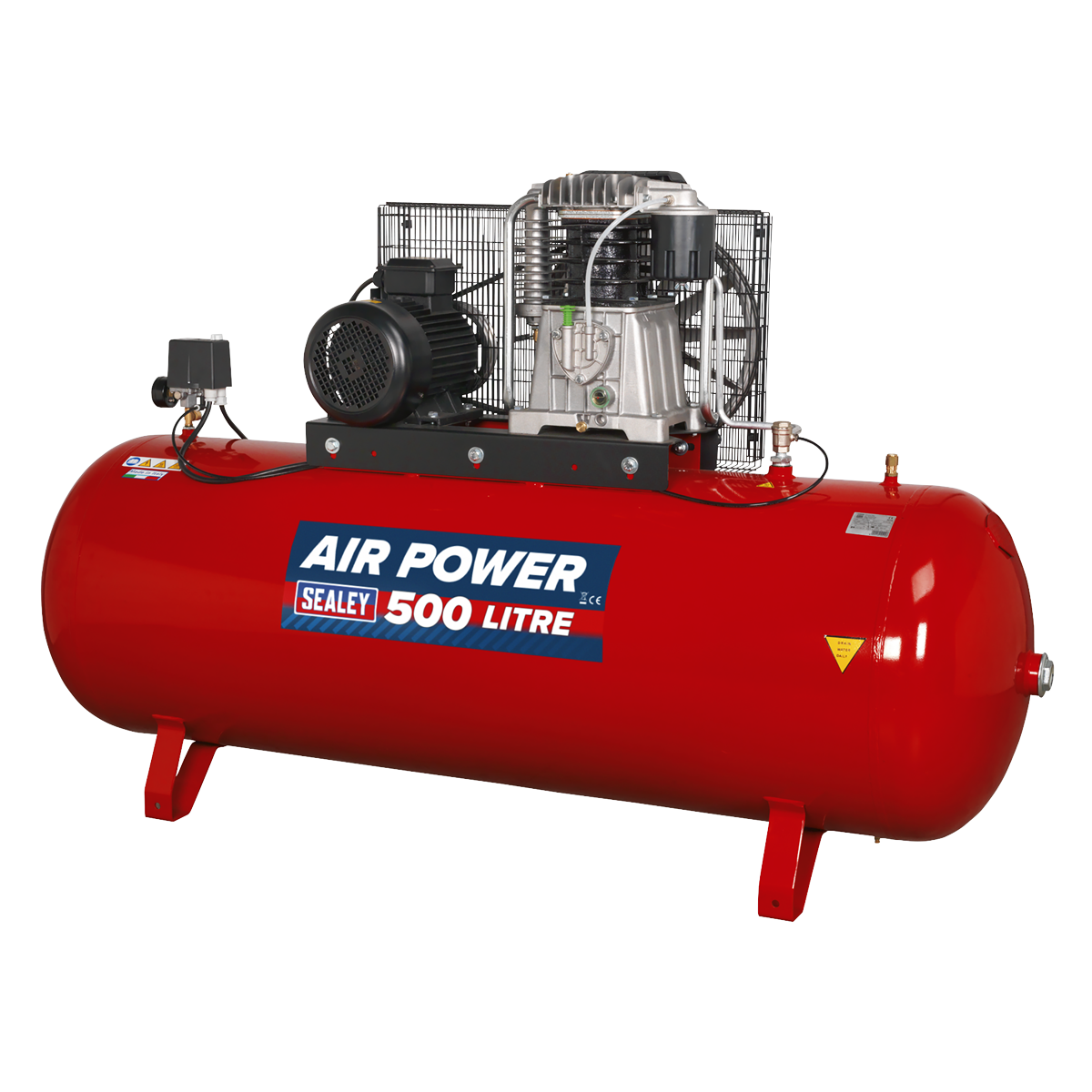

Sealey SAC55075B Air Compressor 500L Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders is a heavy-duty industrial unit for professional workshops with very high air demand. A 7.5hp three‑phase motor drives a 2‑stage pump with full cast cylinders and alloy head, delivering 29.3cfm (830L/min) air displacement and 22.6cfm (640L/min) free air delivery at up to 145psi (10bar). This efficient 2‑stage compression keeps running costs lower than comparable single‑stage models and makes it easier to maintain high pressure for extended periods. Heavy-duty drive guards protect the belt and flywheel, which is designed to force cooling air over the pump to aid heat dissipation. The large 500L receiver offers substantial storage for multiple outlets and continuous tool use. Supplied with full CE certification, test certificates and an operating/maintenance manual, this compressor is intended as a central air plant in demanding trade and light industrial environments where robust, high‑volume 3‑phase compressed air is critical.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SAC55075B |
|---|---|
| Air Displacement cfm(L/min) | 29.3(830) |
| Brand | Sealey |
| Maximum Free Air Delivery cfm(L/min) | 22.6(640) |
| Maximum Pressure | 145psi(10bar) |
| Minimum Rated Supply | 16A |
| Motor Output | 7.5hp |
| Nett Weight | 255kg |
| Oil Capacity | 1.57L |
| Outlet | 3/4"BSP Female Tap |
| Phase | 3ph |
| Receiver Capacity | 500L |
| Size (W x D x H) | 2000 x 700 x 1230mm |
| Speed | 1280rpm |
| Supply | 415V/32A |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SACV52775B Air Compressor 270L Vertical Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders
£3,252.87
£3,187.81
2% OFF
Free delivery in UK Mainland
|
Sealey SAC2276B Air Compressor 270L Belt Drive 2 x 3hp with Cast Cylinders
£3,357.68
£3,290.53
2% OFF
Free delivery in UK Mainland
|
NuAir B3800/5.5S/10+10 Honda Petrol Piston Compressor, 4kW, 2x10 Litre, 10 Bar
£1,407.29
£1,379.70
2% OFF
Free delivery in UK Mainland
|
NuAir NB7/500F/10 DS - Diesel Piston Compressor, 10 Hp, 500 Litre, 10 Bar, 33.3 CFM
£5,576.85
£5,467.50
2% OFF
Free delivery in UK Mainland
|
SIP 05251 B3800/270 Tandem Compressor,Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£2,566.39
£2,516.07
2% OFF
Free delivery in Channel Island
|
SIP 06587 TN10/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£2,658.28
£2,606.16
2% OFF
Free delivery in Channel Island
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SACV52775B | SAC2276B | S-36BW7P1NUA | S-N7TN9R1NUA | 05251 | 06587 |
| Warranty | 24 | 24 | ||||
| Type | Petrol | Diesel | ||||
| Capacity (L) | 270 | 270 | 500 | 270 | 270 | |
| Max Pressure (psi) | 145 | 145 | 145 | 145 | ||
| Maximum Pressure (bar) | 10 | 10 | 10 | 10 | 10 | 10 |
| Power (kW) | 4 | 2.2 | 7.5 | |||
| Weight (kg) | 200 | 150 | ||||
| Show More | ||||||
A. It is a 500 litre, 7.5hp, three-phase, 2-stage belt-drive compressor for professional workshops.

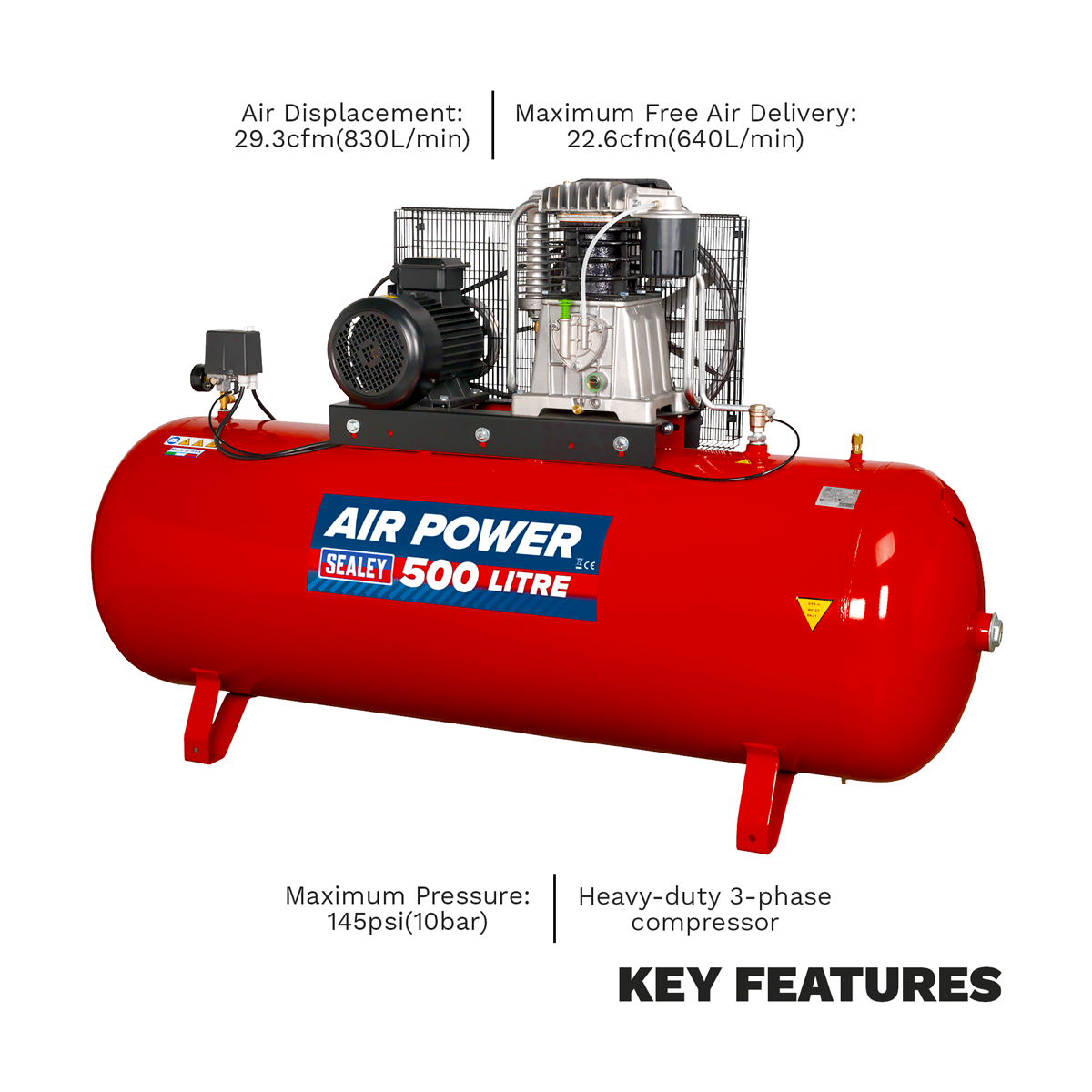

A. It offers 29.3cfm displacement and 22.6cfm maximum free air delivery, suiting heavy industrial air demands.
A. The unit operates up to 145psi, about 10bar, suitable for many industrial pneumatic systems.

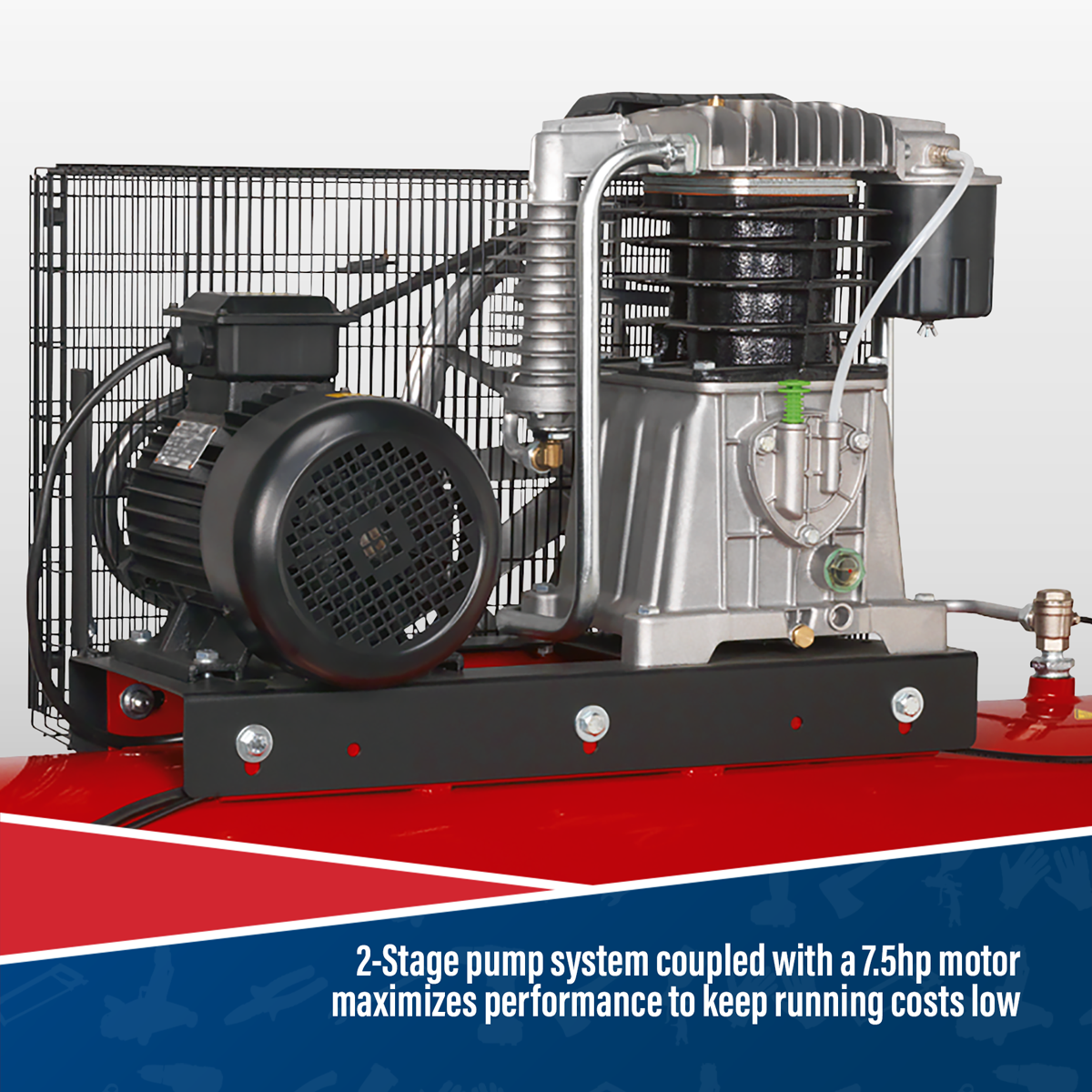

A. The combination maximises performance while keeping running costs lower than equivalent single-stage models.

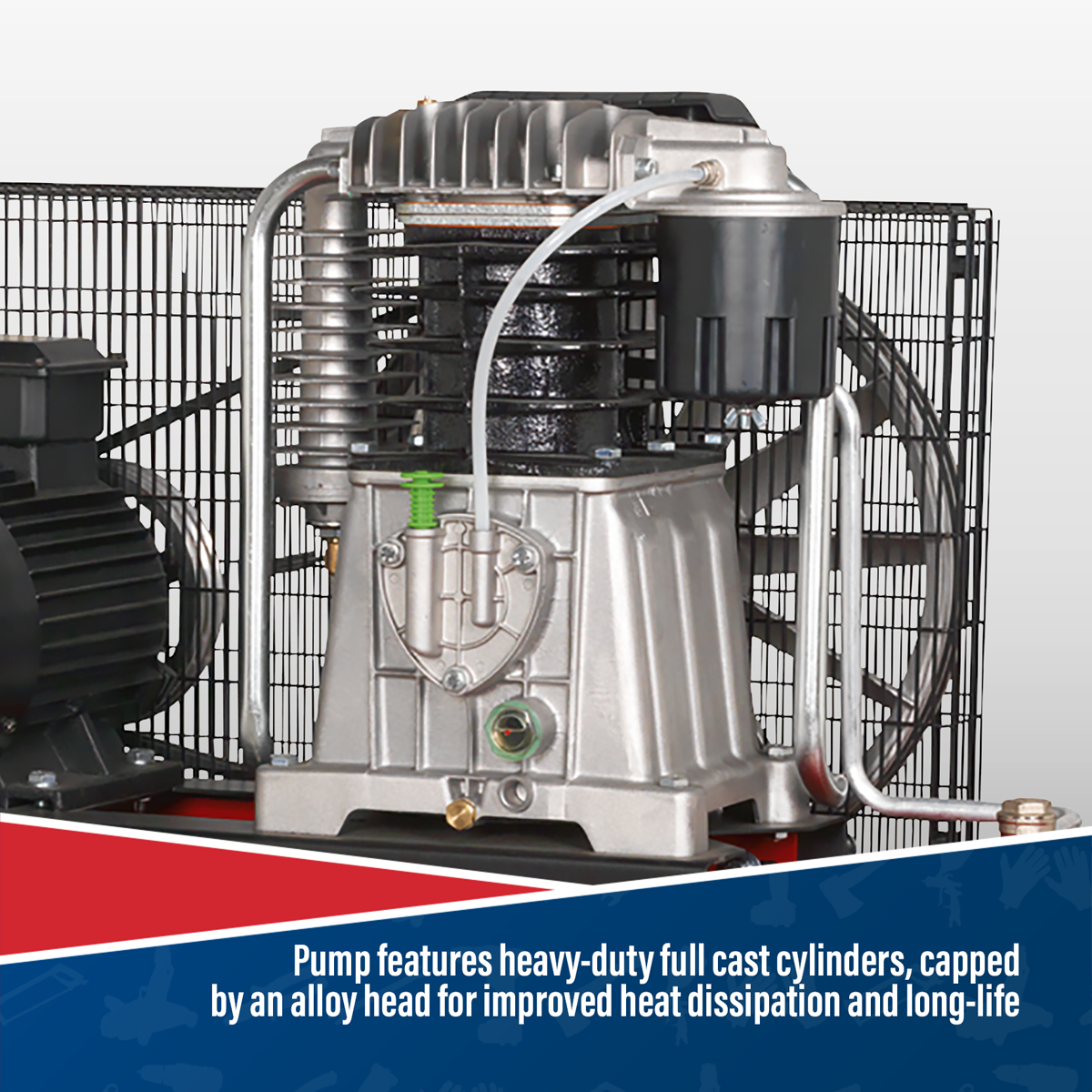

A. Heavy-duty full cast cylinders capped with an alloy head provide improved cooling and durability.

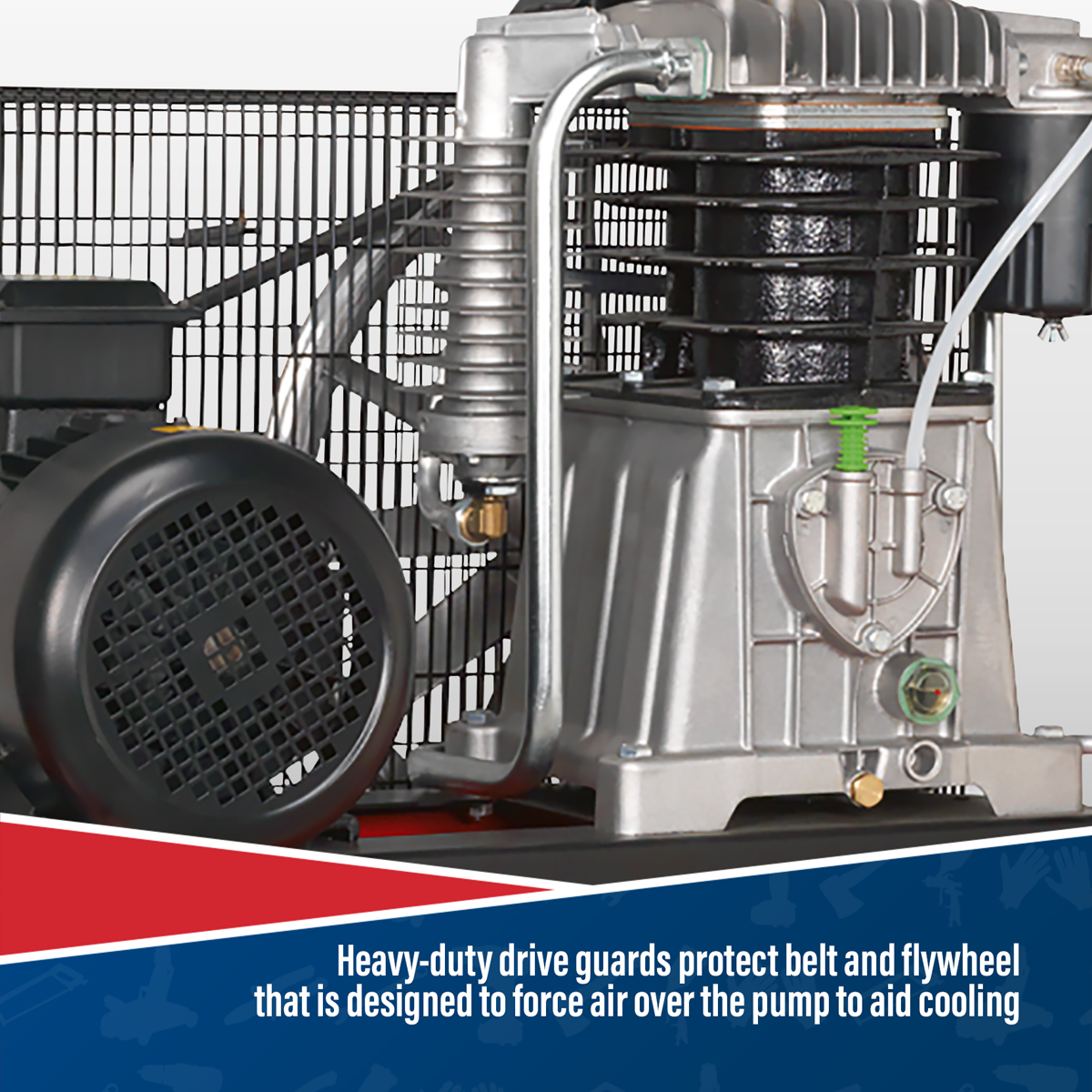

A. Heavy-duty guards protect belt and flywheel and are designed to force air over the pump to aid cooling.
A. Variants include SAC32055B, SAC32775B, SAC42055B and SAC52775B in the same heavy-duty range.
A. It needs a 415V three-phase supply with an appropriate 32A feed as specified.
A. It allows easy discharge of condensed water, reducing internal corrosion risk in the 500 litre tank.
A. It is designed for professional workshops and industrial sites requiring very high air capacity.
A. The compressor is heavy, so additional help is necessary to unload it safely.
