Product Number: 05251

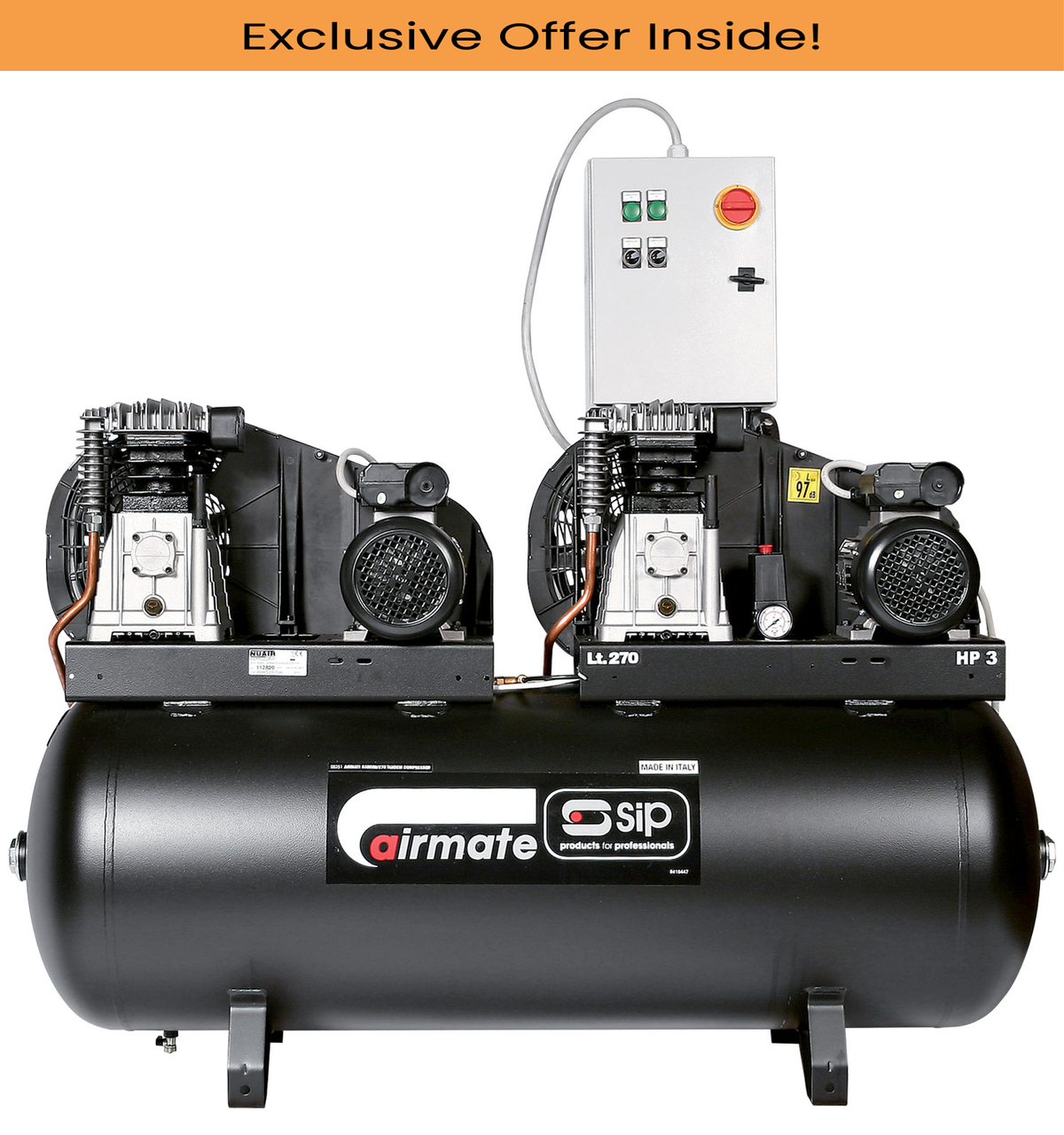

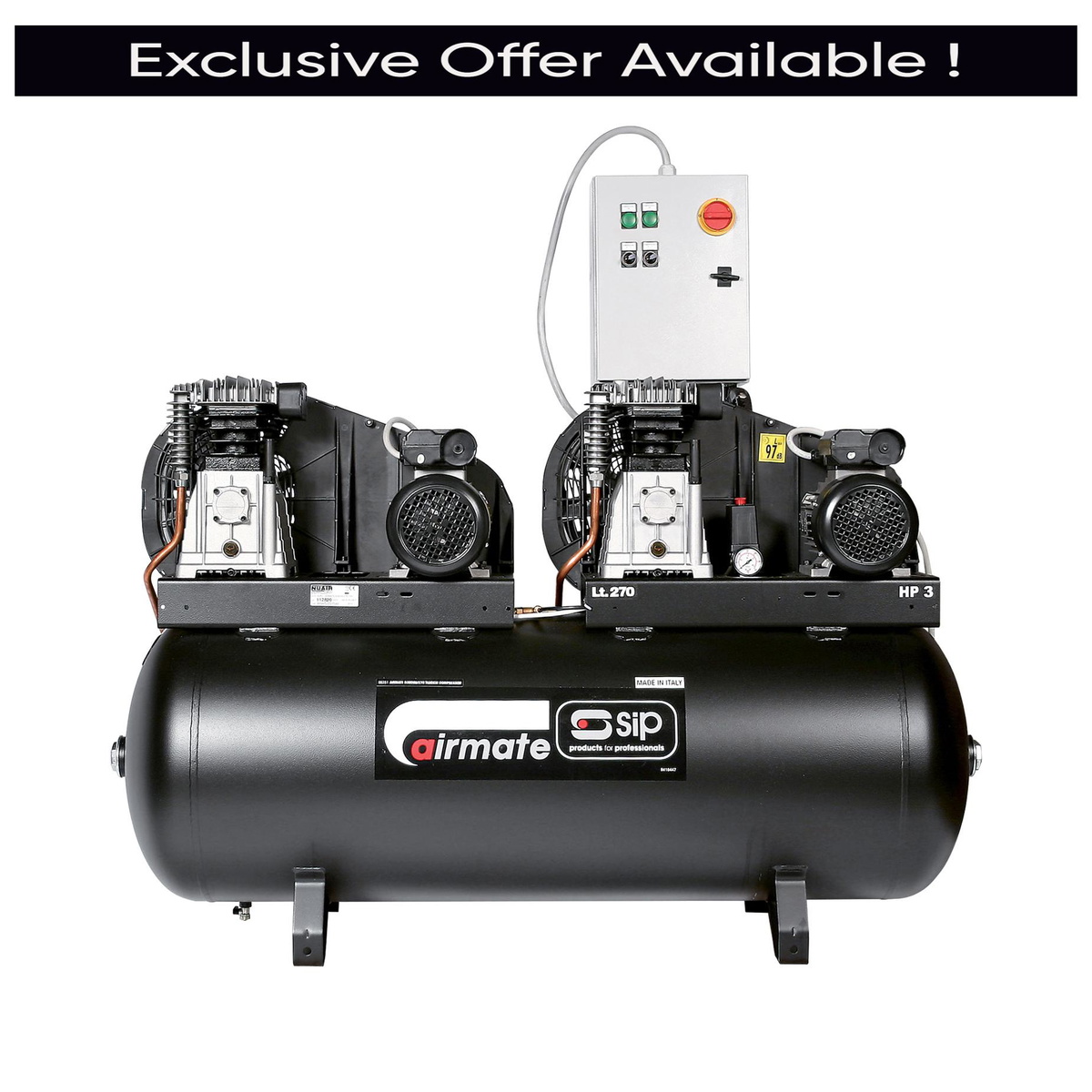

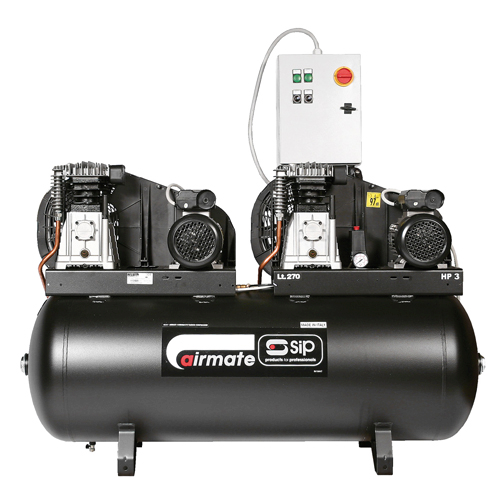

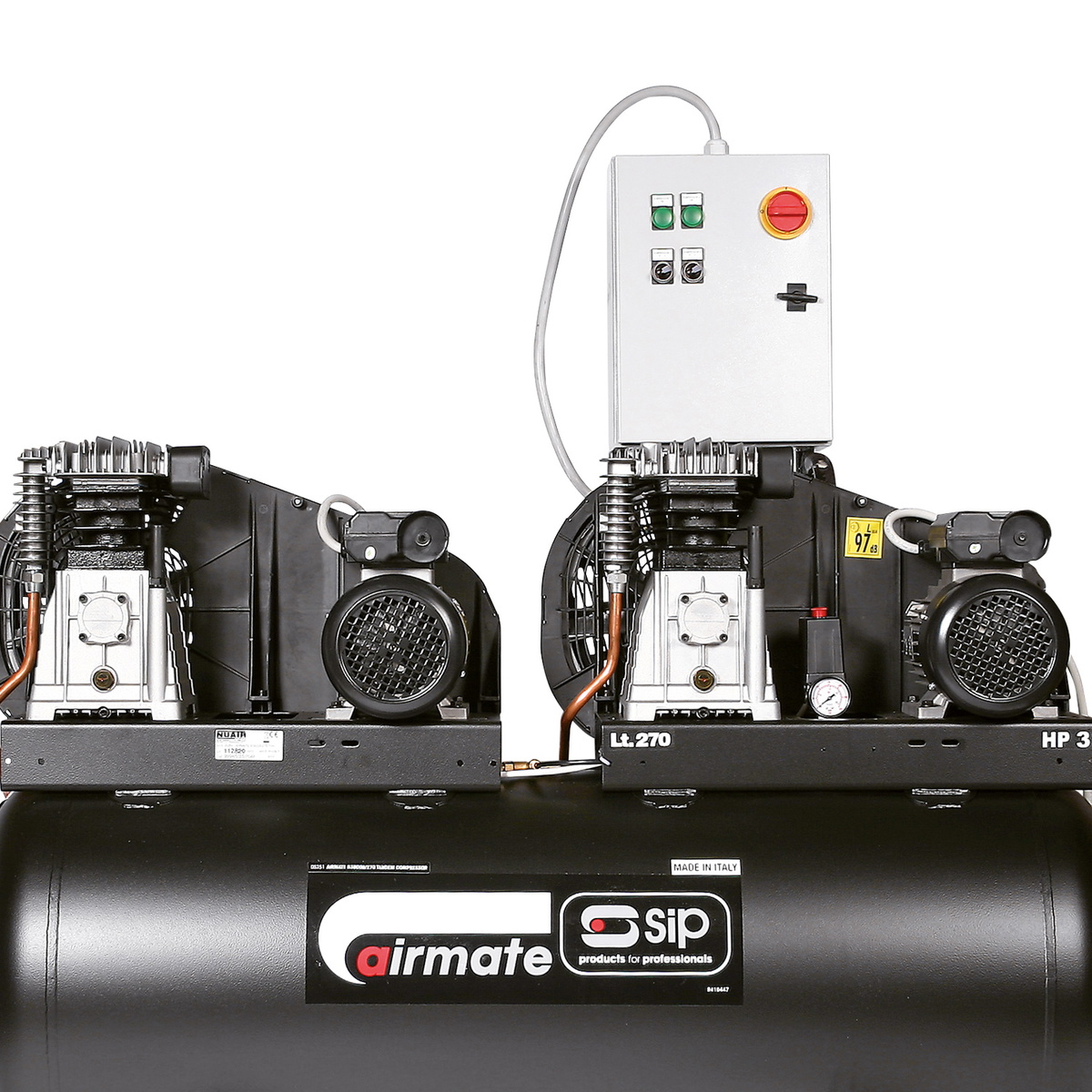

SIP 05251 B3800/270 Tandem Compressor is a smart 270ltr solution that uses twin B3800 pumps and dual 3hp motors for added resilience. Operating from a 230v (32A) supply, this tandem design delivers 32.00CFM piston displacement and 22.00CFM FAD up to 145psi (10bar). A central control box with staggered starting reduces current draw at startup and improves electrical stability. Importantly, the twin-pump setup allows continued running if one pump or motor fails, helping to minimise downtime in busy environments. Heavy-duty cast iron barrels, finned manifolds, an aluminium aftercooler and an oversized crankcase are built for prolonged use. With its generous 270ltr receiver and strong airflow, the B3800/270 Tandem is ideal as a central compressor for garages, fleet maintenance bays and production areas that rely on a constant, uninterrupted air supply.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 05251 |
|---|---|
| Input Supply | 230v (32A) |
| Motor Power | 2x 3hp (2.2kW) |
| Receiver Size | 270ltr |
| Piston Displacement | 32.00CFM (906ltr/min) |
| Free Air Delivery (FAD) | 22.00CFM (623ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC42755BLN Air Compressor 270L Belt Drive 5.5hp 3ph 2-Stage with Cast Cylinders Low Noise
£4,248.62
£4,163.65
2% OFF
Free delivery in UK Mainland
|
Sealey SAC2276B Air Compressor 270L Belt Drive 2 x 3hp with Cast Cylinders
£3,357.68
£3,290.53
2% OFF
Free delivery in UK Mainland
|
Sealey SACV52775B Air Compressor 270L Vertical Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders
£3,252.87
£3,187.81
2% OFF
Free delivery in UK Mainland
|
Clarke SE46C270 40cfm 270 Litre 10HP Industrial Air Compressor (400V)
£2,648.38
£2,596.45
2% OFF
Free delivery in UK Mainland
|
SIP 06585 TN7.5/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£1,722.30
£1,688.53
2% OFF
Free delivery in Channel Island
|
SIP 06587 TN10/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£2,658.28
£2,606.16
2% OFF
Free delivery in Channel Island
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SAC42755BLN | SAC2276B | SACV52775B | 2084905 | 06585 | 06587 |
| Warranty | 12 | 24 | 24 | |||
| Capacity (L) | 270 | 270 | 270 | 270 | 270 | 270 |
| Max Pressure (psi) | 145 | 145 | 145 | 145 | 145 | |
| Maximum Pressure (bar) | 10 | 10 | 10 | 10 | 10 | |
| Power (kW) | 5.6 | 7.5 | ||||
| Weight (kg) | 198 | 150 | 200 | 24 | ||
A. It uses twin B3800 pumps and dual 3hp motors on a 270ltr receiver, providing tandem operation and redundancy if one motor or pump fails.
A. It provides 32.00CFM piston displacement and 22.00CFM free air delivery, suitable for workshops requiring high volumes of compressed air.
A. Technical data specifies a 230v, 32A single‑phase supply, reflecting the higher current draw associated with its twin‑motor tandem configuration.
A. The twin pump and motor layout allows continued operation if a single pump or motor fails, giving additional reliability and peace of mind.

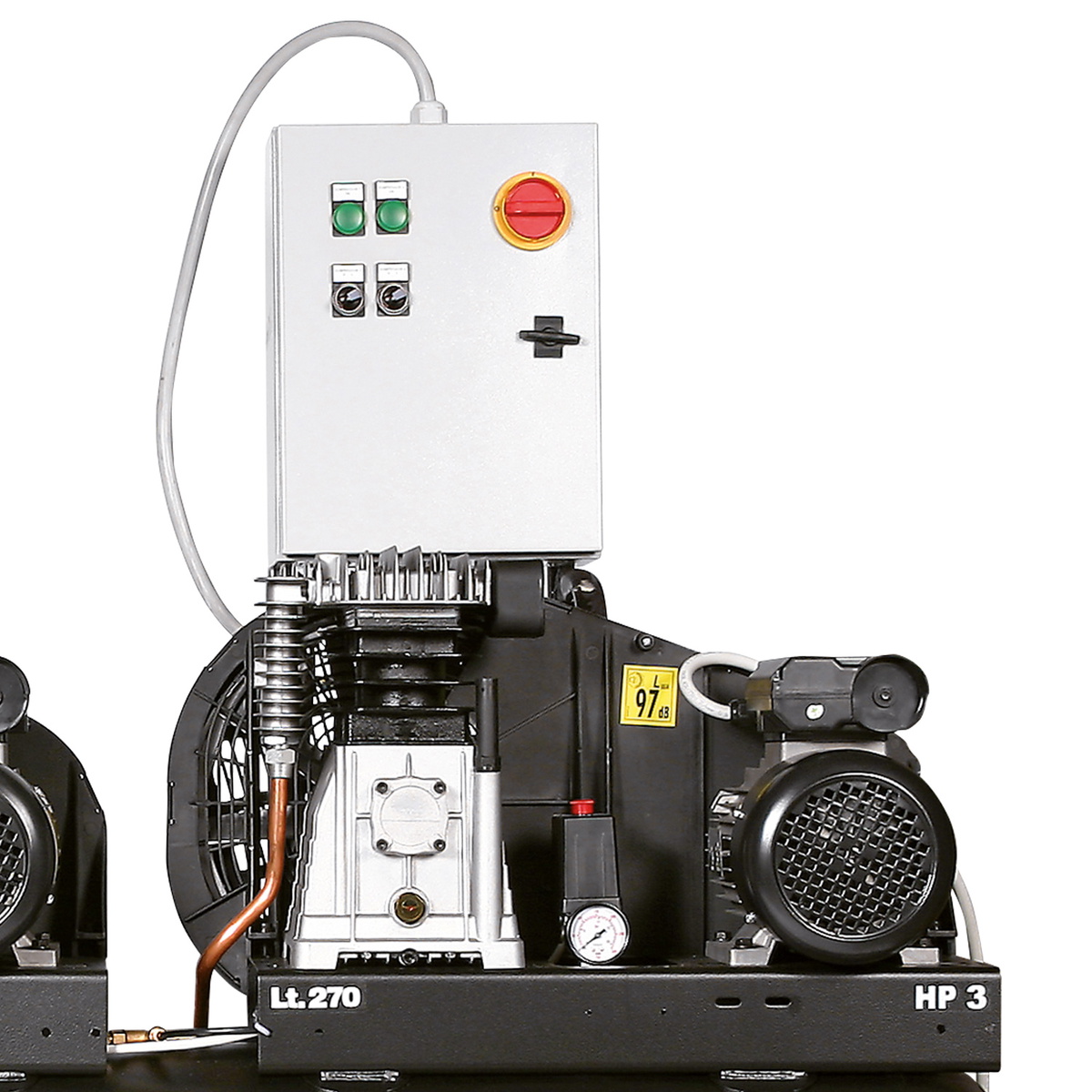

A. It controls the tandem system and provides staggered starting, helping reduce current draw and electrical stress during start‑up.
A. An aluminium aftercooler, finned manifolds and oversized crankcase contribute to reduced moisture, improved cooling and enhanced durability.
A. Description positions it as ideal for garage or workshop environments where consistent, uninterrupted compressed air production is essential.
A. A heavy‑duty cast iron barrel, aluminium die‑cast valve plate and oversized crankcase are all specified to withstand prolonged operation.
A. It comes with an SIP 2‑Year Standard Silver Warranty and is manufactured in Italy, reinforcing its professional quality.
A. Its twin‑pump layout and redundancy provide additional resilience and high air outputs compared with comparable single‑pump machines.
A. The ability to continue running through a single component failure makes it attractive where downtime must be minimised.
