Product Number: SAC52775B

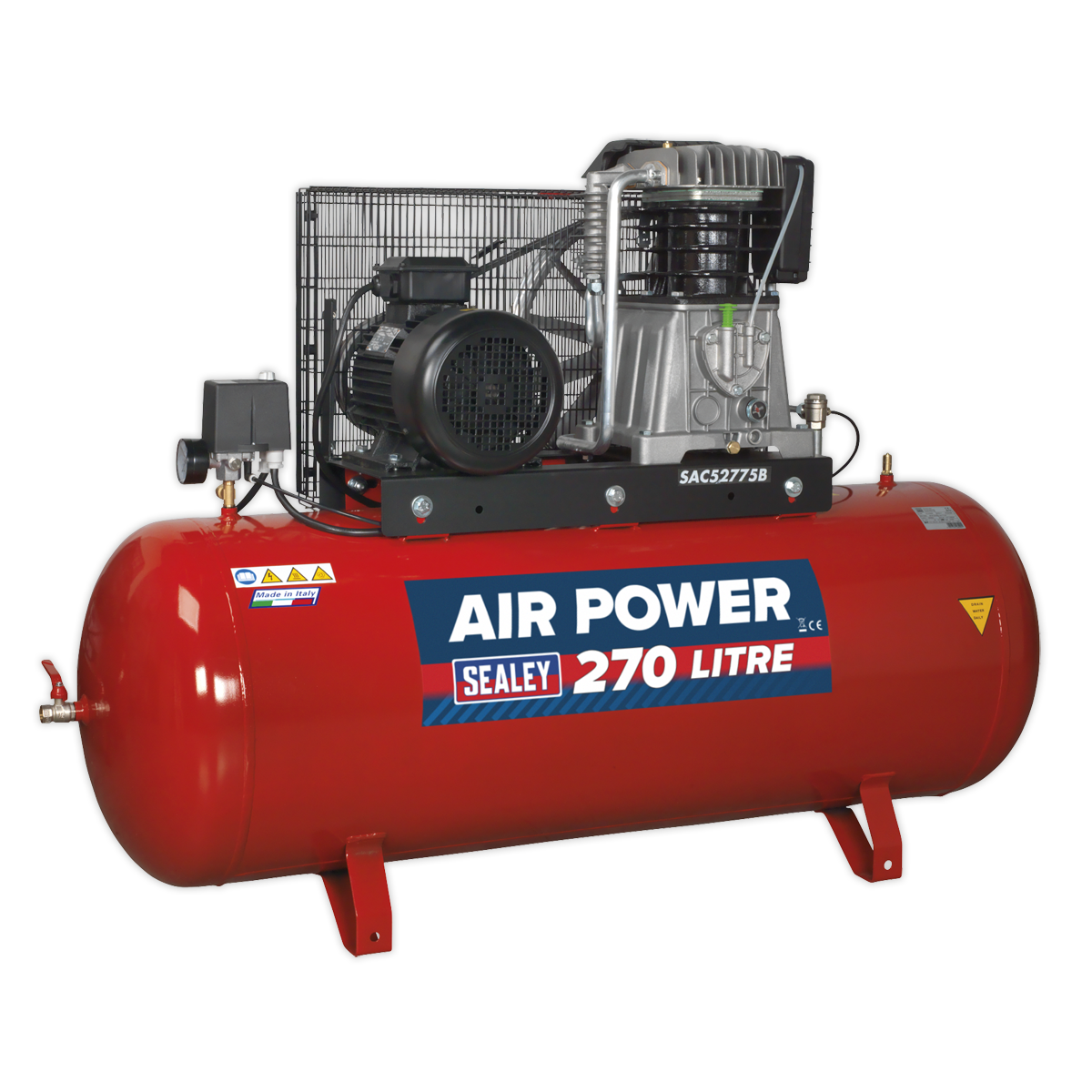

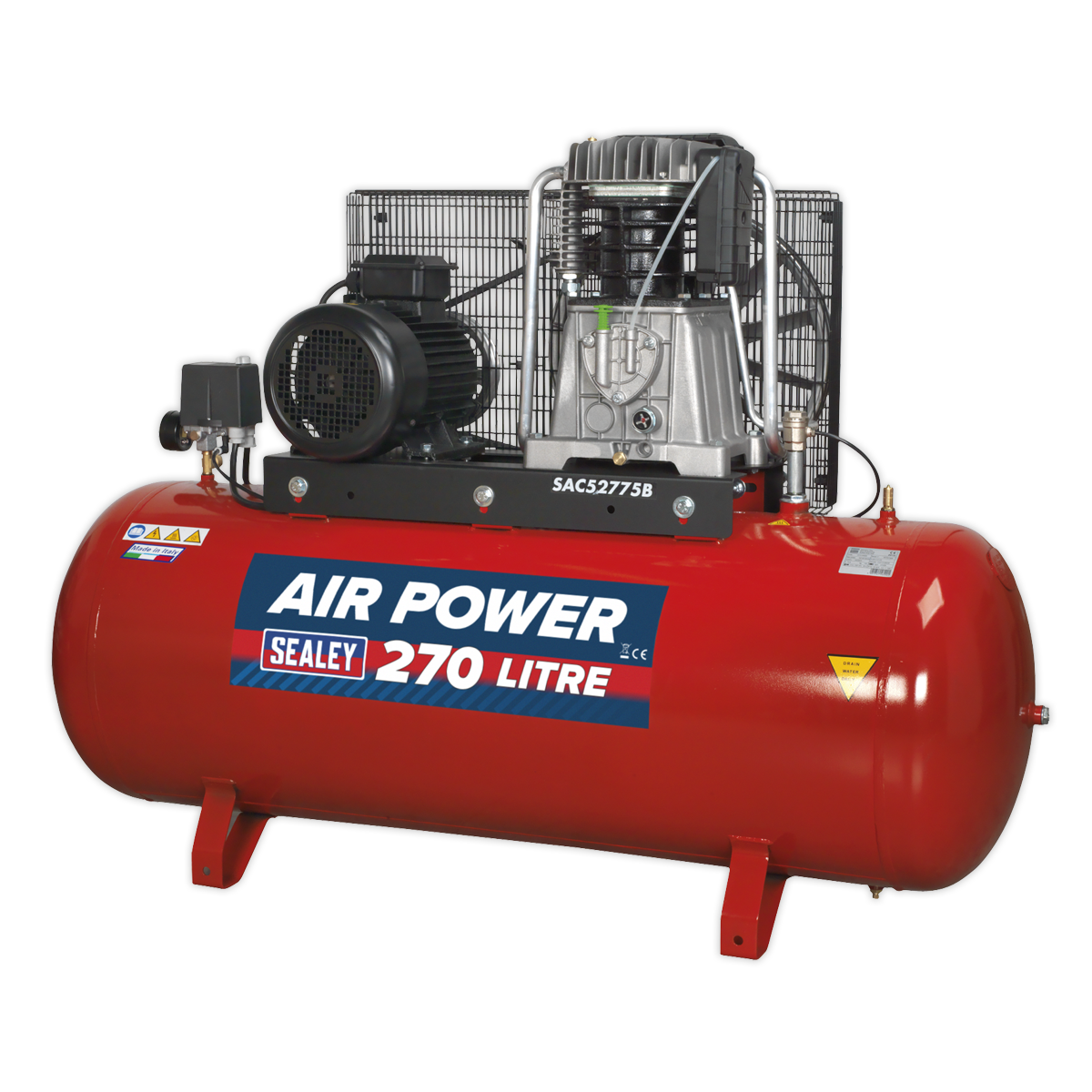

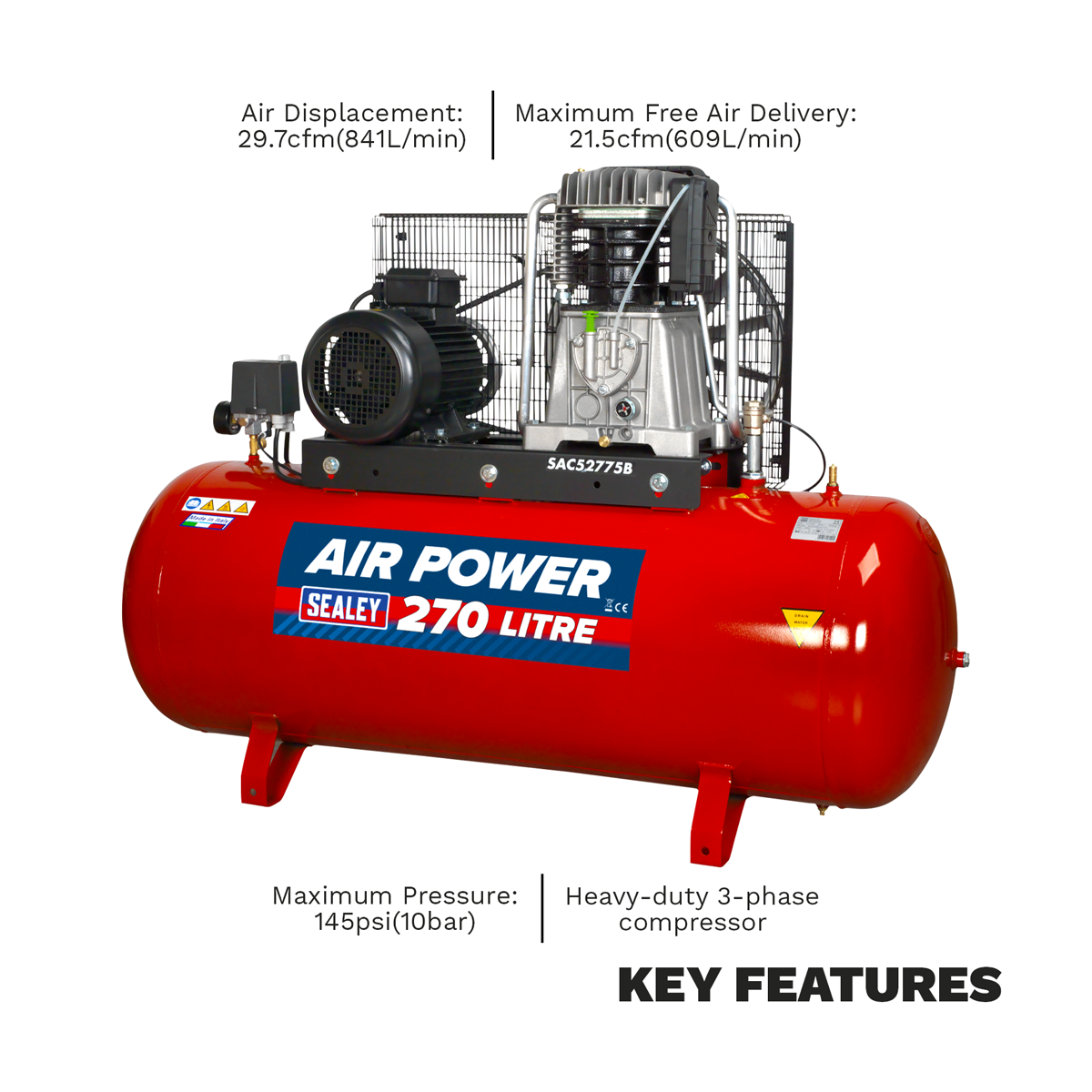

Sealey SAC52775B Air Compressor 270L Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders is a heavy-duty three-phase compressor designed for high output in professional workshops. A 7.5hp motor on a 415V 32A supply drives a 2‑stage pump with full cast cylinders and alloy head, delivering 29.7cfm (841L/min) displacement and 21.5cfm (609L/min) free air delivery at up to 145psi (10bar). The 2‑stage design increases efficiency and improves performance at higher pressures compared to single‑stage units. Heavy‑duty drive guards protect the belt and flywheel, which forces cooling air over the pump for improved heat dissipation and life. The 270L receiver offers extensive storage for multiple outlets and sustained use of air tools, spray equipment and systems. Supplied with full CE certification, test certificates and operating/maintenance manual, SAC52775B is ideal as a main air plant in demanding garages, bodyshops and light industrial facilities.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SAC52775B |
|---|---|
| Air Displacement cfm(L/min) | 29.7(841) |
| Brand | Sealey |
| Maximum Free Air Delivery cfm(L/min) | 21.5(609) |
| Maximum Pressure | 145psi(10bar) |
| Minimum Rated Supply | 32A |
| Motor Output | 7.5hp |
| Nett Weight | 143kg |
| Oil Capacity | 1.57L |
| Outlet | 1/2"BSP Female Tap |
| Phase | 3ph |
| Receiver Capacity | 270L |
| Size (W x D x H) | 1550 x 510 x 1070mm |
| Speed | 1280rpm |
| Supply | 415V/32A |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SACV52775B Air Compressor 270L Vertical Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders
£3,252.87
£3,187.81
2% OFF
Free delivery in UK Mainland
|
SIP 05251 B3800/270 Tandem Compressor,Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£2,566.39
£2,516.07
2% OFF
Free delivery in Channel Island
|
SIP 06587 TN10/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£2,658.28
£2,606.16
2% OFF
Free delivery in Channel Island
|
SIP 06585 TN7.5/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£1,722.30
£1,688.53
2% OFF
Free delivery in Channel Island
|
TIGREN 270ltr Tandem Belt-Driven Compressor
£1,470.26
£1,441.43
2% OFF
Free delivery in Channel Island
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SACV52775B | 05251 | 06587 | 06585 | 04386 |
| Warranty | 24 | 24 | 24 | ||
| Capacity (L) | 270 | 270 | 270 | 270 | 270 |
| Max Pressure (psi) | 145 | 145 | 145 | 145 | 145 |
| Maximum Pressure (bar) | 10 | 10 | 10 | 10 | 10 |
| Power (kW) | 2.2 | 7.5 | 5.6 | 2.2 | |
| Weight (kg) | 200 | ||||
A. It is a 270 litre, 7.5hp, three-phase, two-stage belt-drive compressor providing 29.7cfm displacement and 21.5cfm free air delivery.
A. The unit operates up to 145psi, approximately 10bar, making it suitable for a wide range of industrial pneumatic tools and systems.

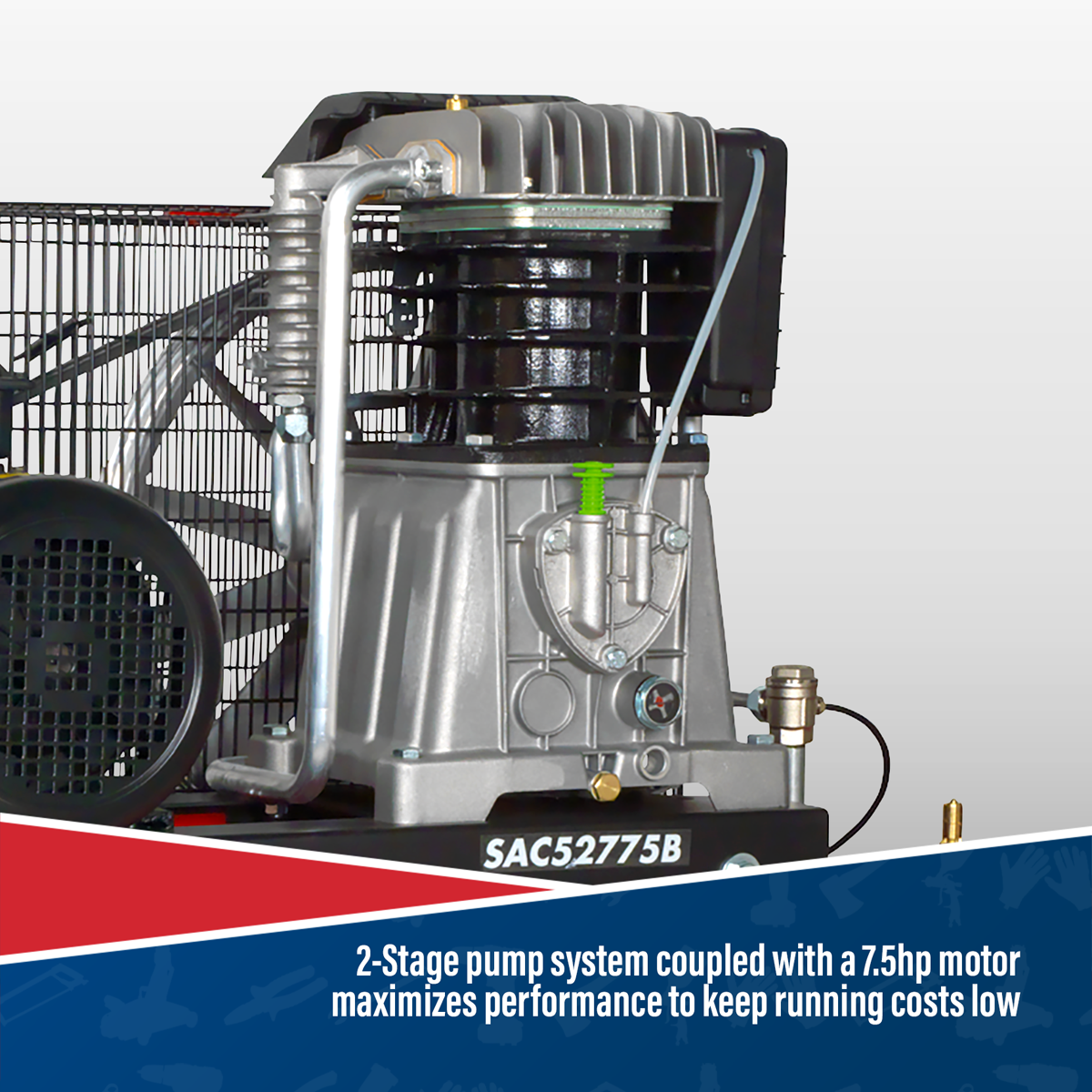

A. The two-stage pump coupled with a 7.5hp motor maximises performance while keeping running costs lower than equivalent single-stage, single-phase models.

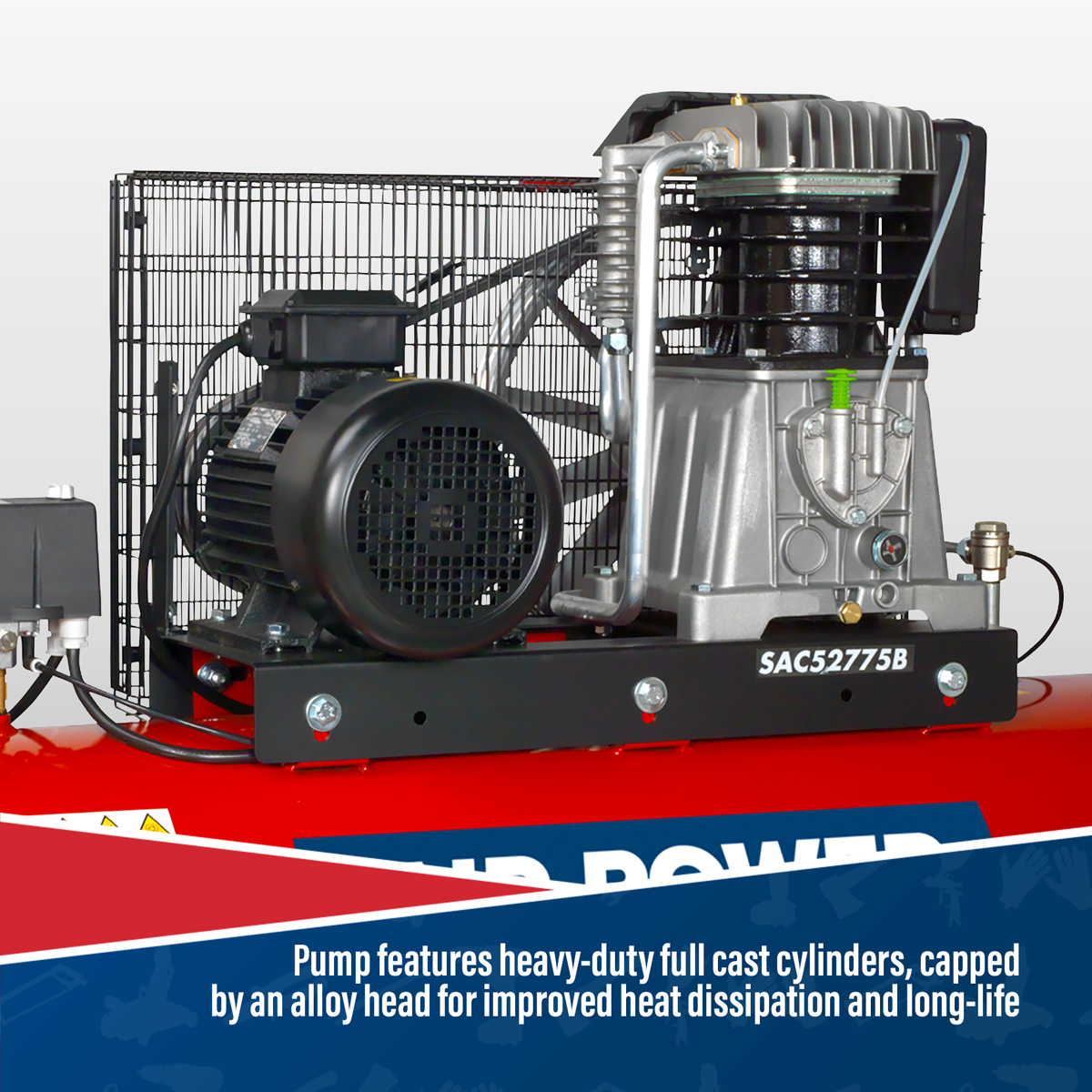

A. Heavy-duty full cast cylinders capped by an alloy head enhance heat dissipation and provide long service life under demanding conditions.

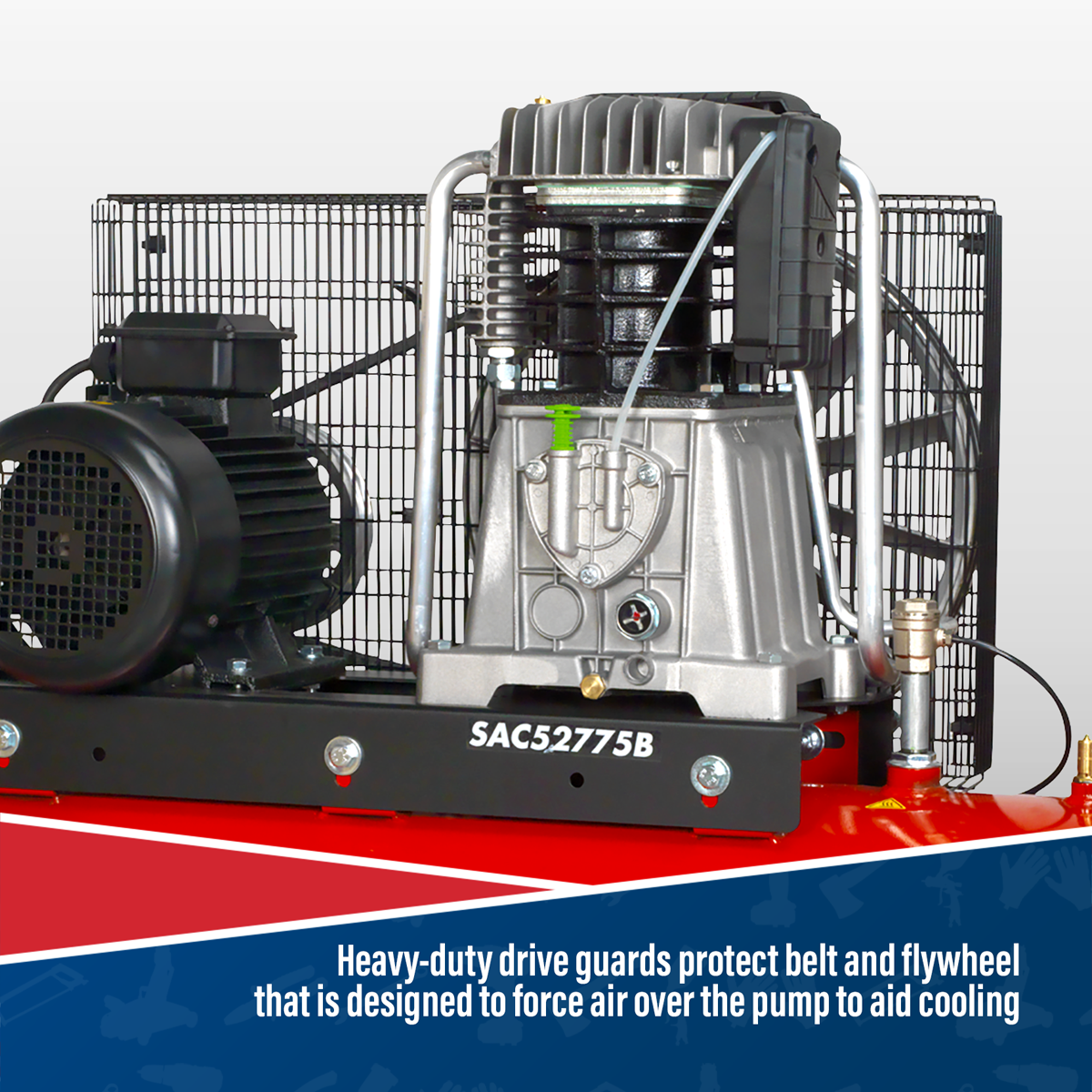

A. Heavy-duty guards protect belt and flywheel while directing air over the pump, aiding cooling and improving operational reliability.
A. It requires a 415V three-phase supply with a minimum rated 32A feed to support the 7.5hp motor.
A. Variants include SAC32055B, SAC32775B, SAC42055B and SAC55075B, covering alternative configurations with similar heavy-duty capabilities.
A. It is supplied with full CE certification, test certificates and an operating and maintenance manual for correct installation and servicing.
A. The compressor is heavy at approximately 143kg, so additional help is required to unload and position it safely at the delivery point.
A. The large receiver stores substantial compressed air, supporting longer tool use and multiple tools operating together between pump cycles.
A. It is designed for professional workshops and industrial sites requiring high volumes of compressed air and robust continuous-duty performance.
