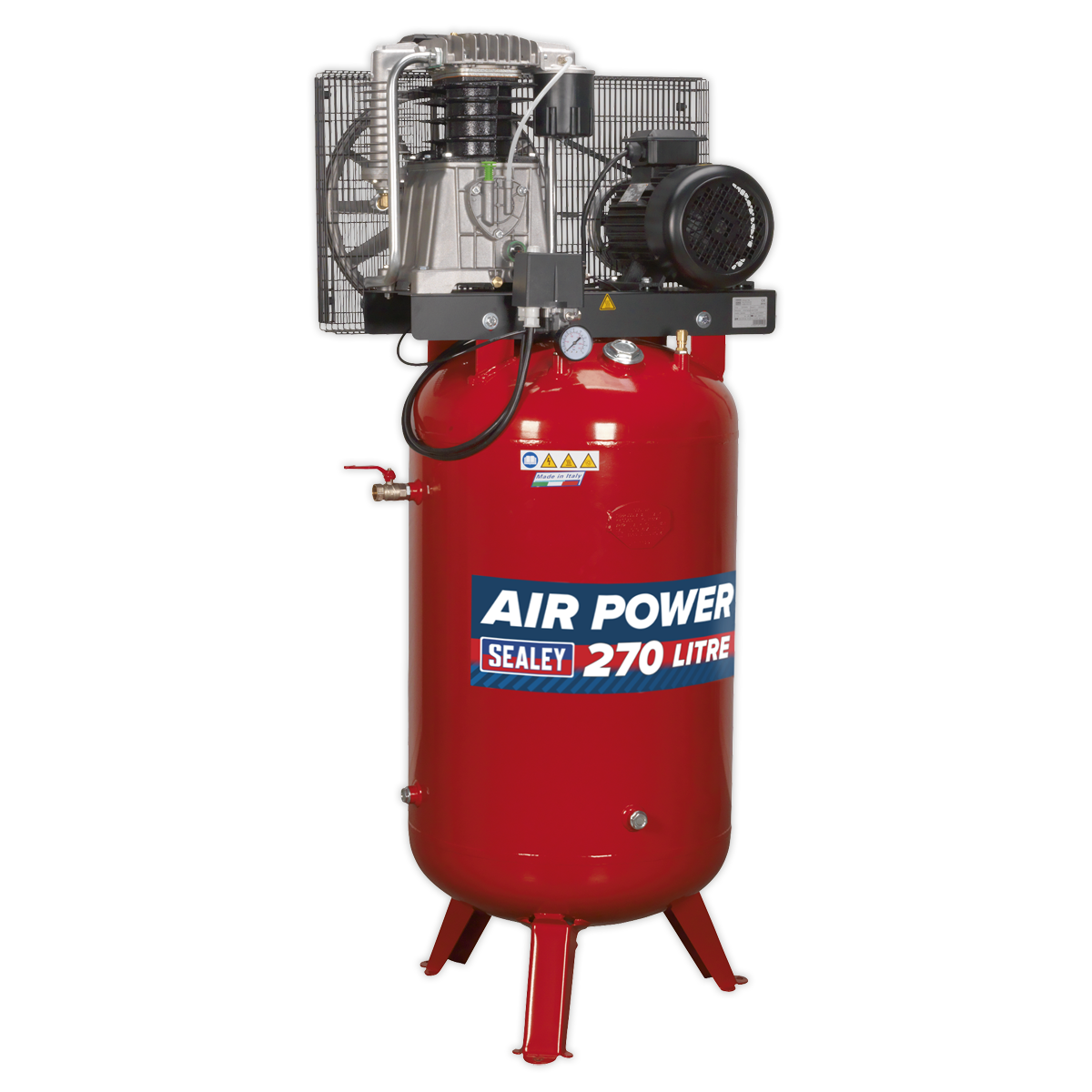

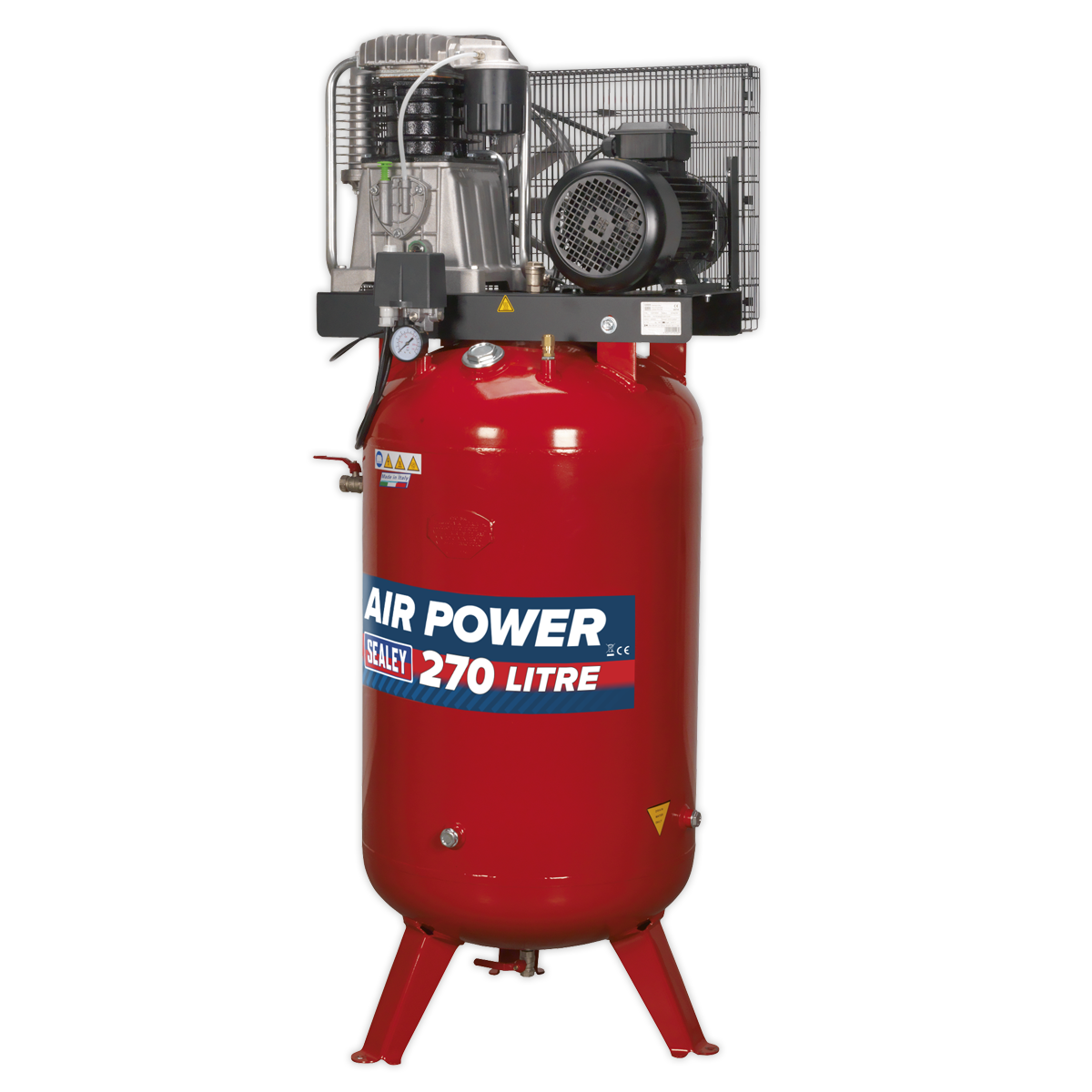

Sealey SACV52775B Air Compressor 270L Vertical Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders

Product Number: SACV52775B

£3,206.23 £3,143.36

BUY NOW

ADD TO CART

Variations

SAC3203B3PH

SAC42755BLN

SAC72775BLN

Click on the button below to find the right air compressor

Air Compressor Finder

Sealey SACV52775B Air Compressor 270L Vertical Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders is a powerful vertical receiver compressor designed to save floor space in busy workshops. A 7.5hp three‑phase motor drives a 2‑stage pump with full cast cylinders and alloy head, producing 29.3cfm (830L/min) air displacement and 22.6cfm (640L/min) free air delivery at up to 145psi (10bar). The tall 270L vertical receiver keeps the footprint compact while providing ample storage for high-demand tools and multiple outlets. Heavy-duty drive guards protect the belt and flywheel, which forces cooling air over the pump for improved heat dissipation. With a 415V 32A supply requirement and robust construction, this compressor is built for professional and light industrial environments that need reliable, high‑pressure 3‑phase air but are short on floor area. Supplied with CE certification, test certificates and operating/maintenance manual, it offers a strong combination of performance and space efficiency.

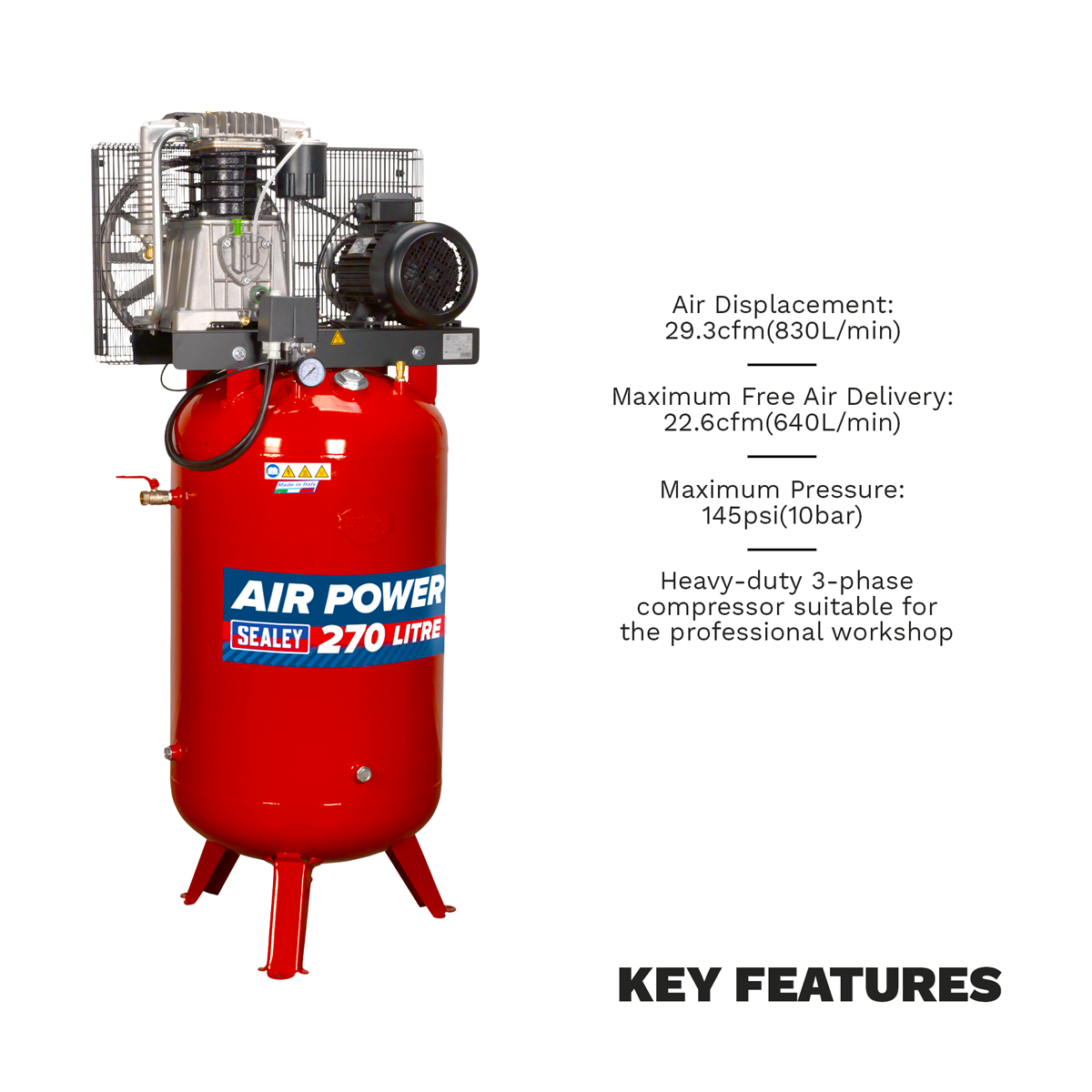

Key Features:

Air Displacement: 29.3cfm(830L/min).
Maximum Free Air Delivery: 22.6cfm(640L/min).
Maximum Pressure: 145psi(10bar).
Heavy-duty 3-phase compressor suitable for the professional workshop.

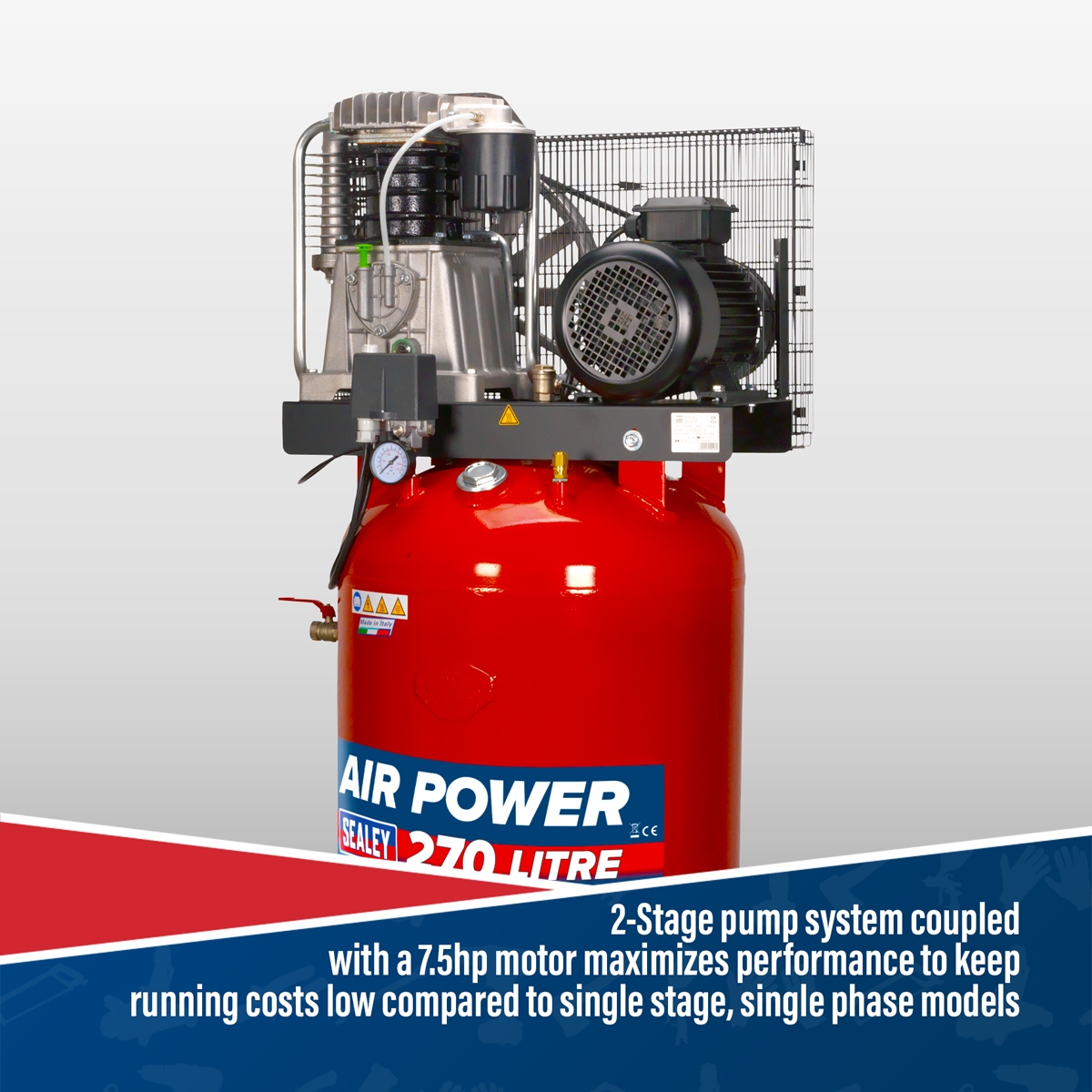

2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.

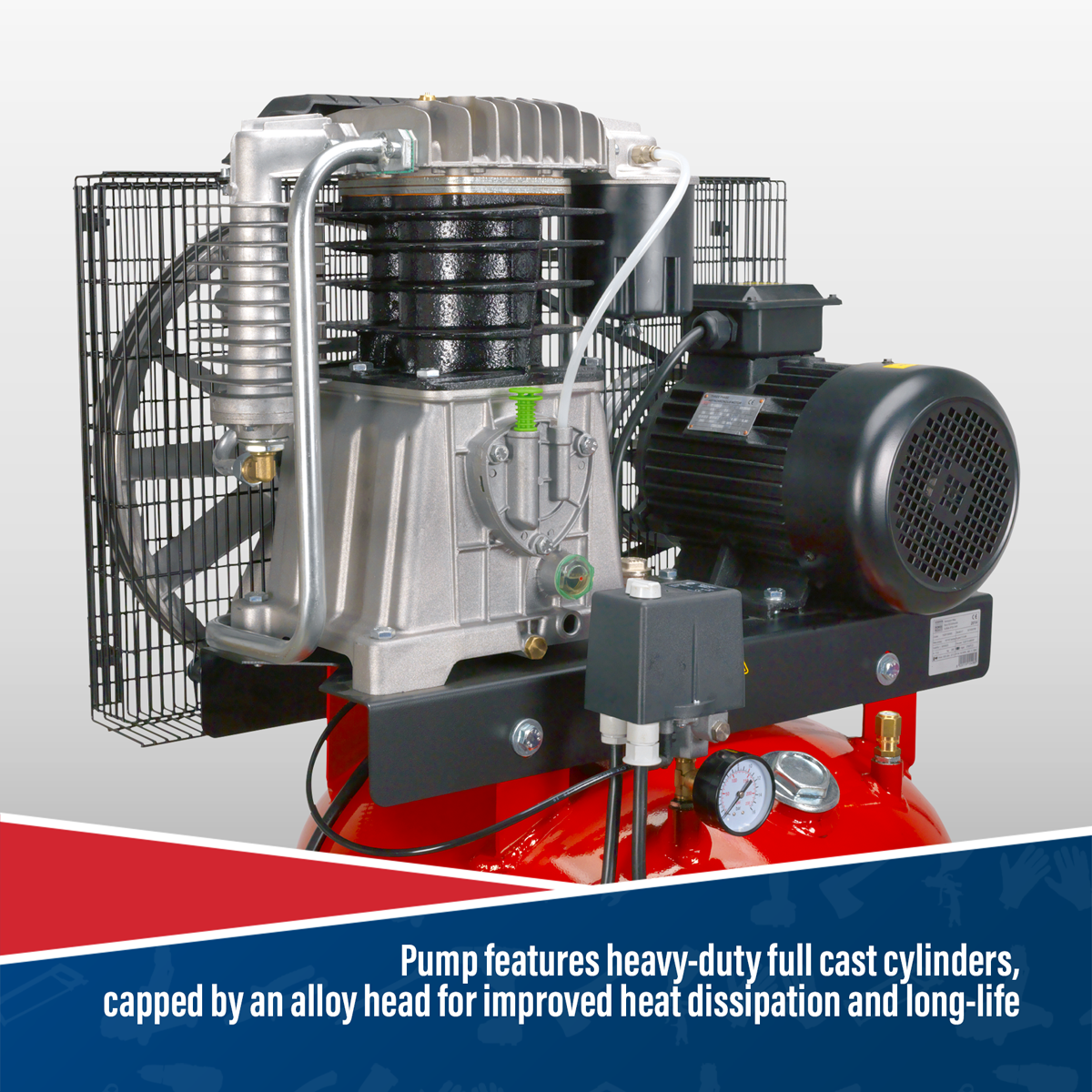

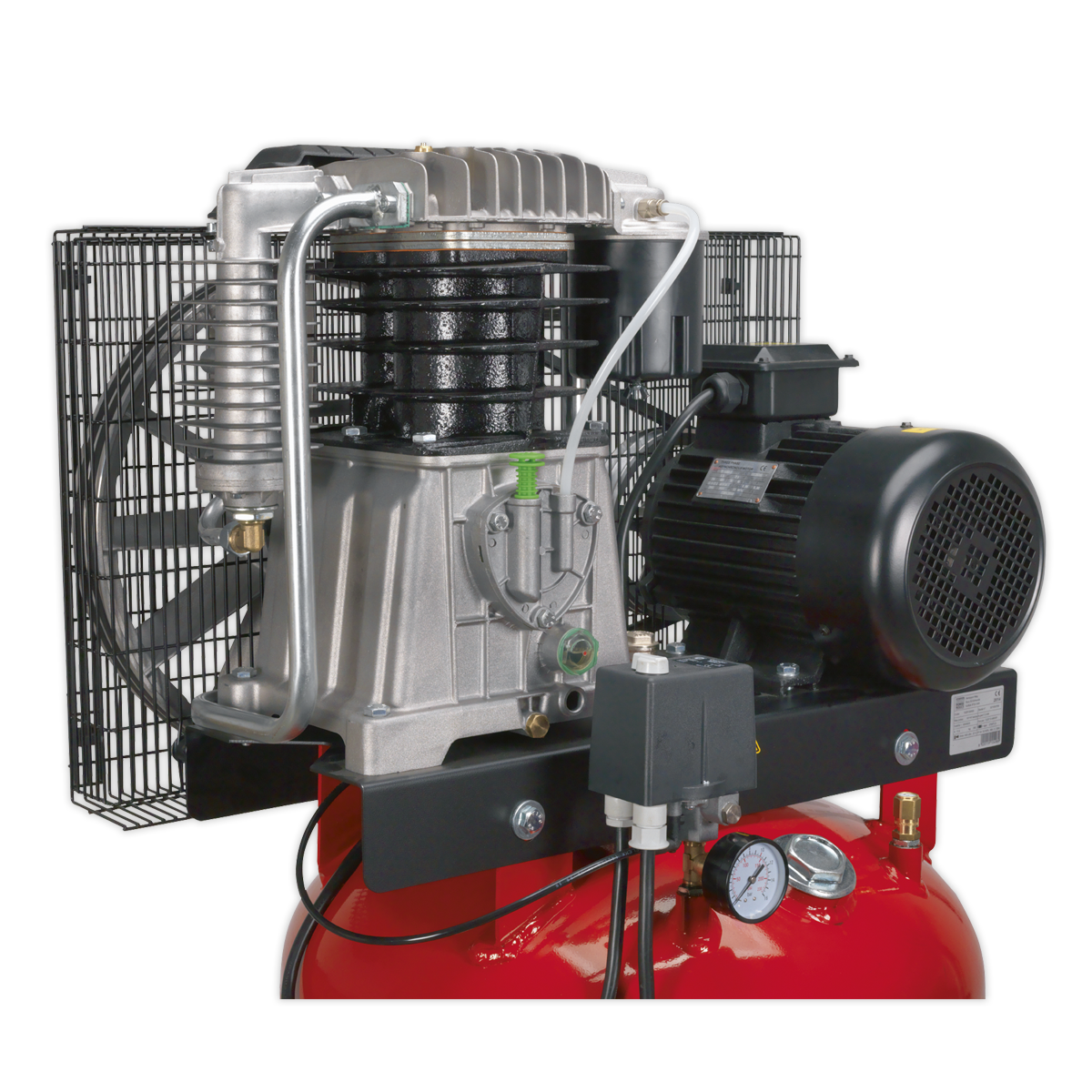

Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.

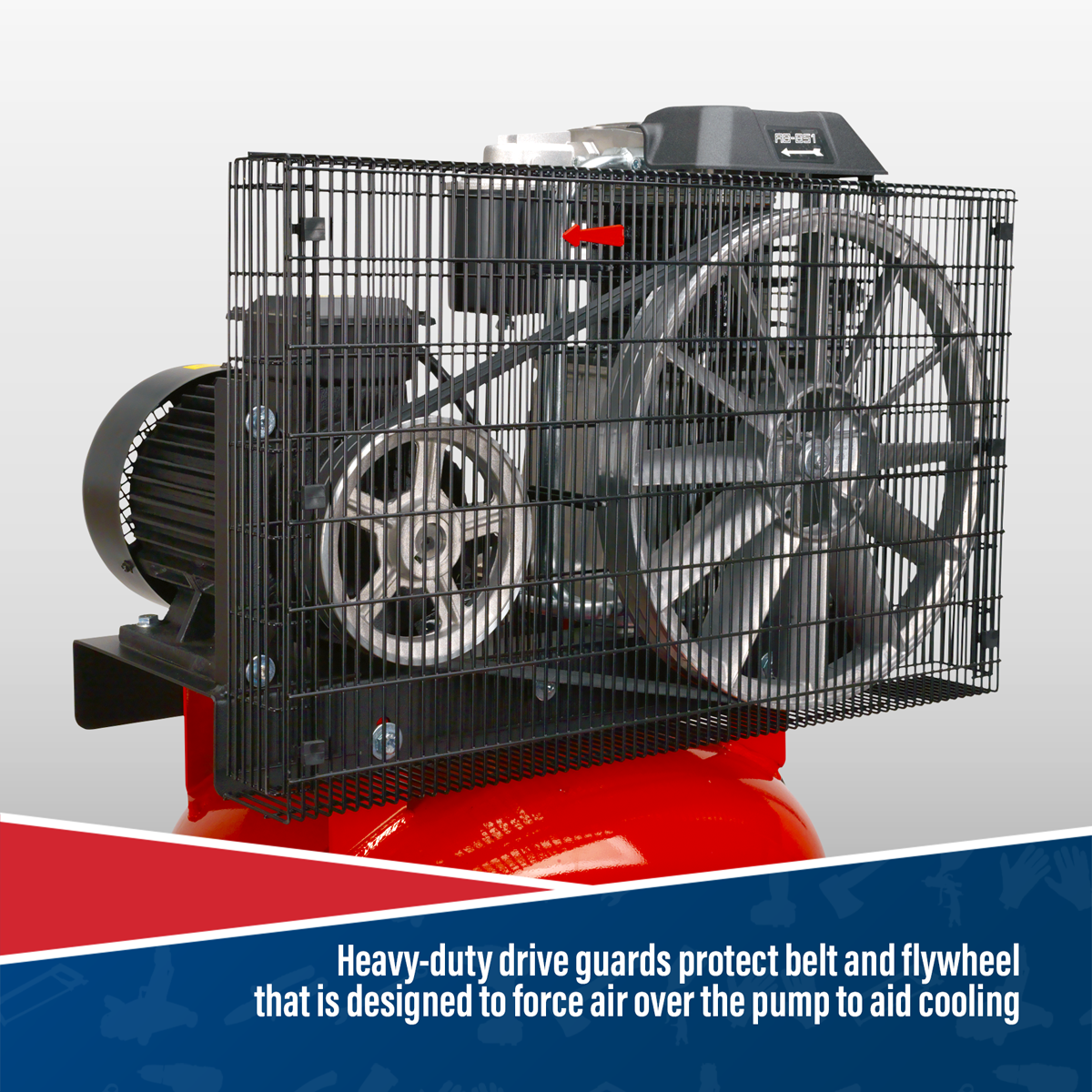

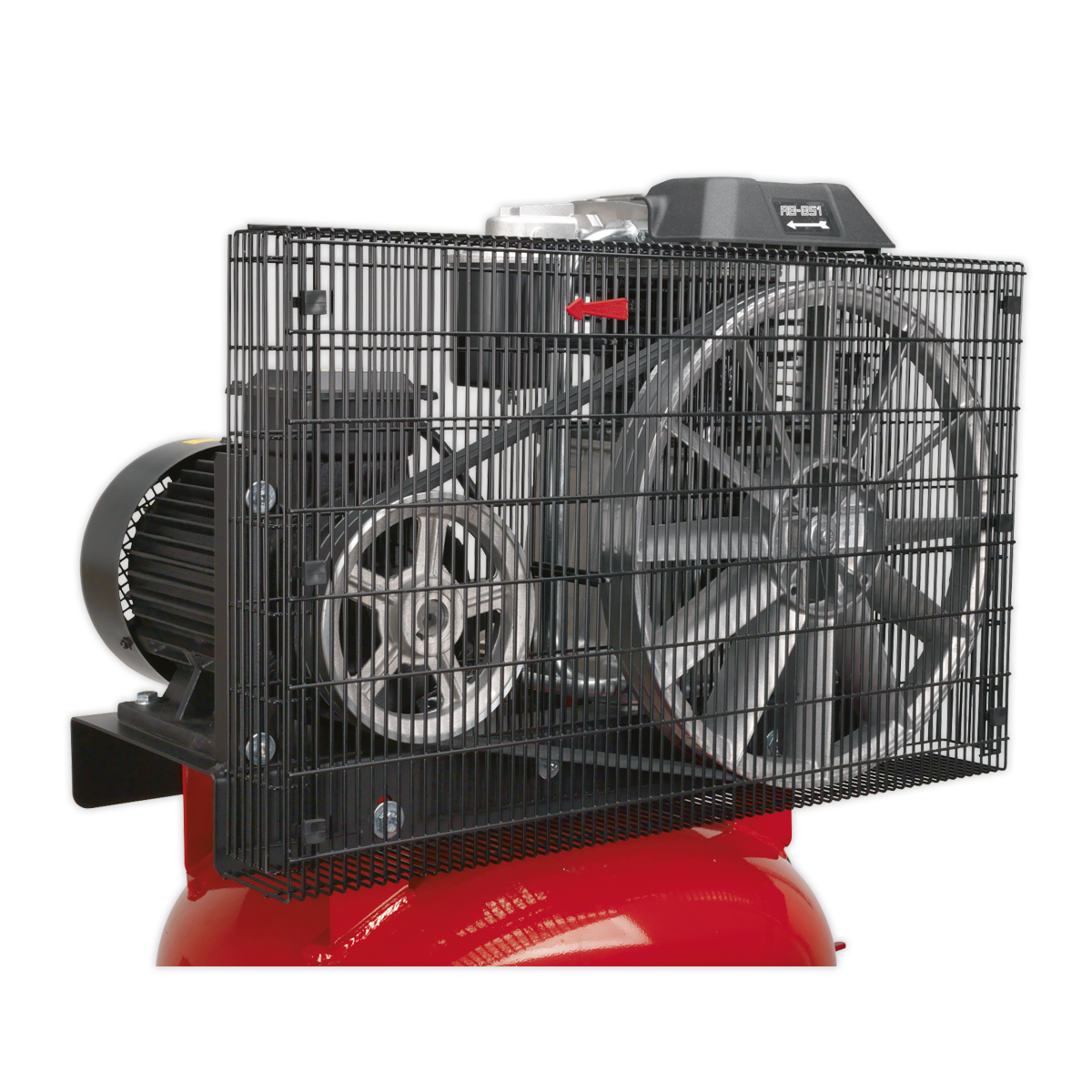

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

About PartsForMachines:

PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

BUY NOW

ADD TO CART

Model No	SACV52775B
Air Displacement cfm(L/min)	29.3(830)
Brand	Sealey
Maximum Free Air Delivery cfm(L/min)	22.6(640)
Maximum Pressure	145psi(10bar)
Minimum Rated Supply	32A
Motor Output	7.5hp
Nett Weight	200kg
Oil Capacity	1.57L
Outlet	3/4"BSP Female Tap
Phase	3ph
Receiver Capacity	270L
Size (W x D x H)	770 x 620 x 1775mm
Speed	1280rpm
Supply	415V/32A

BUY NOW

ADD TO CART

Engine Parts	Product Number	Product Name	Recommended Units	Product Price

BUY NOW

ADD TO CART

Hi, I'm Simon, your PartsForMachines product expert.

Checking fit, size, power, or compatibility?

Ask your question — I’ll cut through the jargon.

Thinking

Disclaimer: This chat uses AI and may be inaccurate or incomplete. Always verify details on the product page, datasheets and on equipment manual. For precise advise, contact our customer support.

Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Use promo code "LFTH1" to get Additional 1% OFF

Question about this product? Click here

Compare with Similar products	Compare SIP 05302 PX3/200-SRB Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £778.45 £763.19 2% OFF Free delivery in Channel Island ADD	Compare SIP 06323 VN3/150-SB Vertical Belt Drive Compressor,Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar £934.15 £915.83 2% OFF Free delivery in Channel Island ADD	Compare SIP 05308 PX4/200B Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £891.72 £874.24 2% OFF Free delivery in Channel Island ADD	Compare SIP 06585 TN7.5/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £1,694.20 £1,660.98 2% OFF Free delivery in Channel Island ADD	Compare SIP 05251 B3800/270 Tandem Compressor,Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £2,524.52 £2,475.02 2% OFF Free delivery in Channel Island ADD	Compare SIP 06335 VN5.5/150-TB Vertical Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar £1,446.27 £1,417.91 2% OFF Free delivery in Channel Island ADD	Compare SIP 06583TN5.5/200 Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £1,342.96 £1,316.63 2% OFF Free delivery in Channel Island ADD	Compare SIP 06587 TN10/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £2,614.91 £2,563.64 2% OFF Free delivery in Channel Island ADD	Compare SIP 06291 ISBD7.5/270 Super Electric Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 11 Bar £1,987.33 £1,948.36 2% OFF Free delivery in Channel Island ADD	Compare SIP 06295 ISBD10/270 Super Electric Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 11 Bar £3,137.90 £3,076.37 2% OFF Free delivery in Channel Island ADD	Compare SIP 06297 ISBD15/500 Super Electric Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 11 Bar £4,393.06 £4,306.92 2% OFF Free delivery in Channel Island ADD	Compare SIP 04328 ISKP7/50 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,250.82 £1,226.29 2% OFF Free delivery in Channel Island ADD	Compare SIP 04330 ISKP7/150 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,472.83 £1,429.93 3% OFF Free delivery in Channel Island ADD	Compare SIP 04331 ISKP7/150ES Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,608.36 £1,576.82 2% OFF Free delivery in Channel Island ADD	Compare SIP 04444 ISHP5.5/50 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,291.31 £1,265.99 2% OFF Free delivery in Channel Island ADD
Technical Specification
PRODUCT NUMBER	05302	06323	05308	06585	05251	06335	06583	06587	06291	06295	06297	04328	04330	04331	04444
Input Supply		230	230	400	230	415	400	400	400	400	400
Motor Power		2.2		5.6	2.2	4.1	4.1	7.5	5.6	7.5	11.2
Warranty		24	24	24	24	24	24	24	24	24	24	24	24	24	24
Maximum Pressure (bar)	0	10	0	10	10	10	10	10	11	11	11	10	10	10	10
Free AirDelivery (FAD)	0	8.5	0	25	22	18	18	28	20.5	25	40.7	11	11	11	11
Noise Level	0	96	97	0	0	97	0	0	0	0	0	0	0	0	0
Maximum Pressure (psi)	0	145	0	145	145	145	145	145	160	160	160	150	150	150	150
Piston Displacement (CFM)		13	18	34	32	24	24	42	31	38	61.5	16	16	16	15
Piston Displacement (litres/min)		368	510	963	906	680	680	1189	878	1076	1744	453	453	453	425
Show More

Technical

Q 1. What are the core specifications of the Sealey SACV52775B compressor?

A. It is a 270 litre vertical, 7.5hp, three-phase, 2-stage belt-drive compressor.

Q 2. How much air delivery does the SACV52775B provide?

A. It delivers 29.3cfm displacement and 22.6cfm maximum free air delivery for heavy industrial applications.

Q 3. What maximum pressure can this vertical compressor achieve?

A. The unit operates up to 145psi, around 10bar, covering many industrial air requirements.

Q 4. How does the vertical receiver design benefit workshop layout?

A. The 270 litre vertical tank reduces floor footprint while providing large air storage.

Q 5. How does the 2-stage pump and 7.5hp motor improve efficiency?

A. This configuration maximises performance and keeps running costs lower than single-stage single-phase units.

Q 6. What pump construction features support durability and cooling?

A. Full cast cylinders capped by alloy heads enhance heat dissipation and service life.

Q 7. Which related compressors are variants of the SACV52775B model?

A. Variants include SAC3203B3PH, SAC42755BLN and SAC72775BLN.

Q 8. What electrical supply is required for this compressor?

A. It runs on a 415V three-phase supply with a 32A minimum rated feed.

Q 9. How does the heavy-duty drive guard assist both safety and cooling?

A. It shields belt and flywheel while directing airflow over the pump to aid cooling.

Q 10. For which environments is the SACV52775B particularly suitable?

A. It suits professional workshops and industrial premises needing strong air output with a smaller footprint.
