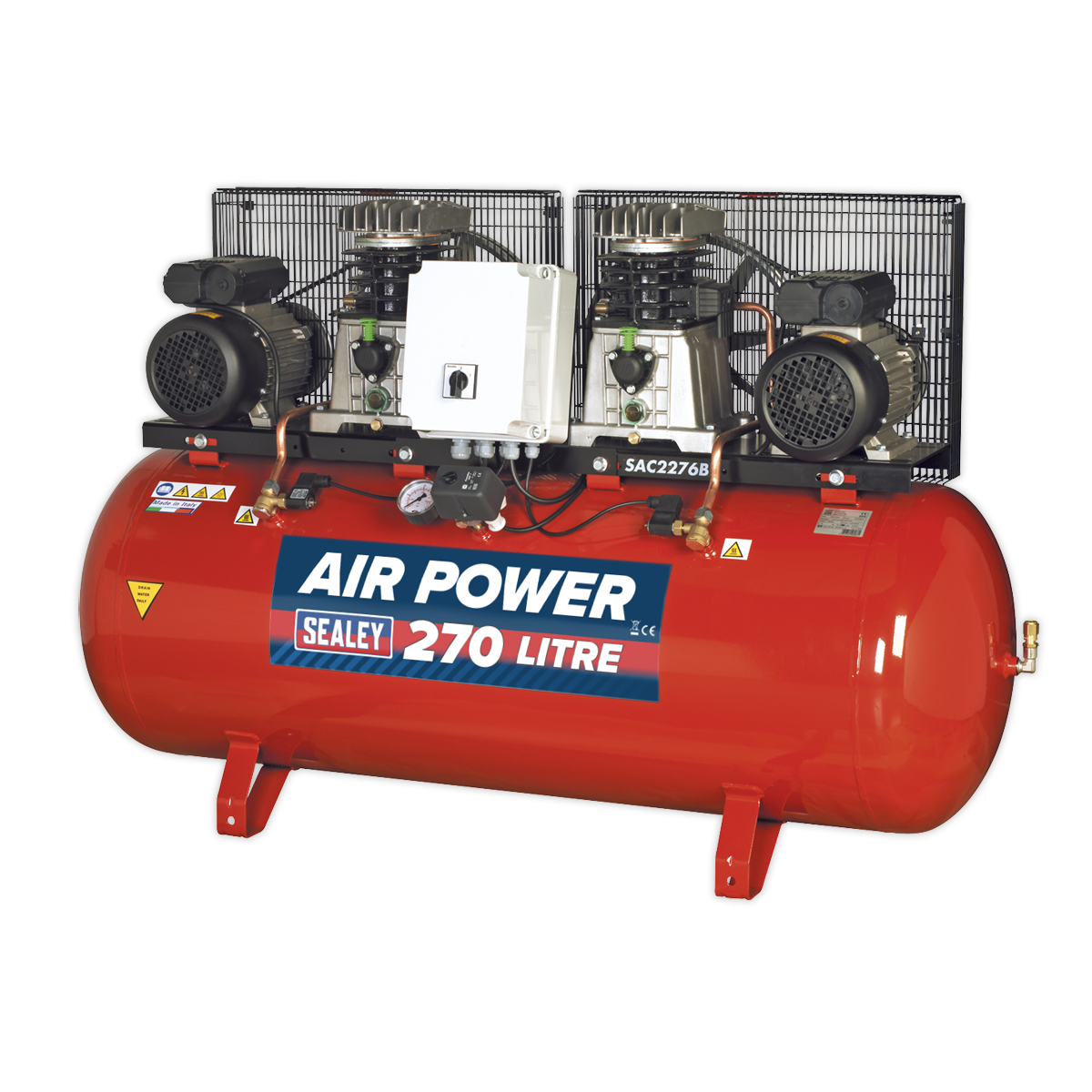

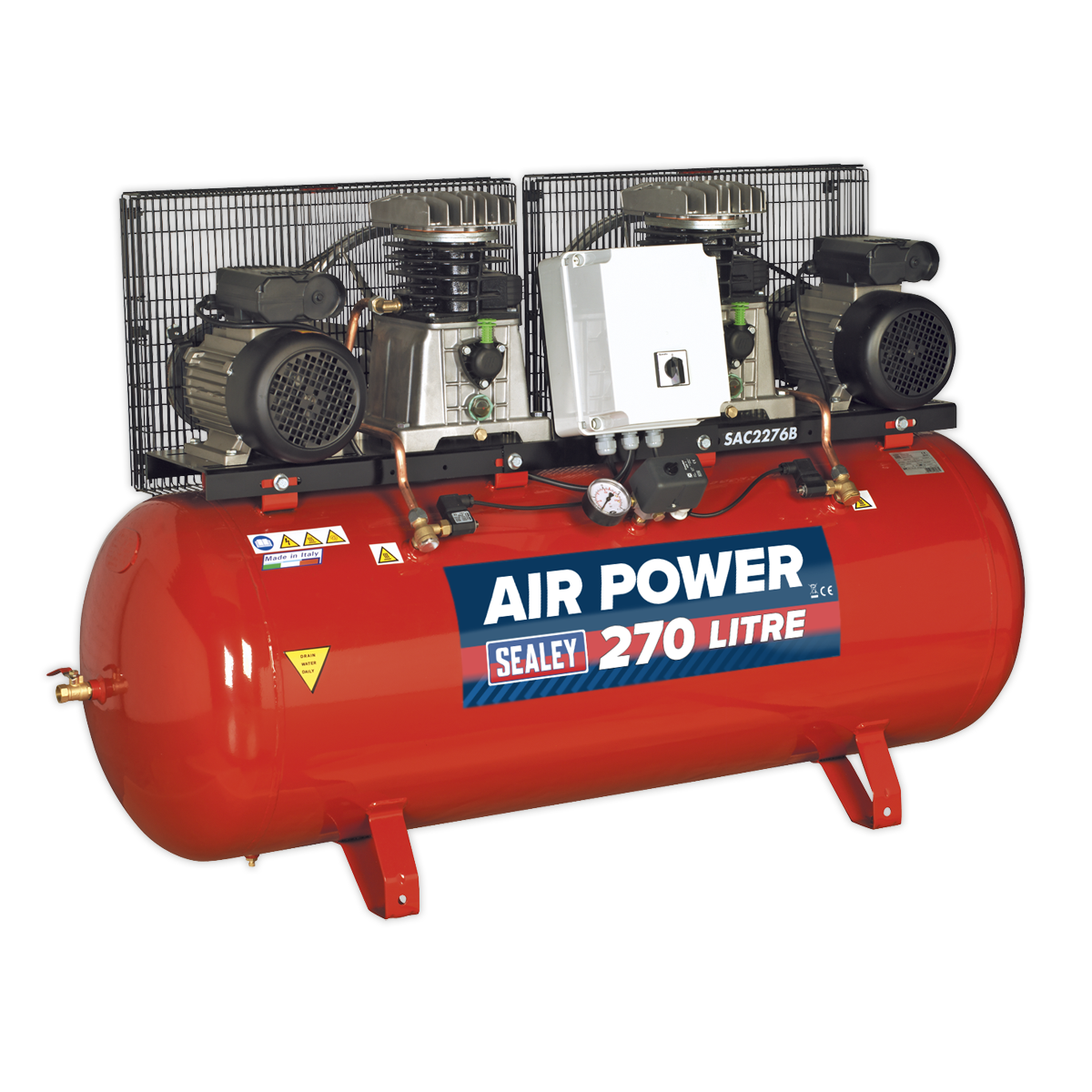

Sealey SAC2276B Air Compressor 270L Belt Drive 2 x 3hp with Cast Cylinders

Product Number: SAC2276B

£3,309.53 £3,244.64

BUY NOW

ADD TO CART

Variations

SAC3203B

SAC1153B

SAC1203B

Click on the button below to find the right air compressor

Air Compressor Finder

Sealey SAC2276B Air Compressor 270L Belt Drive 2 x 3hp with Cast Cylinders is a high-output single-phase compressor aimed at professional workshops with substantial air requirements. Two genuine 3hp motors drive twin belt pumps with full cast cylinders and alloy heads, combining to deliver 30cfm (850L/min) air displacement and 21.8cfm (618L/min) free air delivery at up to 145psi (10bar). Twin capacitors and a centrifugal switch aid trouble‑free starting on a 230V 32A supply, and a dedicated control box provides stepped start‑up to reduce inrush current. Heavy-duty drive guards protect the belts and flywheels, which are designed to force cooling air over the pumps. The 270L receiver provides extensive storage for multiple outlets and continuous tool use. With full CE certification, test certificates and operating/maintenance manual, the SAC2276B is ideal as a main air plant in busy garages, bodyshops and light industrial workshops.

Key Features:

Air Displacement: 30cfm(850L/min).
Maximum Free Air Delivery: 21.8cfm(618L/min).
Maximum Pressure: 145psi(10bar).
High output unit suitable for the professional workshop.
Fitted with two genuine 3hp motors and two identical pumps.

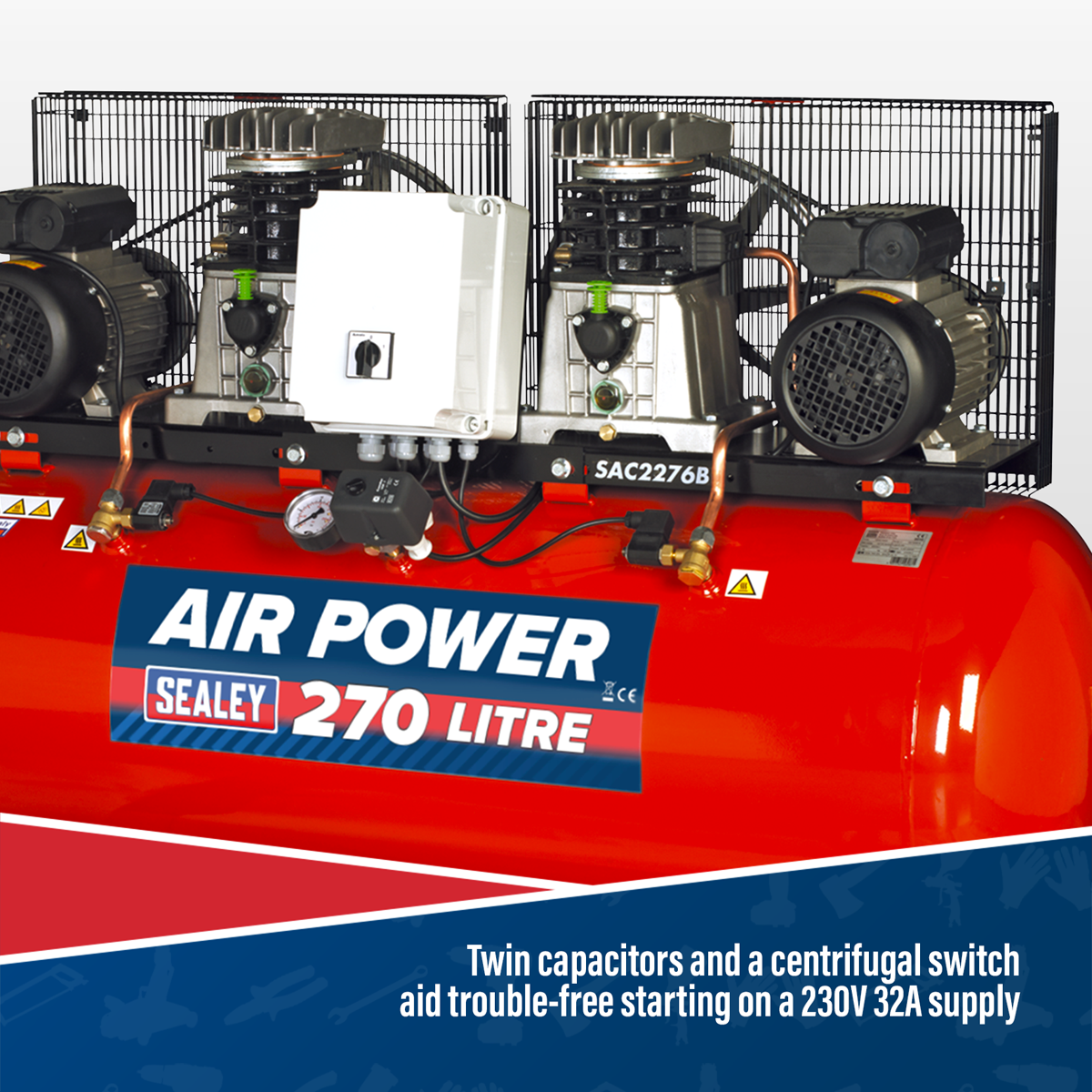

Twin capacitors and a centrifugal switch aid trouble-free starting on a 230V 32A supply.

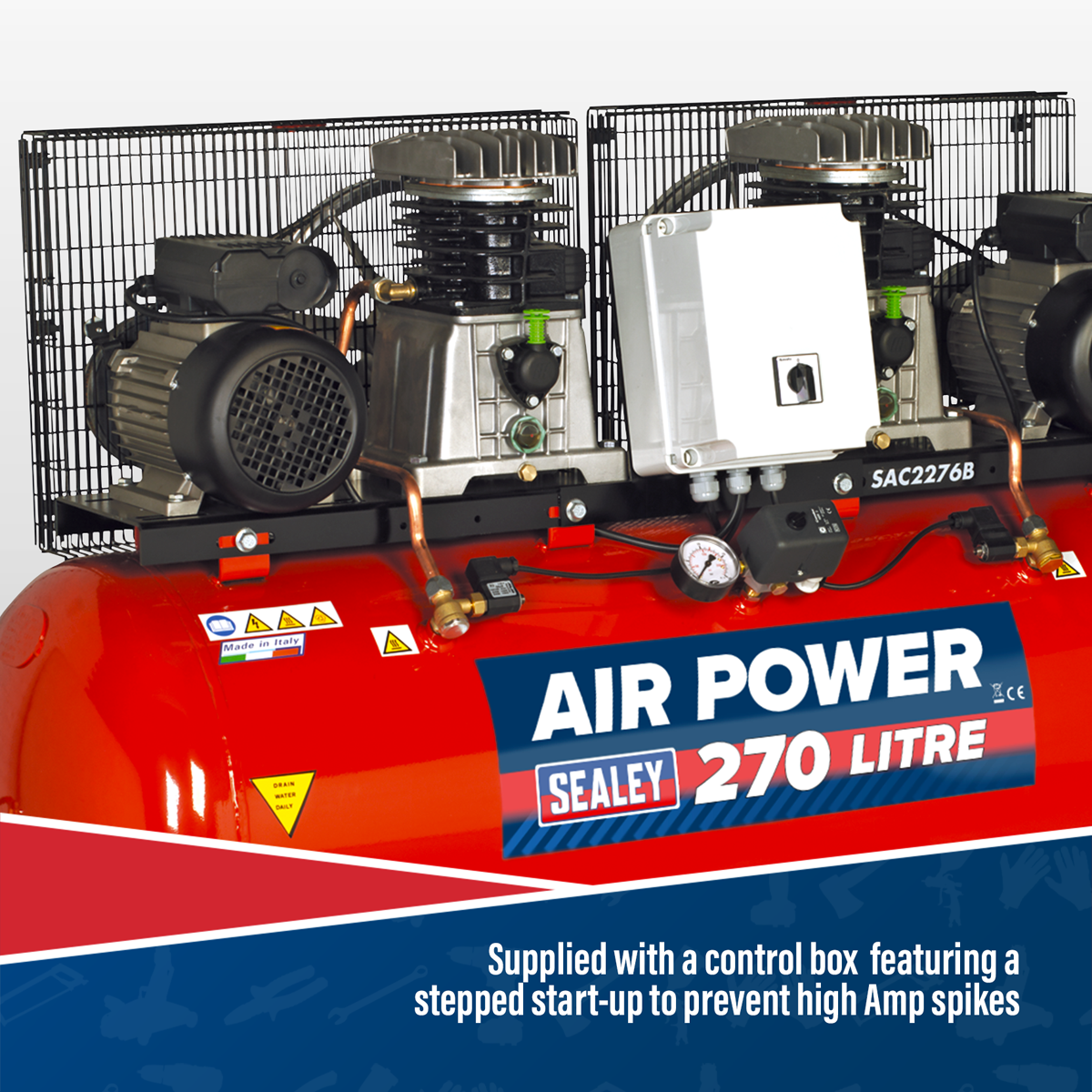

This unit is supplied with a control box featuring a stepped start-up to prevent high Amp spikes.
Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

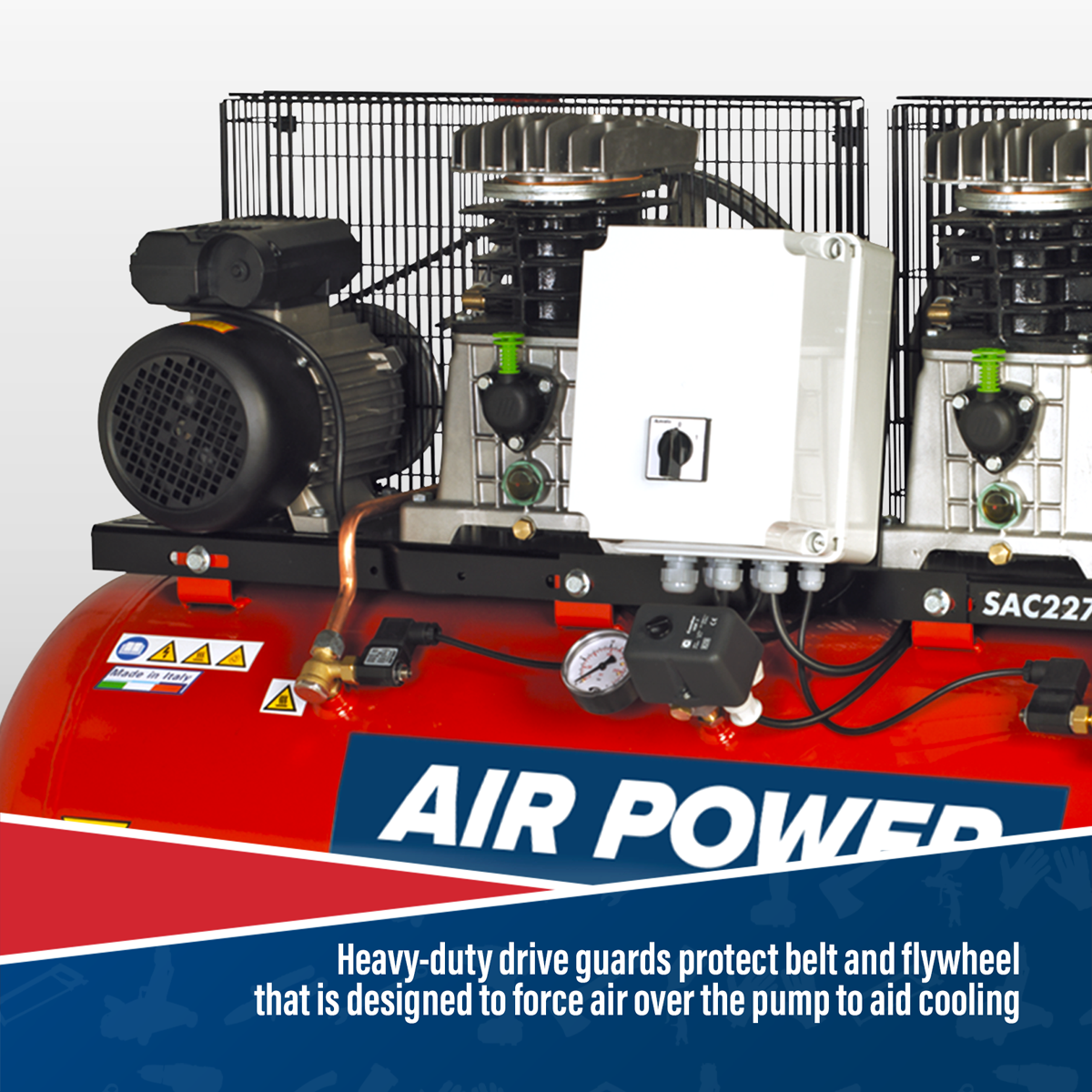

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

About PartsForMachines:

PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

BUY NOW

ADD TO CART

Model No	SAC2276B
Air Displacement cfm(L/min)	30(850)
Brand	Sealey
Maximum Free Air Delivery cfm(L/min)	21.8(618)
Maximum Pressure	145psi(10bar)
Minimum Rated Supply	32A
Motor Output	3hp (x2)
Nett Weight	150kg
Oil Capacity	2 x 0.72L
Outlet	3/4"BSP Female Tap
Phase	1ph
Receiver Capacity	270L
Size (W x D x H)	1550 x 540 x 960mm
Speed	1280rpm
Supply	230V/32A

BUY NOW

ADD TO CART

Engine Parts	Product Number	Product Name	Recommended Units	Product Price

BUY NOW

ADD TO CART

Hi, I'm Simon, your PartsForMachines product expert.

Checking fit, size, power, or compatibility?

Ask your question — I’ll cut through the jargon.

Thinking

Disclaimer: This chat uses AI and may be inaccurate or incomplete. Always verify details on the product page, datasheets and on equipment manual. For precise advise, contact our customer support.

Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Use promo code "LFTH1" to get Additional 1% OFF

Question about this product? Click here

Compare with Similar products	Compare SIP 05302 PX3/200-SRB Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £778.45 £763.19 2% OFF Free delivery in Channel Island ADD	Compare SIP 06323 VN3/150-SB Vertical Belt Drive Compressor,Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar £934.15 £915.83 2% OFF Free delivery in Channel Island ADD	Compare SIP 05308 PX4/200B Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £891.72 £874.24 2% OFF Free delivery in Channel Island ADD	Compare SIP 06585 TN7.5/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £1,694.20 £1,660.98 2% OFF Free delivery in Channel Island ADD	Compare SIP 05251 B3800/270 Tandem Compressor,Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £2,524.52 £2,475.02 2% OFF Free delivery in Channel Island ADD	Compare SIP 06335 VN5.5/150-TB Vertical Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar £1,446.27 £1,417.91 2% OFF Free delivery in Channel Island ADD	Compare SIP 06583TN5.5/200 Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £1,342.96 £1,316.63 2% OFF Free delivery in Channel Island ADD	Compare SIP 06587 TN10/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £2,614.91 £2,563.64 2% OFF Free delivery in Channel Island ADD	Compare SIP 06291 ISBD7.5/270 Super Electric Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 11 Bar £1,987.33 £1,948.36 2% OFF Free delivery in Channel Island ADD	Compare SIP 06295 ISBD10/270 Super Electric Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 11 Bar £3,137.90 £3,076.37 2% OFF Free delivery in Channel Island ADD	Compare SIP 06297 ISBD15/500 Super Electric Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 11 Bar £4,393.06 £4,306.92 2% OFF Free delivery in Channel Island ADD	Compare SIP 04328 ISKP7/50 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,250.82 £1,226.29 2% OFF Free delivery in Channel Island ADD	Compare SIP 04330 ISKP7/150 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,472.83 £1,429.93 3% OFF Free delivery in Channel Island ADD	Compare SIP 04331 ISKP7/150ES Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,608.36 £1,576.82 2% OFF Free delivery in Channel Island ADD	Compare SIP 04444 ISHP5.5/50 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,291.31 £1,265.99 2% OFF Free delivery in Channel Island ADD
Technical Specification
PRODUCT NUMBER	05302	06323	05308	06585	05251	06335	06583	06587	06291	06295	06297	04328	04330	04331	04444
Input Supply		230	230	400	230	415	400	400	400	400	400
Motor Power		2.2		5.6	2.2	4.1	4.1	7.5	5.6	7.5	11.2
Warranty		24	24	24	24	24	24	24	24	24	24	24	24	24	24
Maximum Pressure (bar)	0	10	0	10	10	10	10	10	11	11	11	10	10	10	10
Free AirDelivery (FAD)	0	8.5	0	25	22	18	18	28	20.5	25	40.7	11	11	11	11
Noise Level	0	96	97	0	0	97	0	0	0	0	0	0	0	0	0
Maximum Pressure (psi)	0	145	0	145	145	145	145	145	160	160	160	150	150	150	150
Piston Displacement (CFM)		13	18	34	32	24	24	42	31	38	61.5	16	16	16	15
Piston Displacement (litres/min)		368	510	963	906	680	680	1189	878	1076	1744	453	453	453	425
Show More

Technical

Q 1. What are the key specifications of the Sealey SAC2276B compressor?

A. It is a 270 litre, 3hp belt-drive compressor designed for professional workshops.

Q 2. How much air delivery does the SAC2276B provide?

A. It offers 30cfm displacement and 21.2cfm maximum free air delivery, supporting high air demand.

Q 3. What maximum pressure can this 270 litre compressor achieve?

A. The unit operates up to 145psi, about 10bar, suitable for many industrial applications.

Q 4. How is the pump constructed to handle heavy-duty use?

A. It uses heavy-duty full cast cylinders with alloy heads to improve cooling and durability.

Q 5. How does the belt guard and flywheel design improve operation?

A. Heavy-duty drive guards protect moving parts while directing airflow over the pump for cooling.

Q 6. For which environments is the SAC2276B particularly appropriate?

A. It suits professional workshops and sites needing high air volumes from a single compressor.

Q 7. Which related Sealey compressors are variants of SAC2276B?

A. Variants include SAC1103B, SAC1153B, SAC1203B, SAC1276B, SAC15030B, SAC1503B, SAC1903B, SAC20030B, SAC2103B, SAC2153B, SAC2203B, SAC3103B, SAC3153B and SAC3203B.

Q 8. What is the receiver capacity of this model?

A. The compressor has a 270 litre receiver, offering substantial air reserves for continuous usage.

Q 9. Why might workshops choose this 270 litre compressor over smaller capacities?

A. Its larger receiver and higher free air delivery better support simultaneous multi-tool operation.

Q 10. What electrical supply is required for the SAC2276B?

A. It operates on 230V single-phase with an appropriate higher-rated supply as specified.
