Product Number: APT517

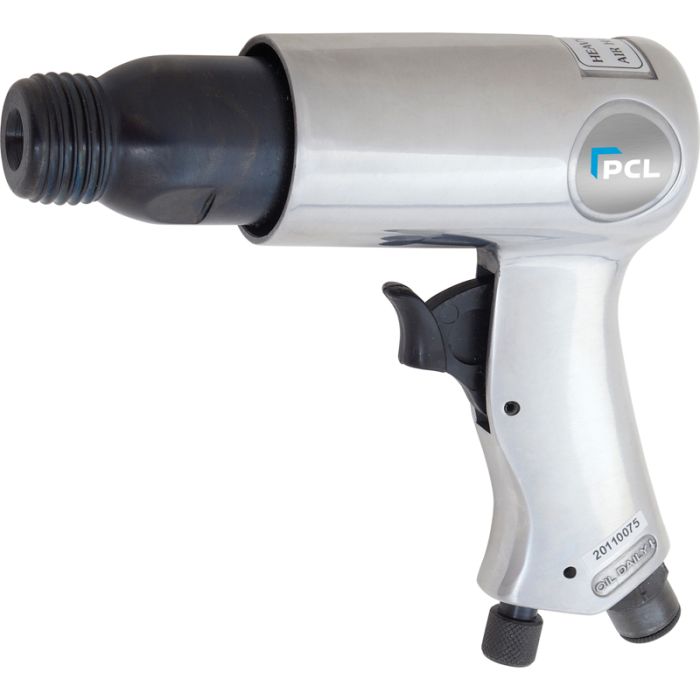

Worn chisels and slow retainer changes cost time at the bench. The PCL APT517 is a general purpose air hammer designed for cutting, punching, and chipping tasks, with a coil spring retainer that allows fast and easy chisel changes — making it well suited to body shop work including rust removal.
The APT517 is built around a 2 5/8 in (3 mm) stroke mechanism and accepts chisels with a 10–11 mm shank opening. A positive action trigger gives controlled operation, while the rear exhaust is routed through the handle to direct spent air away from the work area. Air consumption is 6.2 cfm (176 l/min) and a minimum hose size of 3/8 in (10 mm) is required. The air inlet is 1/4 in BSP.
The tool registers a sound level of 104 dBa and a vibration figure of 15.14 m/s². It delivers 3,000 blows per minute via the 2 5/8 in stroke and measures 175 mm in length, with a product weight of 1.5 kg. The PCL APT517 is manufactured by PCL — Sheffield UK manufacture since 1938, part of HORNGROUP.
Product Features :
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Brand | PCL |
|---|---|
| Product Weight (Kg) | 1.5 |
| Air Tool Type | Air Hammer |
| Air Consumption | 6.2 cfm / 176 l/min |
| Minimum Hose Size | 3/8 in / 10 mm |
| Air Inlet | 1/4" |
| Sound | 104 dBa |
| Vibration (m/s²) | 15.14 |
| Mechanism | 2 5/8 in / 3 mm Stroke |
| Blows/Impacts Per Minute | 3000 rpm |
| Length (mm) | 175 |
| EAN | 5014875190297 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
APS517/RSG | PCL APS517/RSG Retaining Spring for APT517 | 1 Unit |
£19.34
£18.96
|
Add |
Standard Delivery: £4.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 90245000 Heavy Duty Vibro Impact Air Hammer
£953.21
£934.52
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 90206000 Vibro Impact Air Hammer
£383.87
£376.34
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 90245000 | APS234/HMR | 90206000 | 8941071500 | 8941071601 | 8941071101 |
| Type | Air Hammer | Air Hammer | Air Hammer | Air Hammer | Air Hammer | |
| Capacity (L) | 210 | 11 | 8.7 | 6.9 | ||
| Length (mm) | 90 | 290 | 19 | 19 | 19 | |
| Maximum Pressure (bar) | 2 | 2 | 3 | 3 | 3 | |
| Stroke | 2200 bpm | 89 mm | 67 mm | 67 mm | ||
| Weight (kg) | 6.3 | 2.2 | 88 | 1.7 | ||
A. The APT517 is the PCL Air Hammer. The PCL APT517 is a general purpose air hammer designed for cutting, punching, and chipping tasks, with a coil spring retainer that allows fast and easy chisel changes — making it well suited to body shop work including rust removal.
A. Air Hammer.
A. Yes — this is a genuine PCL product, supplied under the PCL brand of Pneumatic Components Ltd, Sheffield, UK.
A. 6.2 cfm / 176 l/min.
A. 104 dBa.
A. 15.14.
A. 1.5.
A. 3/8 in / 10 mm.
A. designed for cutting, punching, and chipping tasks, with a coil spring retainer that allows fast and easy chisel changes — making it well suited to body shop work including rust removal.
