Product Number: 8941071101
Variations

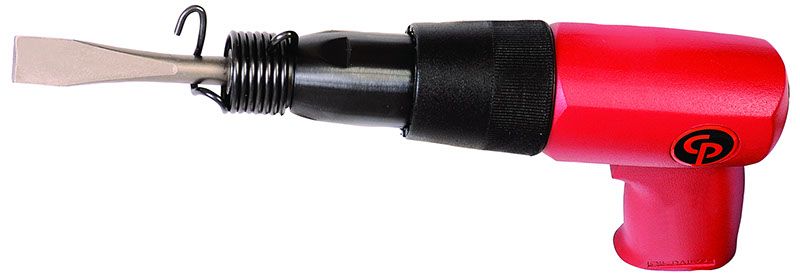

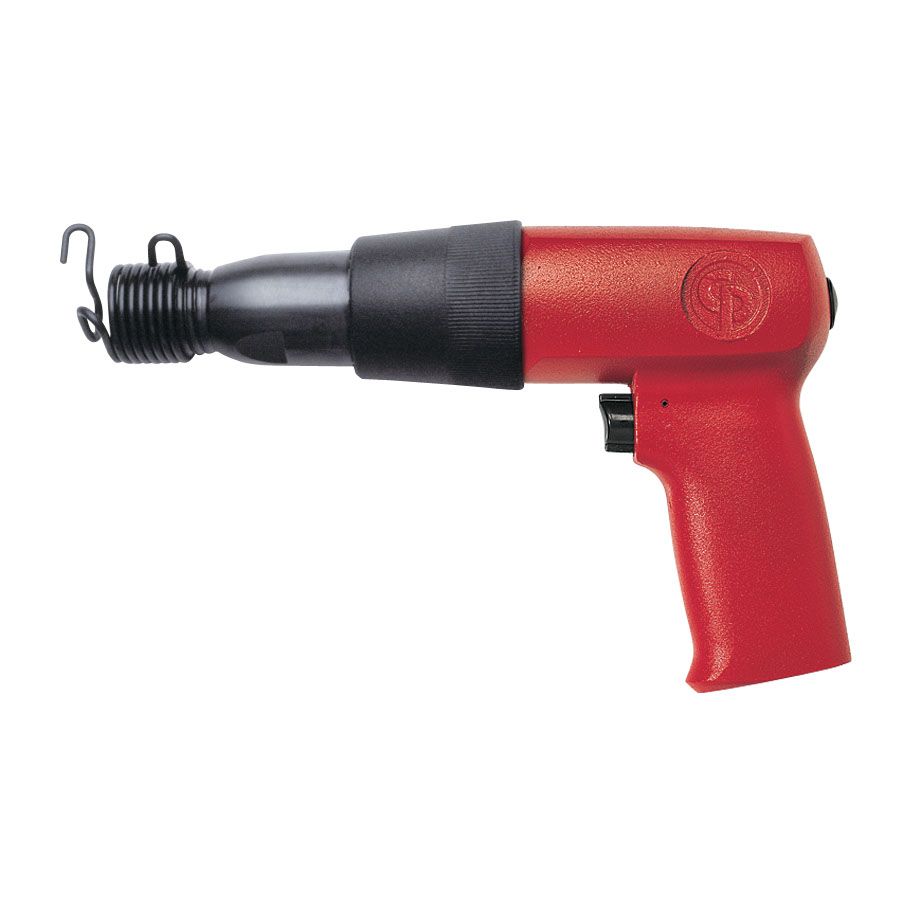

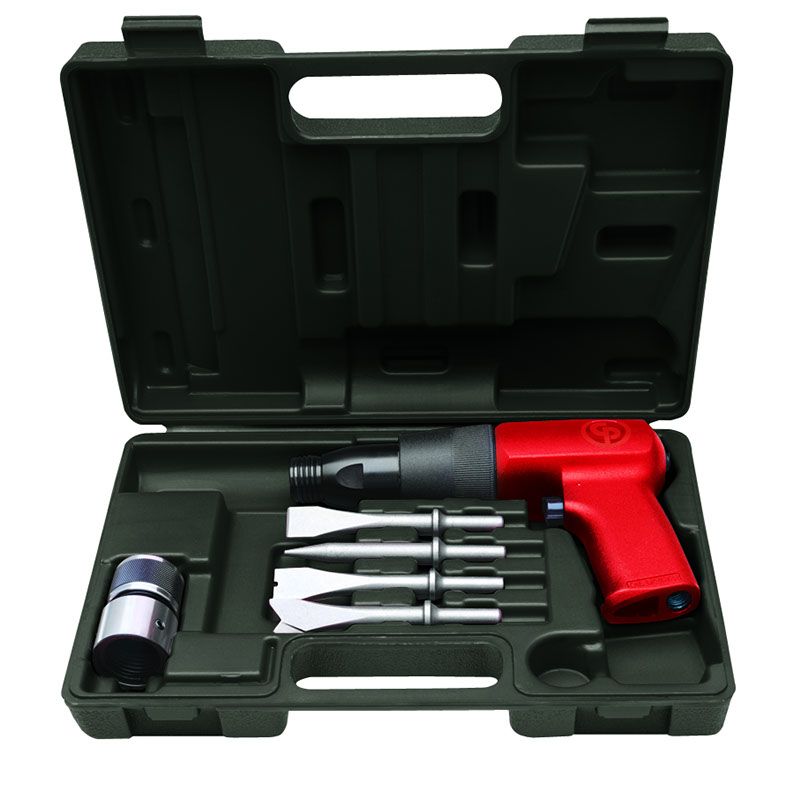

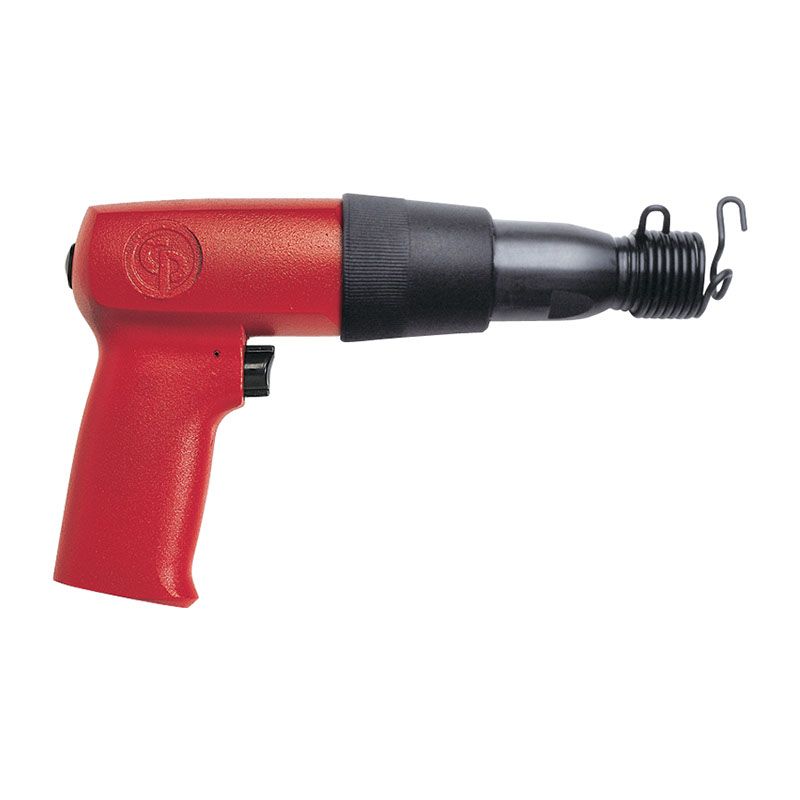

Delivering exceptional power-to-weight performance, the Chicago Pneumatic CP7110 is the go-to choice for professionals who demand reliability and precision from their pneumatic tooling. This chicago pneumatic air hammer combines a compact 230 mm body length with a lightweight 1.7 kg design, reducing operator fatigue during extended use without sacrificing the hitting force needed to tackle demanding applications. The 19 mm bore diameter and 67 mm stroke work in harmony to produce consistent, controlled impact energy, making this cp air hammer a trusted companion across automotive, fabrication, and metalworking environments. Fitted with a 0.401'' (10.2mm) round shank retainer, the CP7110 accepts a wide range of standard air chisel accessories, giving technicians the versatility to switch between chiselling, cutting, and shaping tasks with ease. An air consumption rate of 6.9 l/s at load ensures the tool performs efficiently on most workshop compressor setups, while the robust internal components are engineered to withstand the rigours of daily professional use. The air inlet thread provides a secure, leak-free connection to standard pneumatic supply lines, supporting consistent performance throughout the working day. Whether tackling panel beating, bolt breaking, or gasket removal in a busy automotive workshop, or working through tough metal fabrication jobs on the shop floor, this pneumatic chisel hammer delivers the durability, balance, and impact consistency that experienced tradespeople rely on to get the job done right.
Product Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Bore diameter | 19 mm |
|---|---|
| Length (L) | 230 mm |
| Stroke | 67 mm |
| Weight | 1.7 kg |
| Air consumption at load | 6.9 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Blow per minute | 3200 |
| Chisel shank | Round |
| Chisel shank diameter (in) | 0.401 |
| Chisel shank diameter (mm) | 10.2 |
| Energy | 7.2 J |
| Max rivet size (in) | 1/4 |
| Max rivet size (mm) | 6.4 |
| Max rivet size steel (in) | 3/16 |
| Max rivet size steel (mm) | 4.8 |
| Starting system | Trigger |
| Sound Power | 109 dB(A) |
| Uncertainty vibration-K | 2.9 m/s² |
| Vibration | 6 m/s² |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
6158040960 | Chicago Pneumatic - Flat Chisel Shank Hex 3/4'' - 6158040960, Replacement Air Chisel | 1 Unit |
£48.66
£47.24
|
Add |
|
90245300 | Sykes Pickavant 90245300 TIE-ROD HAMMER BIT | 1 Unit |
£198.58
£194.69
|
Add |
|
90237500 | Sykes Pickavant 90237500 VIBRO IMPACT EXHUAST CHISEL SET | 1 Unit |
£108.22
£106.10
|
Add |
|
90236200 | Sykes Pickavant 90236200 VIBRO IMPACT CHISEL - CHISEL SEPATATOR | 1 Unit |
£101.80
£99.80
|
Add |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 90206000 Vibro Impact Air Hammer
£383.87
£376.34
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 90245000 Heavy Duty Vibro Impact Air Hammer
£953.21
£934.52
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 8941171101 | 90206000 | APS234/HMR | 8941071601 | APT517 | 90245000 |
| Air Consumption(CFM) | 6.2 | |||||
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase.
Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification.
Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Standard UK Mainland delivery is 3–5 working days.
A. The CP7110 delivers 3200 blows per minute with 7.2 J impact energy.
A. The CP7110 has a 19 mm bore, 230 mm body length, and 67 mm stroke, weighing 1.7 kg.
A. The CP7110 requires a 1/4" air inlet at 6.3 bar max working pressure, consuming 6.9 l/s at load.
A. The CP7110 is part of a product family - variants include related models with differing specs available at partsformachines.com.
A. Refer to the CP7110 product page on partsformachines.com for the full list of comparable models and alternatives.
A. The CP7110 is engineered for professional industrial use - ideal for chipping, scaling, and demolition work.
A. The CP7110 features an aluminium alloy body for durability and reduced tool weight.
A. The CP7110 requires a minimum 10mm (3/8") hose at 5m or 3/8" (16ft) for full performance at 6.3 bar working pressure.
A. The CP7110 consumes 6.9 l/s at load via 1/4" NPT inlet at 6.3 bar.
