Product Number: 6151740170

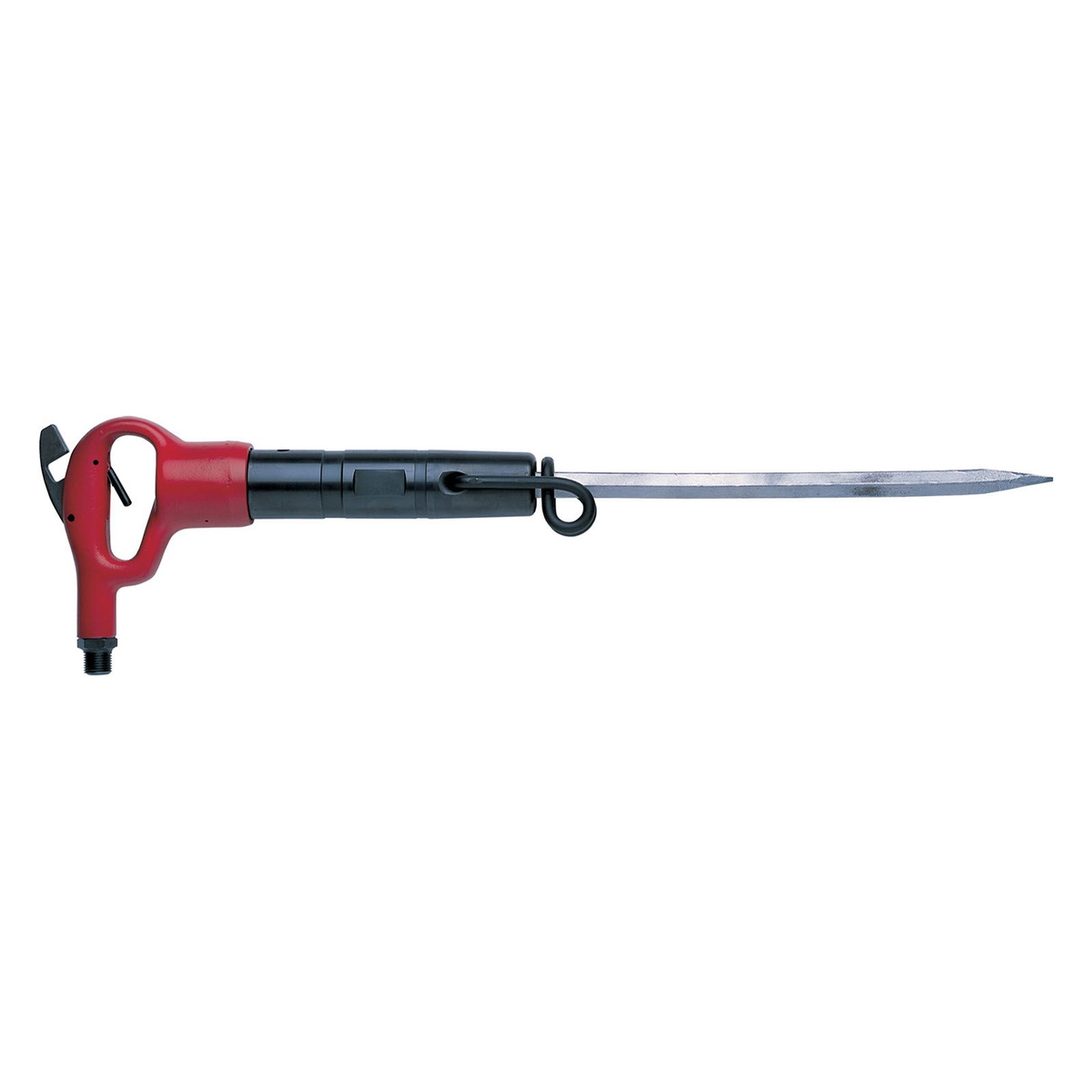

The Chicago Pneumatic GV5 air hammer delivers serious industrial striking power for professionals who demand reliability and performance on the toughest jobs. Engineered for heavy-duty applications, this robust pneumatic hammer produces an impressive 2,400 blows per minute combined with 12 joules of impact energy, giving operators the sustained force needed to tackle demanding chipping, scaling, and demolition work with confidence. Designed around a 3/4 inch (19.01mm) hex chisel shank, the GV5 accepts a wide range of standard hex tooling, making it a versatile addition to any workshop or job site toolkit. The hex shank configuration ensures secure tool retention and efficient energy transfer from the air chisel to the workpiece, reducing operator fatigue during extended use. As a professional-grade cp air hammer, it is built to the exacting standards Chicago Pneumatic is renowned for, offering consistent output even under continuous industrial load. The pneumatic chisel design makes the GV5 equally at home in automotive body shops, fabrication facilities, foundries, and construction environments. Whether operators are removing weld spatter, breaking concrete, descaling metal surfaces, or working on heavy castings, this air chisel hammer provides the raw power and dependability needed to get the job done efficiently. For workshops and contractors seeking a high-performance pneumatic hammer that balances power output with durability, the Chicago Pneumatic GV5 represents an outstanding investment in long-term productivity.
Product Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Blow per minute | 2400 |
|---|---|
| Chisel shank | Hex |
| Chisel shank diameter (in) | 3/4 |
| Chisel shank diameter (mm) | 19.01 |
| Energy | 12 J |
| Starting system | Trigger |
| Sound Power | 106 dB(A) |
| Sound Pressure | 95 dB(A) |
| Uncertainty vibration-K | 7.9 m/s² |
| Vibration | 19.8 m/s² |
| Bore diameter | 28 mm |
| Length (L) | 385 mm |
| Stroke | 52.5 mm |
| Weight | 5.1 kg |
| Air consumption at load | 8.3 l/s |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
6158040960 | Chicago Pneumatic - Flat Chisel Shank Hex 3/4'' - 6158040960, Replacement Air Chisel | 1 Unit |
£48.66
£47.24
|
Add |
|
90245300 | Sykes Pickavant 90245300 TIE-ROD HAMMER BIT | 1 Unit |
£198.58
£194.69
|
Add |
|
90237500 | Sykes Pickavant 90237500 VIBRO IMPACT EXHUAST CHISEL SET | 1 Unit |
£108.22
£106.10
|
Add |
|
90236200 | Sykes Pickavant 90236200 VIBRO IMPACT CHISEL - CHISEL SEPATATOR | 1 Unit |
£101.80
£99.80
|
Add |
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 6151740230 | 6151740250 | 6151740270 | 6151740300 |
| Blows Per Minute(BPM) | 3800 | 3000 | 3000 | 2200 |
| Stroke Length(mm) | 30 | 35.6 | 35.6 | 39 |
| Chisel Shank Size(mm) | 12.7 | 12.7 | 12.7 | 12.7 |
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase.
Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification.
Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Standard UK Mainland delivery is 3–5 working days.
A. The GV5 delivers 2400 blows per minute with 12 J impact energy via a 13 mm Hex chisel shank. It weighs 5.1 kg.
A. The GV5 sound pressure is 95 dB(A) - HAV and noise at work regulations apply for prolonged use.
A. The GV5 requires a 1/2" air inlet at 6.3 bar max working pressure, consuming 8.3 l/s at load.
A. The GV5 is part of a product family - variants include related models with differing specs available at partsformachines.com.
A. The GV5 is engineered for professional industrial use - ideal for chipping, scaling, and demolition work.
A. The GV5 features an aluminium alloy body for durability and reduced tool weight.
A. The GV5 requires a minimum 10mm (3/8") hose at 5m or 3/8" (16ft) for full performance at 6.3 bar working pressure.
A. When using the GV5: wear hearing protection (95 dB(A)), and appropriate eye protection.
A. The GV5 consumes 8.3 l/s at load via 1/2" NPT inlet at 6.3 bar.
