Product Number: 02-026
The CCL 02-026 is a 24-volt normally open contact mini relay with an integrated 15A blade fuse, designed for commercial vehicle and heavy-duty electrical circuits requiring a compact, fused switching solution.
The relay operates on a normally open contact configuration, meaning the circuit remains open until the relay is energised. It is rated for a continuous load of 15A when the contact is closed, with a peak load capacity of 30A, making it suitable for moderate auxiliary loads in 24V vehicle electrical systems. Four 6.3mm blade terminals provide straightforward connection to standard automotive wiring, and an optional metal mounting bracket is available for installations requiring fixed housing.
The integrated 15A blade fuse is a practical feature that provides overcurrent protection within the relay unit itself, reducing wiring complexity and component count in the circuit. The compact mini form factor is suited to space-constrained environments typical of commercial vehicle dashboards, fuse boxes, and auxiliary control panels.
This relay is offered as a standalone unit. For installations requiring a mounting solution, the optional metal bracket should be sourced separately. The CCL 02-026 is a general replacement part suitable for 24V automotive and commercial vehicle electrical applications where a normally open, fused mini relay is specified.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

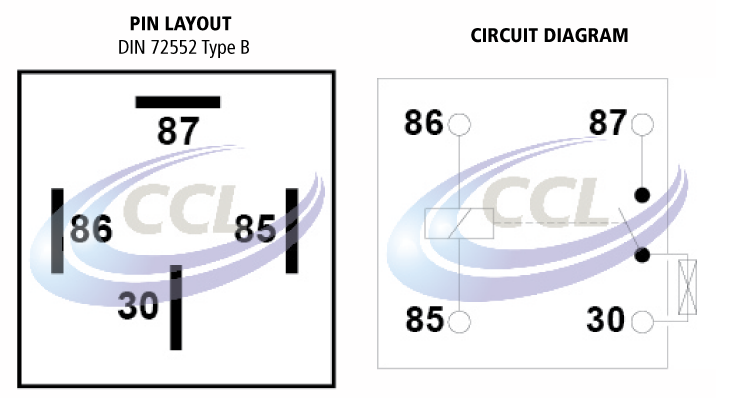

| TYPE | 4 Pin normally open contact Mini Relay with 30A Blade Fuse. |
|---|---|
| VOLTAGE | 24V |
| CONTINUOUS LOAD | 15A |
| PEAK LOAD | 30A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 4 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The CCL 02-026 is rated at 24 volts. It supports a continuous load of 15A and a peak load of 30A when the contact is closed.
A. The 02-026 uses a normally open contact configuration, meaning the circuit is open at rest and closes when the relay coil is energised.
A. The relay has four 6.3mm blade terminals, which are compatible with standard automotive push-on connectors.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
