Product Number: 02-009
The CCL 02-009 is a twin relay unit mounted on a fixed metal bracket, designed to provide dual-circuit switching capability in 12V electrical systems. Configured with normally open contacts, it is built for applications where two independent relay circuits are required within a single, securely mounted assembly.
Each of the two relays features a 4-pin configuration with 6.3 mm terminals, delivering a continuous load capacity of 40A and a peak load capacity of 40A per relay. The normally open contact arrangement means each circuit remains open at rest and closes only when the relay coil is energised, making this unit well suited to load-switching duties where a positive activation signal is required.
The fixed metal bracket provides a rigid mounting solution, ensuring both relays are held firmly in position and simplifying installation in engine bays, cab environments, or electrical panels where space and vibration resistance are important considerations. The 6.3 mm terminal arrangement supports straightforward wiring connections to standard automotive and commercial vehicle harness connectors.
As a general replacement part, the CCL 02-009 is stocked for direct fitment into 12V systems requiring twin-relay switching. For single-relay variants or alternative configurations within the CCL relay range, please refer to the full CCL relay catalogue on the PartsForMachines platform.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 2 x 4 Pin normally open contact Mini Relay on a Fixed Metal bracket. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD | 2 x 40A |
| PEAK LOAD | 2 x 40A |
| BRACKET TYPE | Fixed Metal |

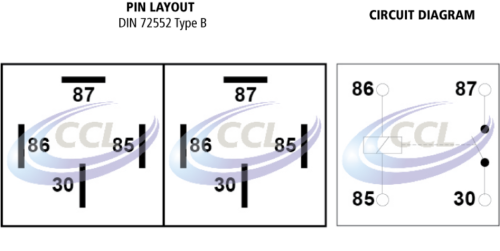

| TERMINAL SIZES | 4 x 6.3mm + 4 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-011 | 02-012 | 02-013 |
A. Both relays on the CCL 02-009 use a normally open contact configuration, meaning each circuit is open at rest and closes when the relay coil is energised.
A. Each of the two relays carries a continuous load rating of 40A and a peak load rating of 40A.
A. The CCL 02-009 is rated for 12V electrical systems.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
