Product Number: 02-004

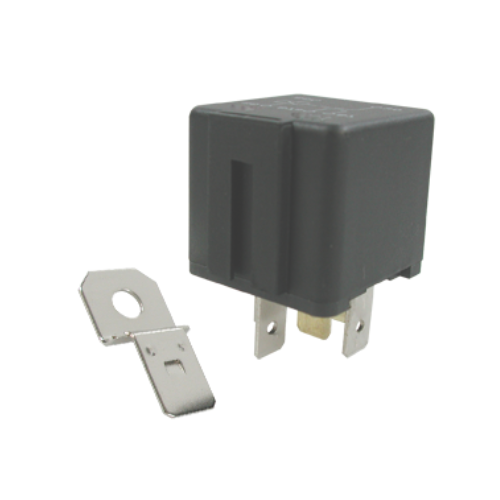

The CCL 02-004 is a 24V normally open contact twin output relay designed for use in demanding electrical systems across commercial vehicles, plant, and agricultural machinery. Rated at a continuous load of 2x10A and a peak load of 2x20A, it is built to handle dual-circuit switching requirements with a single switching contact in a compact mini relay format.
The relay features five 6.3mm terminals, providing secure and reliable connections across both output circuits. An optional metal bracket is available for applications requiring rigid panel or chassis mounting, adding installation flexibility where positional security is a priority. With a 24V operating voltage, it is matched to 24V electrical architectures as found in heavy commercial vehicles and many plant machines.
This relay is supplied as a standalone general replacement part. An optional metal mounting bracket is available separately if required for the installation.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

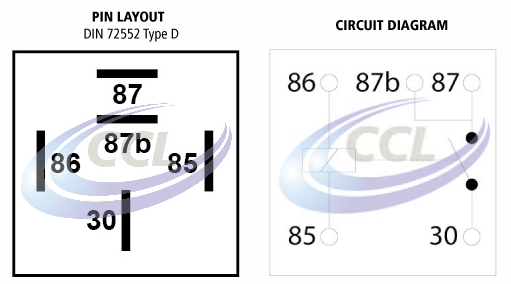

| TYPE | 5 Pin normally open contact twin output mini relay. |
|---|---|
| VOLTAGE | 24V |
| CONTINUOUS LOAD | 2 x 10A |
| PEAK LOAD | 2 x 20A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 5 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 | 02-013 |
A. The CCL 02-004 operates at 24V and is rated for a continuous load of 2×10A per output, with a peak load of 2×20A per output.
A. The relay has five terminals, each measuring 6.3mm.
A. A metal mounting bracket is listed as optional and is not included as standard with the relay.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
