Product Number: 02-010
The CCL 02-010 is a 24V normally open contact mini relay with a fixed metal bracket, designed as a direct-fit replacement compatible with Hella applications. Built for demanding electrical circuits in commercial vehicles and heavy-duty machinery, it delivers reliable switched-power control wherever a compact, robust relay is required.

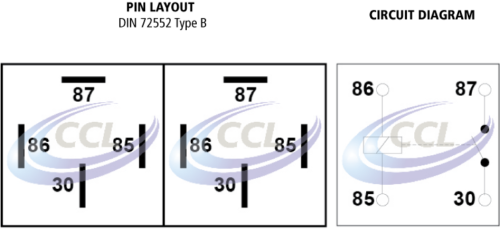

The 02-010 features twin output capability, providing two independent switched circuits from a single relay body. Each output is rated at a continuous load of 2 x 20A and a peak load of 2 x 40A, making it well suited to higher-current auxiliary circuits. Connection is via four 6.3mm blade terminals, a widely used standard that ensures straightforward installation using common wiring hardware.
The fixed metal bracket is integrated into the relay body, allowing secure panel or chassis mounting without the need for a separate relay socket or base. The normally open contact configuration means the circuit remains open until the relay coil is energised, providing a clean, fail-safe switching action appropriate for ignition-controlled or auxiliary load circuits operating on 24V systems.
As this is a new listing, no variant siblings are currently referenced. Buyers requiring a 12V equivalent or alternative contact configuration should contact PartsForMachines directly to confirm availability across the CCL relay range.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 2 x4 Pin normally open contact Mini Relay on a Fixed Metal bracket. |
|---|---|
| VOLTAGE | 24V |
| CONTINUOUS LOAD | 2 x 20A |
| PEAK LOAD | 2 x40A |
| BRACKET TYPE | Fixed Metal |
| TERMINAL SIZES | 4 x 6.3mm + 4 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-011 | 02-012 | 02-013 |
A. The CCL 02-010 is a 24V relay with a normally open contact configuration, meaning the circuit remains open until the coil is energised.
A. Each output is rated at a continuous load of 2 x 20A and a peak load of 2 x 40A.
A. The 02-010 provides twin output — two independent switched circuits — and connects via four 6.3mm blade terminals.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
