Product Number: 02-003
The CCL 02-003 is a 12V normally open twin output (single-contact) mini relay, designed for dual-circuit switching applications in automotive and light commercial electrical systems. With a continuous load rating of 2x20A and a peak load rating of 2x40A across its twin outputs, it is built to handle demanding switched loads reliably in 12V environments.
The 02-003 features four 6.3mm blade terminals arranged in a compact mini relay footprint. Its normally open configuration means the output circuits remain open until the relay is energised, making it well suited to applications where a control signal must activate two independent output loads simultaneously. An optional metal mounting bracket is available for installations where secure panel or chassis mounting is required.
With no vehicle-specific fitment data available at the time of listing, this relay is best specified by its electrical characteristics: 12V coil voltage, twin 20A continuous outputs, and standard 6.3mm terminal sizing. Installers should verify circuit requirements against the rated load figures before installation.
This product is supplied as a standalone general replacement relay. As a CCL product it represents the brand's commitment to straightforward, specification-led electrical components for the automotive aftermarket.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

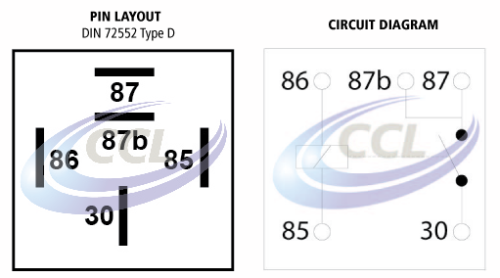

| TYPE | 5 Pin normally open contact twin output Mini Relay. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD | 2 x 20A |
| PEAK LOAD | 2 x 40A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 5 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 | 02-013 |
A. The 02-003 is rated at 2×20A continuous load and 2×40A peak load across its twin outputs.
A. The 02-003 is a 5-pin relay with four 6.3mm blade terminals.
A. The 02-003 operates on a 12V coil voltage.
