Product Number: 02-007
The CCL 02-007 is a 5-pin, 12V changeover mini relay designed for use in automotive, commercial vehicle, plant, and agricultural electrical circuits where a compact, reliable switching solution is required. Its changeover configuration allows a single relay to handle both normally-open and normally-closed circuit switching, making it well suited to a wide range of vehicle electrical applications.
The relay is rated for a continuous load of 40A on the normally-open contact and 30A on the normally-closed contact, with peak load ratings of 80A and 60A respectively. Five terminals, each measuring 6.3mm, provide secure and positive connections throughout. An optional metal mounting bracket is available separately for applications where the relay requires a fixed installation point.

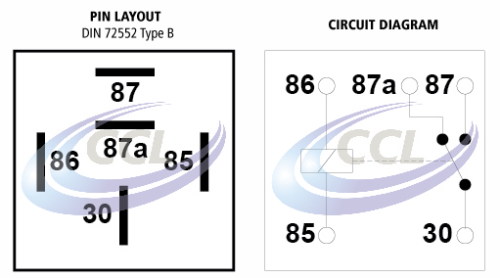

All five terminals follow the standard 12V relay pin assignment, ensuring straightforward integration into new or replacement electrical installations. The compact mini-relay form factor is widely used across the automotive and vehicle aftermarket, and the 6.3mm terminal size is compatible with commonly available relay connector housings and wiring harnesses.
The CCL 02-007 is a standalone general replacement part suitable for a broad range of 12V electrical systems. For related relay accessories such as mounting bases or connector harnesses, see the additional accessories available within the CCL relay range on the PartsForMachines platform.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 5 Pin changeover Mini Relay. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD (OPEN) | 40A |
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 30A |
| PEAK LOAD (OPEN) | 80A |
| PEAK LOAD (CLOSED / SWITCHED) | 60A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 5 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Mini Relay - 5 Pin, Changeover, 12V, CCL - 02-007
|
Open Now |
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 | 02-013 |
A. The CCL 02-007 is rated for a continuous load of 40A on the normally-open contact and 30A on the normally-closed contact. Peak load ratings are 80A and 60A respectively.
A. The CCL 02-007 has 5 pins, each with a 6.3mm terminal, providing a secure connection to standard automotive relay wiring harnesses.
A. The 02-007 is rated for 12V DC operation, making it suitable for standard 12V automotive and vehicle electrical systems.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
