Product Number: 02-048
The CCL 02-048 is a 12V mini relay featuring normally open twin output (twin contact) operation with built-in resistor protection, designed for use in automotive, commercial vehicle, and related 12V electrical systems where dual-output switching with circuit protection is required.
The relay operates as a normally open design, meaning the output circuit is open at rest and closes when the coil is energised. Twin contact output allows two separate circuits to be switched simultaneously from a single control signal, making the 02-048 well suited to applications where a single trigger must activate two downstream loads at once. The integrated resistor protection suppresses voltage spikes generated when the coil de-energises, helping to protect sensitive control electronics in the vehicle circuit.
Electrically, the 02-048 is rated at 12V and provides a continuous load capacity of 25A when contacts are closed, with a peak load capacity of 50A. It is fitted with 5 terminals, each accepting a 6.3mm connector, in keeping with standard automotive wiring practice. The compact mini relay format is suitable for installation in tight spaces within a vehicle fuse and relay box or custom wiring harness.
No variant siblings are listed for this product. For other relay types and voltages within the CCL range, refer to the wider 02-series programme.
The CCL 02-048 is supplied as a single relay unit. No warranty period is stated in the available product data.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

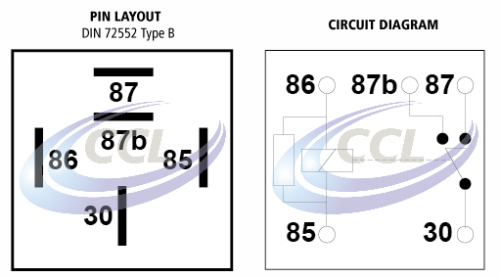

| TYPE | 5 Pin normally open contact twin output twin contact Mini Relay with Resistor protection. |
|---|---|
| VOLTAGE | 12 |
| CONTINUOUS LOAD | 2 x 25A |
| PEAK LOAD | 2 x 50A |
| BRACKET TYPE | None |
| TERMINAL SIZES | 5 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The 02-048 is rated for a continuous load of 25A with contacts closed, and a peak load of 50A.
A. The 02-048 operates at 12V DC, making it suitable for standard automotive and light commercial vehicle electrical systems.
A. The relay has 5 terminals, each accepting a 6.3mm connector, which is the standard size used widely in automotive wiring applications.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
