Product Number: 02-053
The CCL 02-053 is a 12V normally open contact mini relay with built-in resistor protection, designed for high-load switching applications in automotive, commercial vehicle, and plant electrical systems. Rated at a continuous load of 80A and a peak load of 160A, this relay is built to handle demanding switching duties where circuit protection and reliability are essential.

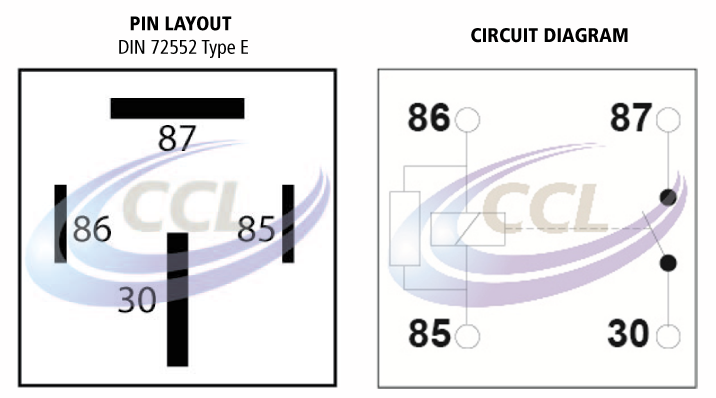

Constructed as a 4-pin open contact relay, the 02-053 features a normally open configuration, meaning the circuit remains open at rest and closes when the relay is energised. The integrated resistor protection suppresses voltage spikes generated when the relay coil is de-energised, safeguarding sensitive electronic components elsewhere in the circuit. Connections are made via 2 x 6.3mm terminals, a widely used standard in automotive and vehicle electrical wiring.
With a continuous load rating of 80A and a peak capacity of 160A, the CCL 02-053 is well suited to switching heavy electrical loads such as auxiliary lighting, cooling fans, starter circuits, and high-draw accessories. Its compact mini relay format allows installation in space-restricted loom positions and relay boxes without compromising on load capacity.
This relay is a standalone general replacement component for 12V vehicle electrical systems. Where further vehicle-specific fitment details are required, buyers are advised to verify relay specifications against their existing circuit requirements.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 4 Pin normally open contact High Load Mini Relay with Resistor Protection |
|---|---|
| VOLTAGE | 12 |
| CONTINUOUS LOAD | 80A |
| PEAK LOAD | 160A |
| BRACKET TYPE | None |
| TERMINAL SIZES | 2 x 6.3mm, 2 x 9.5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The CCL 02-053 is rated at 80A continuous load and 160A peak load when the contact is closed, making it suitable for high-draw vehicle electrical circuits.
A. The integrated resistor protection suppresses the voltage spike produced when the relay coil is de-energised. This protects other electronic components in the circuit from transient voltage damage.
A. The relay uses 2 x 6.3mm terminals and is a 4-pin normally open contact design. The normally open configuration means the circuit is open at rest and closes when the relay coil is energised.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
