Product Number: 02-055
The CCL 02-055 is a normally open contact, high load mini relay with integrated resistor protection, rated at 24V and designed for demanding electrical switching duties in commercial vehicles, plant, and heavy-duty automotive applications. With a continuous load rating of 40A and a peak load capacity of 80A when closed, it is built to handle high-current circuits reliably without damage to connected components.

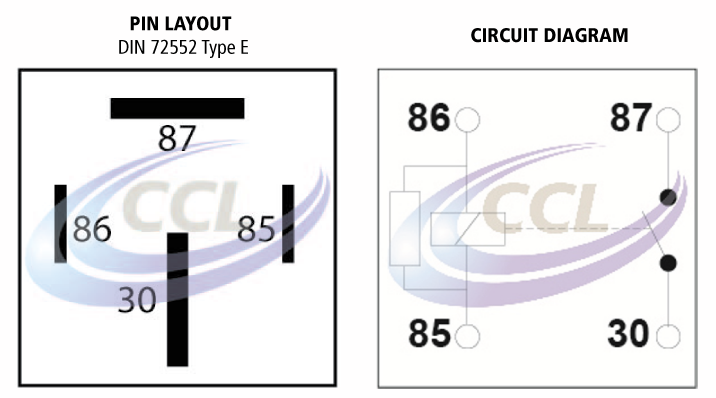

The relay features a 4-pin configuration with two 6.3mm terminals, providing a straightforward and secure connection to industry-standard wiring harnesses. The built-in resistor protection suppresses voltage spikes generated when the coil de-energises, safeguarding sensitive electronic modules and control units from transient damage - a critical consideration in modern vehicle electrical systems.
As a general-purpose 24V relay, the CCL 02-055 is well suited to switching loads such as horns, cooling fans, fuel pumps, auxiliary lighting, and other high-current circuits across 24V platforms. The normally open contact configuration ensures the circuit remains open until the relay coil is energised, making it appropriate for applications requiring positive switching control.
This relay is supplied as a standalone unit. CCL offers a range of complementary relay bases and accessories; please refer to the associated product listings for compatible mounting solutions.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | 4 Pin Normally Open Contact High Load Mini Relay With Resistor Protection |
|---|---|
| Voltage | 24 |
| Continuous Load | 40A |
| Peak Load | 80A |
| Bracket Type | None |
| Terminal Sizes | 2 X 6.3Mm, 2 X 9.5Mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The CCL 02-055 is rated at 24V with a continuous load capacity of 40A and a peak load capacity of 80A when the contacts are closed.
A. It uses a normally open contact configuration, meaning the circuit remains open until the relay coil is energised.
A. The relay is a 4-pin unit fitted with two 6.3mm terminals, compatible with standard automotive and commercial vehicle wiring connectors.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
