Product Number: 02-014
The CCL 02-014 is a 5-pin, 12-volt changeover (twin contact) mini relay designed for switching applications across automotive, commercial vehicle, plant, and agricultural electrical systems. With dual output contacts, it provides flexible circuit control in a compact form factor suitable for a wide range of 12V installations.
The relay delivers a continuous load rating of 40A on the open contact and 30A on the closed contact, with peak load capacity of 80A and 60A respectively. Connection is made via five 6.3mm spade terminals, and an optional metal mounting bracket is available for secure panel or chassis installation.
As a changeover relay, the 02-014 switches between two output circuits from a single input trigger, making it well suited to applications requiring either-or switching - such as fan direction control, lighting circuits, or auxiliary power management - where a standard single-output relay would not suffice.
No fitment data is currently listed for this product; suitability should be confirmed against the installer's circuit requirements and vehicle electrical specifications before ordering.
The CCL 02-014 is supplied as an individual relay unit. Please refer to the PartsForMachines listing for full specification details.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Voltage | 12V |
|---|---|
| Continuous (Open / Closed) | 40A / 30A |
| Peak (Open / Closed) | 80A / 60A |
| Operation Life | 100,000 Operations At 40A |
| Contact Material | Ag + Cu |

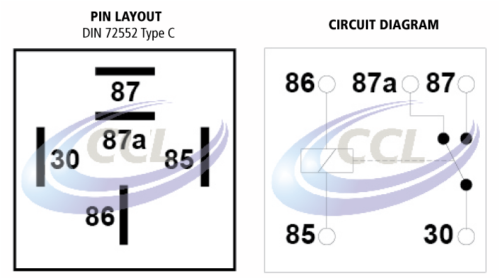

| Output Contact | 2 (No 87 & 87A) |
| Terminal Sizes | 5 X 6.3Mm |
| Ambient Temperature | -40°C To +85°C |
| Case Material | Pa66 |
| Bracket Type | Optional Metal |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The CCL 02-014 is a 5-pin, 12-volt changeover relay, also described as a twin contact or twin output relay. It switches between two output circuits from a single trigger input, making it suitable for applications requiring either-or circuit switching.
A. The relay is rated at 40A continuous on the open contact and 30A continuous on the closed contact. Peak load capacity is 80A on the open contact and 60A on the closed contact.
A. The relay features five 6.3mm spade terminals, which are a widely used size in 12V automotive and commercial vehicle wiring harnesses.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
