Product Number: 02-013

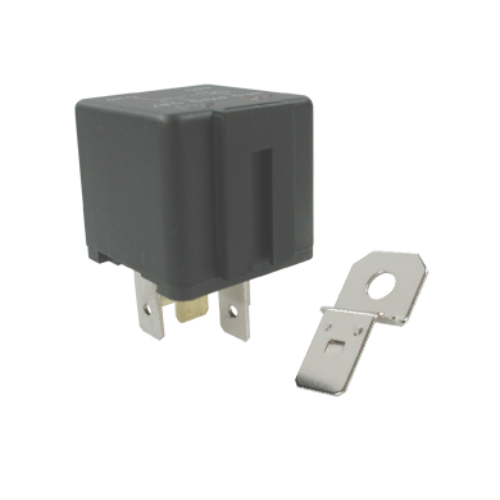

The CCL 02-013 is a 12V normally open twin output (twin contact) mini relay designed for automotive, commercial vehicle, and general electrical switching applications where a compact, dual-circuit relay solution is required. With a continuous load rating of 2x20A and a peak load rating of 2x40A, it is well suited to demanding switching duties across a wide range of 12V electrical systems.
The relay features five terminals, each rated at 6.3mm, providing secure and reliable connections to standard automotive wiring harnesses. The twin contact configuration allows two separate circuits to be switched simultaneously from a single relay, reducing wiring complexity and component count in multi-output installations. An optional metal mounting bracket is available for applications where secure panel or chassis mounting is preferred.
With no permanent vehicle fitment data available at the time of listing, the 02-013 should be selected on the basis of its electrical specification - 12V operating voltage, normally open contact arrangement, 2x20A continuous and 2x40A peak load capacity, and 6.3mm terminal sizing - to confirm suitability for the intended circuit.
This relay is supplied as a standalone unit. The optional metal mounting bracket is not included in the standard supply and must be sourced separately where required.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 5 Pin normally open contact twin output twin contact Mini Relay. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD | 2 x 20A |
| PEAK LOAD | 2 x 40A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 5 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-011 |
A. The 02-013 has a continuous load rating of 2×20A and a peak load rating of 2×40A across its twin output contacts.
A. The relay has five terminals, each sized at 6.3mm, compatible with standard automotive connector fittings.
A. The 02-013 is rated for 12V operation.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
