Product Number: 02-032
The CCL 02-032 is a 12V changeover high load relay with resistor protection, designed for heavy-duty switching applications across automotive, commercial vehicle, plant, and agricultural electrical systems. With a 5-pin configuration and changeover operation, it is built for circuits that demand reliable, high-current control under sustained working conditions.
The 02-032 delivers a continuous open-contact load rating of 100A and a continuous closed-contact load rating of 60A, with peak load capacities of 120A (open) and 100A (closed). Resistor protection is integrated into the relay design, guarding connected circuits against voltage spikes generated during switching - a critical safeguard for sensitive engine management and ancillary electrical systems. Terminals are 2 x 6.3mm, suited to standard automotive blade connector systems.
As a maxi-format relay, the 02-032 is well suited to high-draw loads such as starter circuits, high-power lighting, cooling fans, and other auxiliary systems where smaller relay formats would be inadequate. The changeover contact arrangement provides both normally open and normally closed switching paths from a single unit, offering wiring flexibility not available with single-throw relays.
This product is supplied as a standalone general replacement part. No fitment data is currently available in source records; suitability should be confirmed against circuit requirements and terminal specification before fitting.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

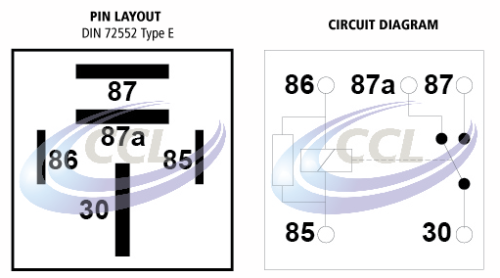

| TYPE | 5 pin changeover High Load Maxi Relay with Resistor protection. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD (OPEN) | 100A |
| CONTINUOUS LOAD (CLOSED/SWITCHED) | 60A |
| PEAK LOAD (OPEN) | 120A |
| PEAK LOAD (CLOSED / SWITCHED) | 100A |
| BRACKET TYPE | None |
| TERMINAL SIZES | 2 x 6.3mm, 3 x 9.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The 02-032 has a continuous load rating of 100A on the open contact and 60A on the closed contact. Peak load ratings are 120A (open contact) and 100A (closed contact).
A. Resistor protection refers to an integrated resistor within the relay that suppresses voltage spikes produced when the coil is de-energised during switching. This helps protect sensitive electronic components and circuits connected to the same system.
A. The relay is fitted with 2 x 6.3mm terminals, compatible with standard automotive blade connector systems.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
