Product Number: 02-037

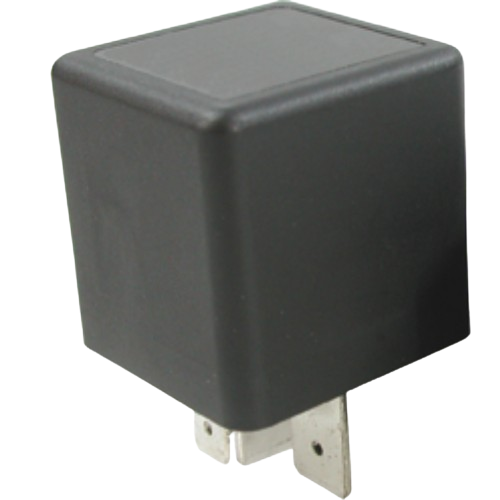

The CCL 02-037 is a normally open contact, high load Maxi Relay with resistor protection, rated at 24V and designed for heavy-duty switching applications in commercial vehicles, plant, and agricultural machinery. With a continuous load rating of 60A and a peak load rating of 120A, this relay is built to handle high-current circuits reliably under sustained operating conditions.

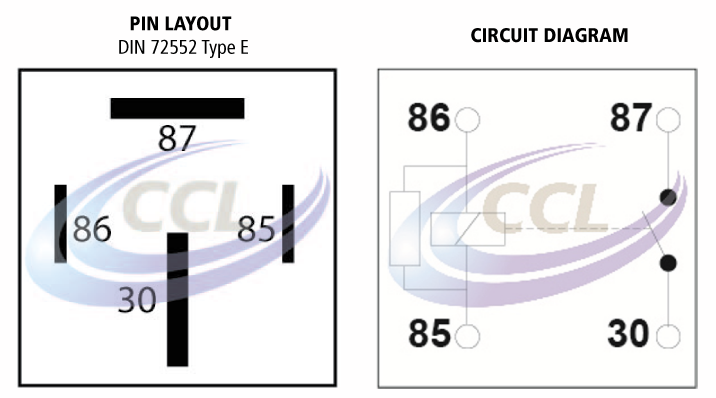

The resistor protection circuit suppresses voltage spikes generated when the relay coil is de-energised, helping to safeguard sensitive electronic components connected within the same circuit. The four-pin configuration uses two 6.3mm terminals, providing a straightforward wiring arrangement suited to standard Maxi relay installations.
As a normally open contact relay, the circuit remains open until the coil is energised, making it appropriate for control circuits where activation on demand is required. The high peak load capacity of 120A accommodates the inrush current typical of motors, solenoids, and high-draw accessories commonly found in 24V commercial and heavy equipment electrical systems.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | 4 Pin Normally Open Contact High Load Maxi Relay With Resistor Protection. |
|---|---|
| Voltage | 24 |
| Continuous Load | 60A |
| Peak Load | 120A |
| Bracket Type | None |
| Terminal Sizes | 2 X 6.3Mm, 3 X 9.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The 02-037 is rated at 60A continuous load and 120A peak load when the contact is closed, making it suitable for high-current 24V switching circuits.
A. The relay is designed for 24V electrical systems, as found in many commercial vehicles, plant machinery, and agricultural equipment.
A. A normally open contact means the circuit is open (no current flows) when the relay coil is not energised. The circuit closes only when the coil is activated, allowing current to pass through.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
