Product Number: 02-060
The CCL 02-060 is a 12V normally open contact high load relay supplied in a protective housing, designed for demanding electrical switching applications in automotive, commercial vehicle, and plant or agricultural machinery installations. With resistor protection built in, it is engineered to suppress voltage spikes that can otherwise damage sensitive electronic components when the relay de-energises.
The relay is rated for a continuous load of 40A on the open contact and 80A peak, making it well suited to high-current circuits such as lighting arrays, auxiliary power supplies, and motor switching. Where the relay is used in a closed-contact configuration, continuous and peak load ratings are 35A and 70A respectively. Five 6.3mm blade terminals provide a secure, industry-standard connection interface that accepts widely available spade connectors without modification.
Housing the relay in its own enclosure offers mechanical protection against ingress, vibration, and accidental contact - a practical advantage in underbonnet or chassis-mounted installations where space is shared with other components. An optional metal bracket is available to assist with fixed mounting where required.
No fitment-specific applications are available at this time; suitability should be confirmed against circuit voltage, load current, and terminal configuration for the intended installation. As a general replacement part, the 02-060 is appropriate wherever a 12V, 5-pin normally open maxi relay with resistor protection is specified.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

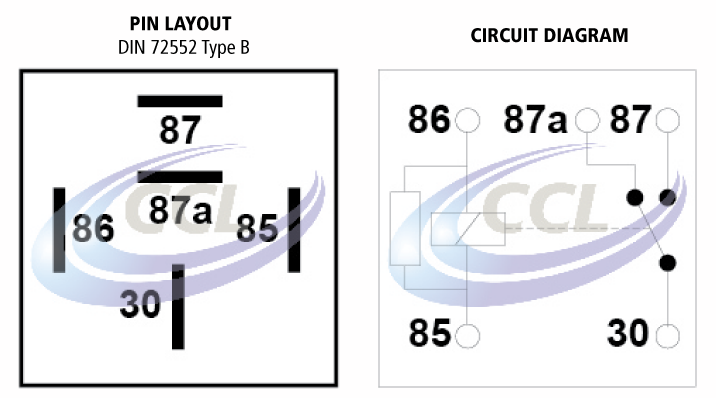

| TYPE | 5 Pin normally open contact High Load Maxi Relay (in housing) with resistor protection |
|---|---|
| VOLTAGE | 12 |
| CONTINUOUS LOAD (OPEN) | 40A |
| CONTINUOUS LOAD (CLOSED/SWITCHED) | 35A |
| PEAK LOAD (OPEN) | 80A |
| PEAK LOAD (CLOSED/SWITCHED) | 70A |
| BRACKET TYPE | Optional Metal |
| TERMINAL SIZES | 5 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. In a normally open contact configuration, the 02-060 is rated for 40A continuous and 80A peak. In a closed-contact configuration, the ratings are 35A continuous and 70A peak.
A. The relay operates at 12V DC.
A. It uses five 6.3mm blade terminals, providing a standard spade-connector interface.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
