Product Number: 02-035
The CCL 02-035 is a 24V changeover high load maxi relay with built-in resistor protection, designed for heavy-duty electrical switching applications in commercial vehicles, plant, and agricultural machinery operating on 24-volt systems.
Rated for continuous loads of 70A in the open circuit position and 30A in the closed circuit position, this maxi relay is built to handle demanding switching duties where standard relays would be insufficient. Peak load ratings of 200A (open) and 100A (closed) provide the headroom required when managing high-demand circuits such as starter motors, heavy lighting arrays, or auxiliary power feeds. The integrated resistor protection suppresses voltage spikes generated during coil de-energisation, reducing the risk of damage to sensitive control circuits and extending the service life of connected components.
The 5-pin changeover configuration allows the relay to switch between two output circuits from a single input signal - a versatile arrangement suited to applications where both normally open and normally closed switching paths are required. Terminal connectivity is provided via 2 x 6.3mm blade terminals, a widely adopted standard that ensures straightforward integration into existing loom connectors and relay bases without specialist tooling.
This product is a general replacement relay for 24V vehicle and machinery electrical systems. No fitment data is available for this SKU; verify suitability against your system voltage, load requirements, and terminal specification before ordering.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | 5 Pin Changeover High Load Maxi Relay With Resistor Protection |
|---|---|
| Voltage | 24V |
| Continuous (Open / Closed) | 70A / 30A |
| Peak (Open / Closed) | 200A / 100A |
| Operation Life | 100,000 Operations At 70A |
| Contact Material | Agsn02 |

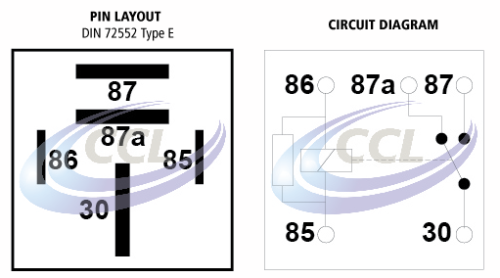

| Output Contact | 2 (No 87 & 87A) |
| Terminal Sizes | 3X 9.5Mm & 2X 6.3Mm |
| Ambient Temperature | -40°C To +85°C |
| Case Material | Nylon 46 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The 02-035 is rated for a continuous load of 70A in the open circuit position and 30A in the closed circuit position. Peak load ratings are 200A (open) and 100A (closed), making it suitable for high-demand 24V switching duties.
A. The integrated resistor protection suppresses voltage spikes that occur when the relay coil is de-energised. This protects sensitive downstream control circuits and electronic components from transient damage caused by back-EMF.
A. The 02-035 is a 5-pin changeover relay. Terminal connections are made via 2 x 6.3mm blade terminals, a standard size that is compatible with common relay base connectors and loom terminals.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
