Product Number: 02-028
The CCL 02-028 is a 24V Maxi changeover relay with integrated diode protection, designed for heavy-duty electrical switching applications in commercial vehicles, plant machinery, and agricultural equipment. Operating at 24 volts, it is built to handle the demanding load cycles typical of professional vehicle and machinery electrical systems.

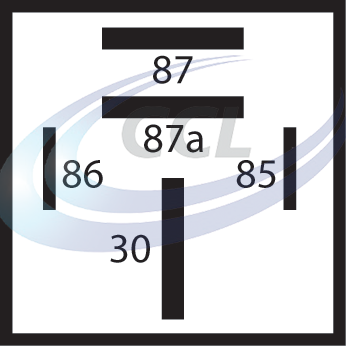

The 02-028 features a changeover configuration across five pins, delivering a continuous open-circuit load rating of 40A and a continuous closed-circuit load rating of 30A. For inrush and surge conditions, peak load capacity reaches 120A on the open circuit and 100A on the closed circuit. The integrated diode protection guards against voltage spikes and back-EMF, helping to protect sensitive electronic control modules and downstream circuitry from damage caused by inductive switching loads. Terminals are 2 x 6.3 mm, ensuring compatibility with standard automotive and commercial-vehicle wiring connectors.
As a Maxi-format relay, the 02-028 is suited to high-current circuits where a standard-size relay would be undersized. The changeover function allows a single relay to switch between two separate circuits, making it well suited to lighting rigs, auxiliary power distribution, and motor control applications where both normally-open and normally-closed switching paths are required.
For 12V applications or alternative relay configurations, additional CCL relay variants are available within the 02-series range.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | 5 Pin Changeover Mini Relay With Diode Protection. |
|---|---|
| Voltage | 24 |
| Continuous Load (Open) | 40A |
| Continuous Load (Closed / Switched) | 30A |
| Peak Load (Open) | 120A |
| Peak Load (Closed / Switched) | 100A |
| Bracket Type | None |
| Terminal Sizes | 2 X 6.3Mm, 3 X 9.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The CCL 02-028 is a 24V Maxi changeover relay with integrated diode protection, featuring a 5-pin configuration.
A. The 02-028 is rated at 40A continuous load on the open circuit and 30A continuous load on the closed circuit.
A. The relay is rated for a peak load of 120A on the open circuit and 100A on the closed circuit, covering inrush and surge conditions.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
