Product Number: 13-014
The CCL 13-014 is a 24V Changeover Micro Relay with Resistor Protection, designed for use across a broad range of commercial vehicle, plant, and automotive electrical systems that operate on a 24-volt supply. The relay provides a changeover switching configuration, making it suitable for applications where circuits must be both opened and closed from a single control point.
The 13-014 delivers a continuous load rating of 20A on the open circuit and 15A on the closed circuit, with peak load capacities of 40A and 30A respectively. Integrated resistor protection is built into the relay design, guarding connected components against voltage spikes and back-EMF generated when inductive loads switch off - a critical safeguard in vehicle electrical environments.
The relay features three 4.8mm terminals, providing a standard connection interface compatible with widely used relay socket and wiring configurations.
For applications requiring a 12V equivalent, or where alternative current ratings are needed, please refer to the broader CCL relay range available on the PartsForMachines platform.
The CCL 13-014 is supplied as a single relay unit. Warranty and further specification details are available in the product technical data.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 5 Pin changeover Micro Relay with Resistor protection |
|---|---|
| VOLTAGE | 24 |
| CONTINUOUS LOAD (OPEN) | 20A |
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 15A |
| PEAK LOAD (OPEN) | 40A |
| PEAK LOAD (CLOSED / SWITCHED) | 30A |
| BRACKET TYPE | None |

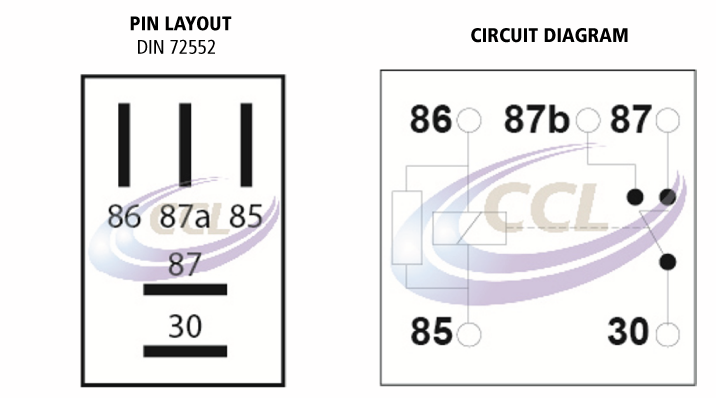

| TERMINAL SIZES | 3 x 4.8mm, 2 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The CCL 13-014 operates on a 24V supply. It has a continuous load rating of 20A on the open circuit and 15A on the closed circuit, with peak load ratings of 40A (open) and 30A (closed).
A. It is a Changeover Micro Relay with Resistor Protection. The changeover configuration allows a single relay to both open and close circuits from one control signal, and the integrated resistor protection guards against voltage spikes from inductive loads.
A. The relay is fitted with three 4.8mm terminals, providing a standard connection interface suitable for common relay socket and wiring harness configurations.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
