Product Number: 13-005
The CCL 13-005 is a 12V normally open contact micro relay with integrated resistor protection, designed for use in automotive, commercial vehicle, plant, and agricultural electrical systems where a compact, protected relay solution is required.
Built around a normally open (open contact) configuration, this micro relay activates the circuit only when energised, making it suitable for switching auxiliary loads cleanly and reliably. Resistor protection suppresses voltage spikes generated when the relay coil is de-energised, helping to safeguard connected electronic components and control modules from back-EMF damage. The relay operates on a 12V circuit and accepts two 4.8mm terminals, conforming to the standard four-pin micro relay footprint widely used across the automotive and mobile machinery industries.
With a continuous load rating of 40A and a peak load rating of 80A, the CCL 13-005 is capable of handling demanding switching duties including high-draw accessories, fan circuits, lighting, and solenoid loads. The four-pin layout is compatible with standard relay sockets and relay mounting bases, simplifying installation and future replacement.
The CCL 13-005 is supplied as a standalone relay unit. As part of the CCL electrical components range, it is backed by the quality and reliability expected of a specialist automotive and machinery parts supplier.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

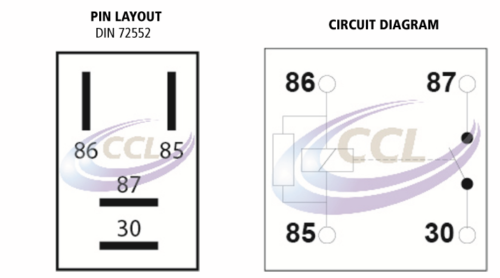

| TYPE | 4 Pin normally open contact Micro Relay with Resistor protection |
|---|---|
| VOLTAGE | 12 |
| CONTINUOUS LOAD | 40A |
| PEAK LOAD | 80A |
| BRACKET TYPE | None |
| TERMINAL SIZES | 2 x 4.8mm, 2 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The CCL 13-005 is rated for a continuous load of 40A and a peak load of 80A when the contact is closed.
A. The relay is fitted with two 4.8mm terminals, compatible with standard four-pin micro relay connectors and sockets.
A. Resistor protection suppresses the voltage spike — known as back-EMF — produced when the relay coil is de-energised. This helps protect sensitive electronic control modules and other components connected to the same circuit.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
