Product Number: 13-006
The CCL 13-006 is a 24V normally open contact micro relay with integrated resistor protection, designed for reliable switching duties in commercial vehicle and heavy-duty electrical systems. Its compact micro form factor suits installations where space is at a premium, while the 24V rating makes it appropriate for the electrical architectures found in trucks, buses, and larger plant machinery.

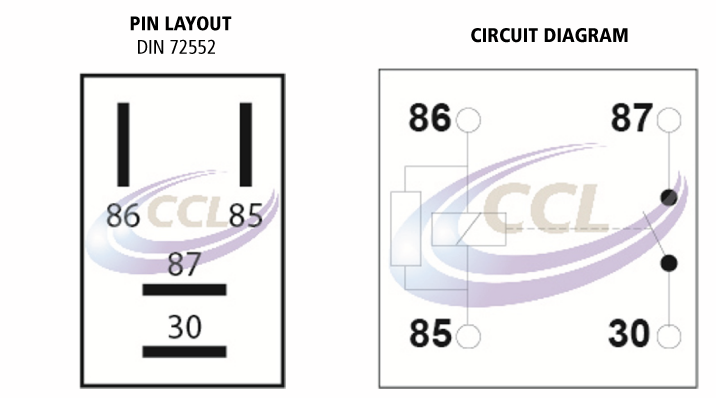

The relay features a normally open contact configuration, meaning the circuit remains open at rest and closes upon energisation. Resistor protection is incorporated into the design to suppress voltage spikes at switch-off, helping to protect sensitive electronic components elsewhere in the circuit. Four-pin connection provides straightforward wiring for standard relay applications.
Electrically, the CCL 13-006 is rated for a continuous closed load of 20A and a peak closed load of 40A, giving it the capacity to handle demanding ancillary circuits such as lighting, motors, and solenoids. Connections are made via two 4.8mm terminals, which are compatible with widely used push-on connector systems common across the automotive and commercial vehicle sectors.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | 4 Pin Normally Open Contact Micro Relay With Resistor Protection |
|---|---|
| Voltage | 24 |
| Continuous | 20A |
| Peak | 40A |
| Bracket Type | None |
| Terminal Sizes | 2 X 4.8Mm, 2 X 6.3Mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The CCL 13-006 is rated for 24V operation, making it suitable for 24V electrical systems as found in commercial vehicles, buses, and larger plant machinery.
A. The CCL 13-006 uses a normally open contact configuration — the circuit is open at rest and closes when the relay is energised.
A. The relay is rated for a continuous closed load of 20A and a peak closed load of 40A.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
