Product Number: 13-004
The CCL 13-004 is a 24V normally open contact micro relay with integrated diode protection, designed for use in automotive, commercial vehicle, and related electrical systems where a compact, low-profile relay is required. Its normally open configuration means the circuit remains open at rest and closes upon energisation, making it well suited to switching applications where a controlled load path is needed.

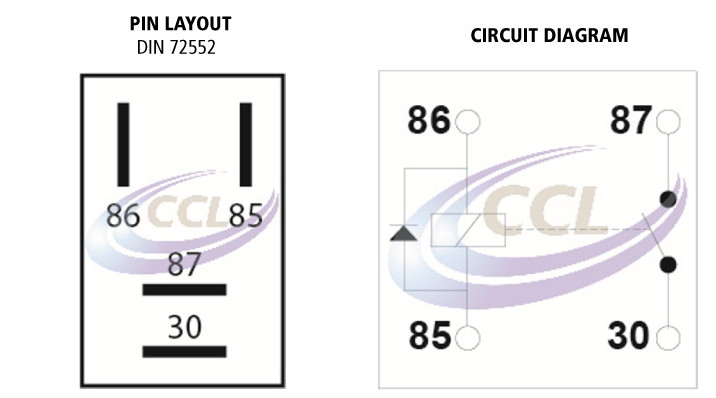

The 13-004 features a 4-pin layout with 2 x 4.8mm terminals, a continuous load rating of 20A, and a peak load capacity of 40A. The built-in diode protection suppresses voltage spikes generated when the relay coil is de-energised, safeguarding sensitive electronics in the surrounding circuit from back-EMF damage. The micro form factor is suited to installations where space is limited without compromising the relay's load-handling capability at 24V.
The CCL 13-004 is supplied as a standalone relay unit ready for installation.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | 4 Pin Normally Open Contact Micro Relay With Diode Protection |
|---|---|
| Voltage | 24 |
| Continuous | 20A |
| Peak | 40A |
| Bracket Type | None |
| Terminal Sizes | 2 X 4.8Mm, 2 X 6.3Mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The CCL 13-004 is rated at 24V with a continuous load capacity of 20A and a peak load capacity of 40A.
A. The 13-004 has a normally open contact configuration, meaning the circuit is open at rest and closes when the relay coil is energised.
A. The relay has 4 pins with 2 x 4.8mm terminals.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
