Product Number: 13-003
The CCL 13-003 is a 12V normally open contact micro relay with integrated diode protection, designed for reliable switched-circuit control in automotive, commercial vehicle, and plant electrical systems. Its compact micro form factor suits installations where space is at a premium, while the open contact configuration makes it appropriate for a wide range of standard switching applications.
The relay is rated for a continuous load of 40A on the closed contact and a peak load of 80A, providing a robust current-handling capability suited to accessories, motors, and ancillary electrical loads. The built-in diode protection suppresses back-EMF voltage spikes that can otherwise damage sensitive control circuits and electronic components when inductive loads are switched, making it the correct choice wherever circuit protection is a priority.

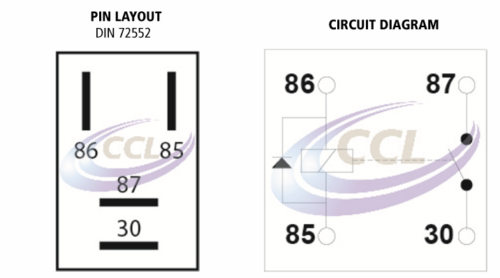

Electrical connection is made via two 4.8mm terminals on a 4-pin layout, compatible with standard automotive relay connectors and relay base accessories. The 12V operating voltage is consistent with the electrical systems found across the majority of cars, light commercial vehicles, and plant machinery.
For applications requiring a different configuration, CCL offers a broader range of relay types under the 13-series. Buyers are advised to confirm pin assignment and connector compatibility with their specific installation before ordering.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 4 Pin normally open contact Micro Relay with Diode protection |
|---|---|
| VOLTAGE | 12 |
| CONTINUOUS LOAD | 40A |
| PEAK LOAD | 80A |
| BRACKET TYPE | None |
| TERMINAL SIZES | 2 x 4.8mm, 2 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The CCL 13-003 is rated at 40A continuous load and 80A peak load on the closed contact, making it suitable for a range of switched automotive and plant electrical loads.
A. The integrated diode suppresses back-EMF voltage spikes generated when inductive loads — such as motors or solenoids — are switched off. This protects sensitive control electronics and other circuit components connected in the same system.
A. The relay uses two 4.8mm terminals on a 4-pin layout, compatible with standard automotive relay connectors and relay bases.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
