Product Number: 13-010

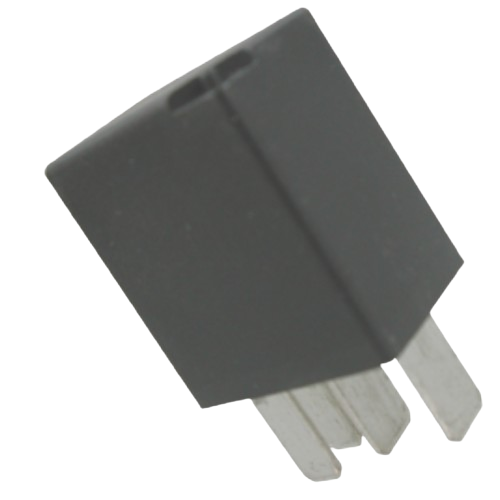

The CCL 13-010 is a 24V changeover micro relay designed for vehicle electrical systems requiring a compact, reliable switching solution. With a 5-pin configuration, it provides both normally open and normally closed switching paths, making it suited to a broad range of switching and circuit control applications across automotive, commercial vehicle, and plant electrical installations.
The 13-010 is rated for a continuous load of 20A on the normally open circuit and 15A on the normally closed circuit, with peak load capacity of 40A and 30A respectively. Connections are made via three 4.8 mm terminals, ensuring compatibility with standard automotive wiring harnesses and relay bases.
As a general-purpose 24V relay, the CCL 13-010 is particularly relevant to 24V electrical architectures found in heavy commercial vehicles, agricultural machinery, and plant equipment, where circuit switching demands frequently exceed the capability of standard 12V components.
For technical specifications, the operating voltage is 24V, continuous load ratings are 20A (open) and 15A (closed), peak ratings are 40A (open) and 30A (closed), and the terminal arrangement comprises 3 x 4.8 mm connectors.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | 5 Pin Changeover Micro Relay |
|---|---|
| Voltage | 24 |
| Continuous Load(Open) | 20A |
| Continuous Load(Closed / Switched) | 15A |
| Peak Load (Open) | 40A |
| Peak Load (Closed / Switched) | 30A |
| Bracket Type | None |
| Terminal Sizes | 3 X 4.8Mm, 2 X 6.3Mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The CCL 13-010 is rated for 24V operation, making it suitable for 24V vehicle and machinery electrical systems.
A. The 13-010 is rated for a continuous load of 20A on the normally open circuit and 15A on the normally closed circuit. Peak load capacity is 40A (normally open) and 30A (normally closed).

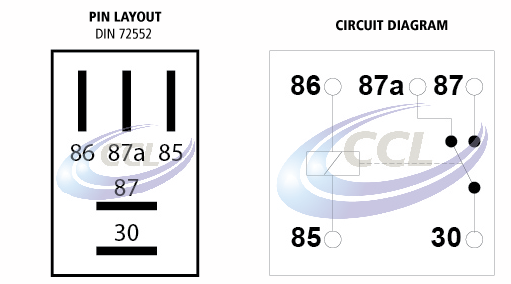

A. The 13-010 is a 5-pin relay with 3 x 4.8 mm terminals, compatible with standard automotive and commercial vehicle wiring harnesses.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
