Product Number: 13-009
The CCL 13-009 is a 5-pin, 12-volt changeover micro relay designed for automotive and commercial vehicle electrical systems where space-efficient switching of higher-current circuits is required. Its compact micro form factor makes it suitable for installations where standard-sized relays cannot be accommodated.

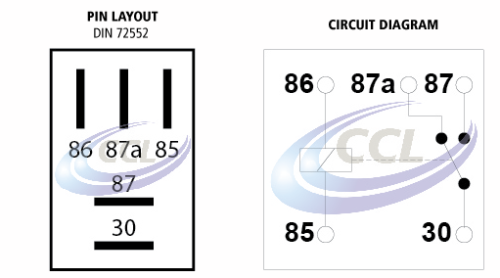

The 13-009 is rated for a continuous load of 40A on the normally open contact and 30A on the normally closed contact, with peak load capacities of 80A and 60A respectively. These ratings allow it to handle demanding switching duties across a wide range of vehicle electrical loads. Connection is made via three 4.8mm terminals alongside the standard 5-pin arrangement, ensuring compatibility with widely available relay holders and wiring harnesses.
As a changeover relay, the 13-009 provides both normally open and normally closed switching in a single unit, giving circuit designers flexibility to control multiple outputs from one switching event. This makes it well suited to applications such as auxiliary lighting circuits, horn systems, cooling fans, and other 12-volt automotive loads that demand reliable, repeatable switching.
No fitment data or OE cross-reference information is available for this product at this time.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 5 Pin changeover Micro Relay |
|---|---|
| VOLTAGE | 12 |
| CONTINUOUS LOAD (OPEN) | 40A |
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 30A |
| PEAK LOAD (OPEN) | 80A |
| PEAK LOAD (CLOSED / SWITCHED) | 60A |
| BRACKET TYPE | None |
| TERMINAL SIZES | 3 x 4.8mm, 2 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02-001 | 02-002 | 02-003 | 02-004 | 02-007 | 02-008 | 02-009 | 02-010 | 02-011 | 02-012 |
A. The 13-009 is rated for a continuous load of 40A on the normally open contact and 30A on the normally closed contact. Peak load ratings are 80A (normally open) and 60A (normally closed).
A. The relay features a 5-pin arrangement with three 4.8mm terminals, compatible with standard automotive relay holders and wiring connectors.
A. The 13-009 is a 12-volt relay designed for use in 12V DC vehicle electrical systems.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
