Product Number: 4-10016-REV

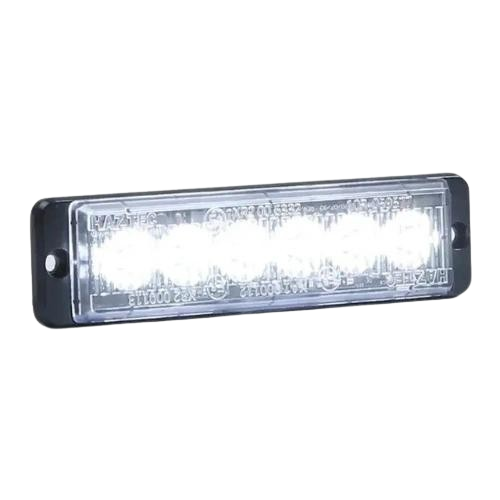

The Haztec 4-10016-REV is a surface-mount reversing light featuring a 6-LED array, rated to R23 and designed to operate across a wide voltage range of 10–40 VDC. Built for demanding plant, agricultural, and commercial vehicle environments, this unit delivers reliable, low-draw illumination wherever a dedicated reversing light is required. The six-LED configuration provides clear white rearward illumination suited to surface-mount installation on a broad range of vehicles and machinery. The R23 type-approval rating confirms the unit meets the regulatory standard required for reversing lights fitted to road-going vehicles and equipment in the UK and Europe. The wide 10–40 VDC operating range makes it equally at home on 12 V light vehicles, 24 V commercial trucks, and 36–40 V agricultural or construction machinery without the need for additional voltage regulators. Surface-mount construction simplifies fitment to flat or lightly curved panels, allowing straightforward installation on bodywork, roll cages, rear frames, and chassis-mounted light bars. The low-profile format keeps the unit within the panel envelope and reduces exposure to snagging in field or site conditions. For buyers requiring alternative lamp configurations or mounting styles within the Haztec lighting range, additional reversing and tail light variants may be available — use the selection widget or search our catalogue by model or application to identify the correct unit for your machine.
Additional Information:
4-10016 ultra slim 18 Watt 6 LED reverse light with synchronisation capability for multiple units.
E certified (R23) - R6 and R7 certified lights also available.
Matching R65 certified warning lights also available.
Surface mount. 10-40 VDC for 12 or 24V use.
Ultra thin (10mm deep) - no need to cut holes in vehicle bodywork
Generation 3 high output 3 Watt LEDs.
Multiple lights can be synchronised for alternating or simultaneous flash.
| Dimensions (mm) | 124W x 10D x 31H |
|---|---|
| Warranty | 5 Years |
| Optional accessories | Optional 4-1033 L bracket or 4-10036 roof housing |
| No of LEDs | 6 |
| Light format | Ultra slim |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
New Brands and Enhanced Lighting Category: Explore the Latest at PartsForMachines! Are you looking for reliable and high-quality lighting solutions for vehicles, workshops, or industrial applications? At PartsForMachines, we’re excited...
Standard Delivery: £4.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 4-10016-STT | 4-3056-REV | 4-3056-ST | 4-3056-STT | LAP-TRB915S | LAP-TRB1220ST | 5-7016 | LUKA501 | LUKA510 | LUKA512 | LUKA530 | LUKA531 | UTV313 | UTV404 | UTV503-12 |
| Voltage | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12 | |||||||||
| LED Count | 6 | 6 | |||||||||||||
| Approvals | ECE R23 | ECE R10 | ECE R10 | ||||||||||||
| Functions | Indicator; Stop; Tail | Reverse | Stop; Tail | Indicator; Stop; Tail | Indicator; Stop; Tail | Indicator; Stop; Tail | Indicator; Reverse; Stop; Tail | Reverse | Indicator | Fog; Indicator; Stop; Tail | |||||
A. R23 is the UN/ECE type-approval regulation governing reversing lights fitted to motor vehicles and their trailers. A lamp bearing R23 approval meets the photometric, colour, and installation requirements for road-legal use in the UK and across ECE-signatory countries, confirming the unit is fit for purpose on road-going commercial vehicles, plant, and agricultural machinery that must comply with lighting regulations.
A. Yes. The 4-10016-REV operates across a 10–40 VDC range, making it directly compatible with 12 V light vehicle and van systems, 24 V truck and bus electrical systems, and higher-voltage plant or agricultural machinery up to 40 V — with no additional voltage regulation required.
A. Yes — ask Simon, or WhatsApp our team on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Compatible spares and accessories are shown on the Related Accessories tab of this product page, and common parts across the brands we stock are in our Parts & Spares section.
