Product Number: 4-10016-STT

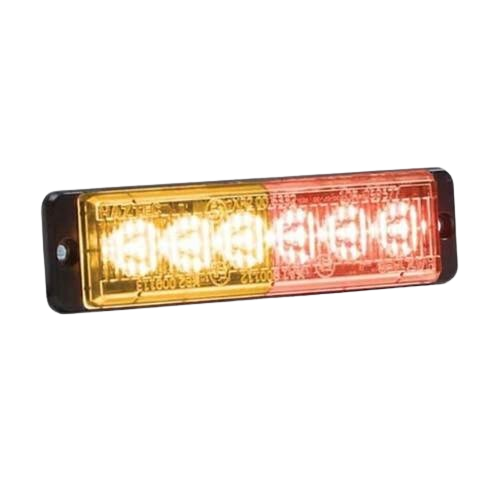

The Haztec 4-10016-STT is a surface-mount stop, tail and turn light designed for use across a wide voltage range of 10–40 VDC, making it suited to both 12V and 24V vehicle and plant electrical systems. With six LEDs providing the combined stop, tail and turn signalling functions, this unit is built for reliable performance in demanding working environments. The 4-10016-STT combines three signalling functions — stop, tail and turn — into a single, compact housing, reducing the number of separate light units required on a vehicle. The LED light source offers low current draw compared with conventional bulb equivalents, contributing to reduced electrical load on the host vehicle or machine. Surface mounting allows straightforward fitment to flat bodywork panels, tail boards and fabricated structures commonly found on agricultural, plant, and specialist vehicles. The 10–40 VDC operating range ensures compatibility with the broad spread of supply voltages encountered across mobile plant, trailers and HGV-derived platforms. As a Haztec product, the 4-10016-STT is part of a range of lighting solutions available through PartsForMachines. Contact the team or use the catalogue selection tools to confirm suitability for your specific application.
Additional Information:
4-10016 ultra slim 18 Watt 6 LED Stop Tail Turn light with synchronisation capability for multiple units.
E certified (R6/R7) - matching R23 reverse light also available.
Matching R65 certified warning lights also available.
Surface mount.
10-40 VDC for 12 or 24V use.
Ultra thin (10mm deep) - no need to cut holes in vehicle bodywork
Generation 3 high output 3 Watt LEDs.
Multiple lights can be synchronised for alternating or simultaneous flash.
| Dimensions (mm) | 124W x 10D x 31H |
|---|---|
| Warranty | 5 Years |
| Optional accessories | Optional 4-1033 L bracket or 4-10036 roof housing |
| No of LEDs | 6 |
| Light format | Ultra slim, R6 & R7 STT |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
New Brands and Enhanced Lighting Category: Explore the Latest at PartsForMachines! Are you looking for reliable and high-quality lighting solutions for vehicles, workshops, or industrial applications? At PartsForMachines, we’re excited...
Standard Delivery: £4.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | LUKA510 | LUKA512 | LUKA531 | UTV503-12 |
| Voltage | 12 | |||
| Functions | Indicator; Stop; Tail | Indicator; Stop; Tail | Indicator; Reverse; Stop; Tail | Fog; Indicator; Stop; Tail |
A. Fitment data for this specific unit is not published in the current catalogue. The 10–40 VDC operating range makes it broadly suited to 12V and 24V systems found on plant, agricultural and specialist vehicles, but you should confirm suitability for your application using the selection tools in our catalogue, or ask Simon. Every fitment shown is backed by our Fit Guarantee.
A. The 4-10016-STT provides stop, tail and turn signalling in one surface-mount unit, with six LEDs delivering all three functions. This reduces the number of individual light units required on a vehicle or machine.
A. The unit operates on 10–40 VDC, covering both 12V and 24V vehicle and plant electrical systems, as well as intermediate supply voltages encountered in mobile plant and trailer applications.
