Product Number: UTV393K
Variations

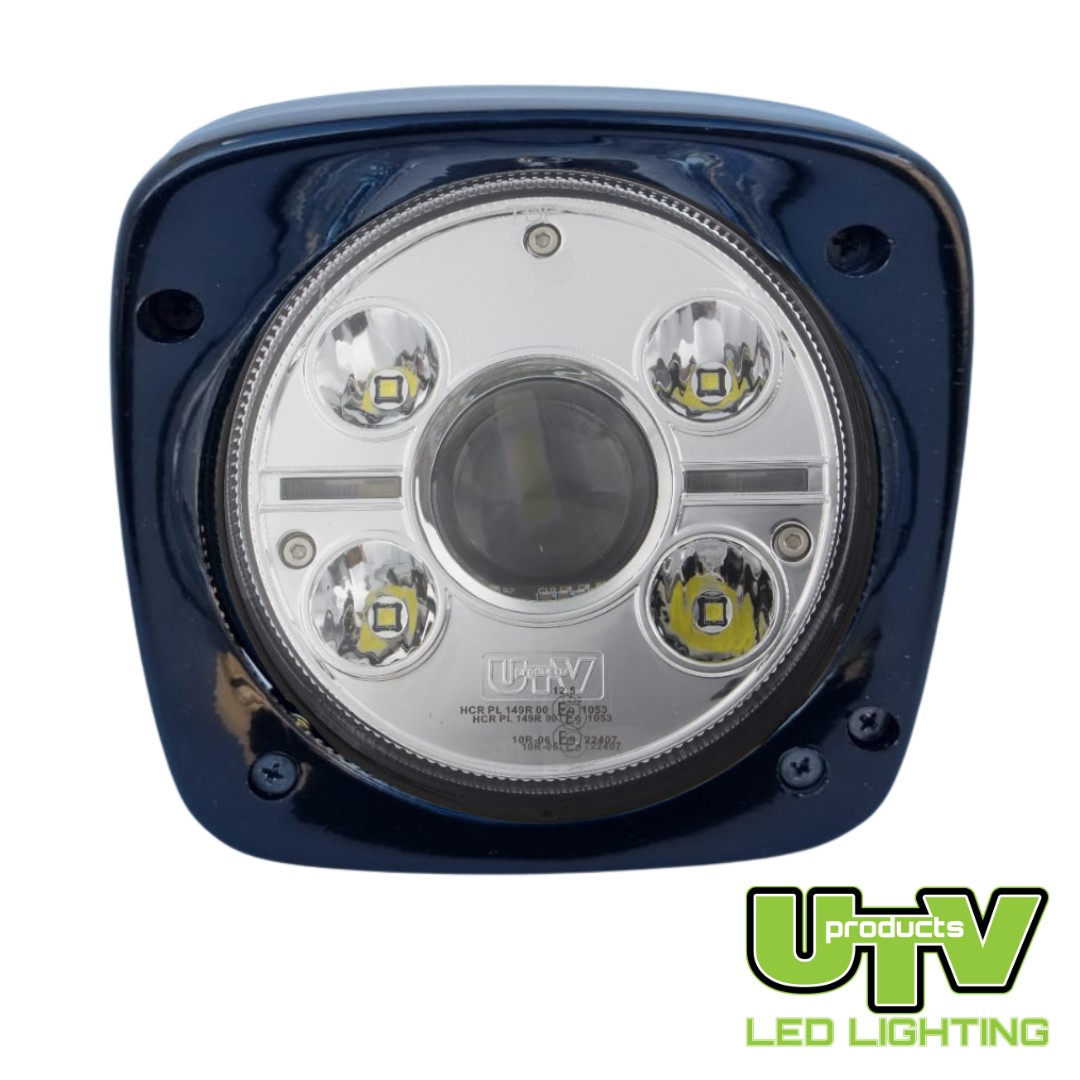

The UTV Products UTV393K is a paired LED headlight kit designed for 40, 50 and 55 Series John Deere agricultural tractors, delivering a substantial upgrade in forward lighting performance over standard incandescent or halogen originals. Sold as a complete kit of two heads, this is a direct-fitment solution engineered to match the profile and mounting requirements of the series it serves. Each headlight operates across a wide 9–32V DC input range, making it equally compatible with 12V and 24V tractor electrical systems without modification.
The low beam runs at 30W producing 2,250 lumens, while the high beam steps up to 50W and 3,750 lumens for extended after-dark working range. A 6W daytime running light (DRL) circuit is also incorporated. Colour temperature is rated at 6000K, delivering a crisp, white light output that improves contrast and target visibility in field and yard environments.
The housing carries an IP68 ingress-protection rating, confirming full resistance to dust and sustained water immersion — essential for machines operating in heavy rain, mud, or pressure-wash environments. The operating temperature range spans -40°C to +85°C, maintaining reliable function through frost, pre-dawn starts, and summer heat cycles alike. EMC compliance is certified to CISPR 25 Class 4, the highest automotive-grade electromagnetic compatibility classification, ensuring the units will not cause radio-frequency interference with the tractor's onboard electronics or GPS receivers.
The UTV393K is sold as a pair. No replacement grommet accessories are associated with this kit.
| Low Beam | 30W, 2250LM |
|---|---|
| High Beam | 50W, 3750LM |
| DRL | 6W |
| Voltage | 9-32V DC |
| IP Rating | IP68 |
| EMC/Approvals | EMC CISPR 25 Class 4 |
| Colour Temp | 6000K |
| Operating Temp | -40°C to +85°C |
| Sold As | Kit |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
New Brands and Enhanced Lighting Category: Explore the Latest at PartsForMachines! Are you looking for reliable and high-quality lighting solutions for vehicles, workshops, or industrial applications? At PartsForMachines, we’re excited...
Standard Delivery: £4.99
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | UTV332 | UTV330 | UTV300 | UTV230 | UTV231 | UTV282 | UTV290 | UTV291 | UTV300-1K | UTV300-2K | UTV300-3K | UTV300-4K | UTV300-5K | UTV300-6K | UTV300-7K |
| Voltage | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | |||
| Power Output(W) | 30 | 90 | 30 | 54 | 54 | 130 | 100 | 100 | 60 | 60 | 60 | 60 | 30 | 60 | 60 |
| IP Rating | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | |
| Approvals | ECE R10; ECE R112 | ECE R10; ECE R112 | |||||||||||||
| Lumen | 2100 | 2100 | 3315 | 3315 | 8500 | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | ||||
A. The UTV Products UTV393K is designed for 40, 50 and 55 Series John Deere tractors and is sold as a matched pair for those series. No additional fitment application data is published for this kit at present. To confirm suitability for your specific model and year, use the selection widget on this listing or ask Simon — every confirmed fitment is backed by our Fit Guarantee.
A. Each headlight in the kit delivers 30W at 2,250 lumens on low beam and 50W at 3,750 lumens on high beam. A 6W daytime running light (DRL) circuit is also built in. Colour temperature is 6000K. The units accept 9–32V DC input, covering both 12V and 24V tractor electrical systems.
A. Yes. Each headlight carries an IP68 ingress-protection rating, indicating full resistance to dust and sustained water immersion. The operating temperature range is -40°C to +85°C, and EMC compliance is certified to CISPR 25 Class 4 — the highest automotive-grade classification — ensuring no interference with onboard electronics or GPS systems.
A. Yes — ask Simon, or WhatsApp our team on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Compatible spares and accessories are shown on the Related Accessories tab of this product page, and common parts across the brands we stock are in our Parts & Spares section.
