Product Number: UTV330

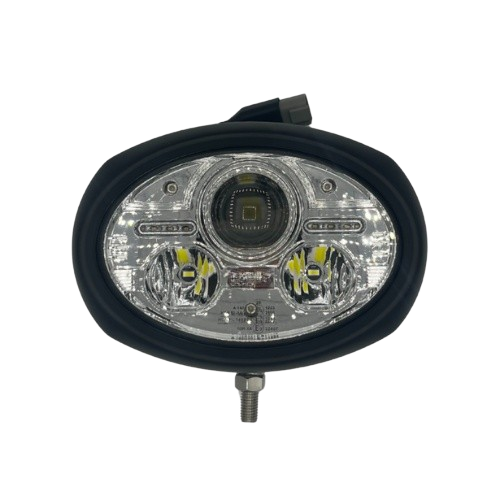

The UTV Products UTV330 is a 90W large oval LED headlight with integrated three-mode operation — high beam, low beam, and daytime running light (DRL) — delivered through a sealed 4-pin DT connector. Designed for demanding plant, agricultural, and off-highway applications, it provides a robust, all-in-one forward lighting solution in a single unit. The UTV330 operates across a wide 9–32V input range, making it compatible with both 12V and 24V electrical systems commonly found across agricultural machinery, plant equipment, and commercial vehicles. Low beam output is rated at 30W and 2,100 lumens; high beam delivers 60W and 4,200 lumens for maximum forward visibility.
The DRL circuit draws 6W, providing a clear daytime presence without significant power demand. Colour temperature is 6000K, producing a crisp, white light output suited to field and site use. Built to IP68 ingress protection, the UTV330 is fully sealed against dust and sustained water immersion — a necessary standard for agricultural and construction environments where pressure washing and heavy weather exposure are routine. The unit operates reliably from -40°C to +60°C, covering everything from winter field work to high-ambient-temperature plant and dock applications.
The large oval form factor and DT-4 connector allow straightforward integration into OEM-style wiring harnesses. The UTV330 is sold as a single unit. Buyers requiring a pair should order two. For related wiring accessories, harnesses, or connector components, see the Related Accessories tab of this product page.
Additional Information:
The UTV330 is an oval high-level headlight with built-in DRL, offering a combined output of 6300 Actual Lumens per light, totaling 12,600 Actual Lumens when used as a pair. This headlight provides substantial illumination and extended distance compared to factory-fitted halogen lights, making it ideal for darker environments and reducing eye fatigue during nighttime driving. The low beam ensures excellent close-range visibility for detecting people, obstacles, and other machines. The integrated DRL enhances daytime visibility for safety on and off the road. All UTV330 lights are free from radio interference, a pioneering technology that prevents crackles on radios, CB radios, and GPS devices, ensuring uninterrupted operation. Designed to maintain the OEM appearance of your machine, these lights blend seamlessly without looking out of place.
Suitable for: Valtra, Case Puma Series, JCB, Kubota, Claas, Krone and various machines
| Low Beam | 30W, 2100LM |
|---|---|
| High Beam | 60W, 4200LM |
| DRL | 6W (per live site; brochure printed 12W on this page) |
| Voltage | 9-32V |
| IP Rating | IP68 |
| Colour Temp | 6000K |
| Operating Temp | -40°C to +60°C |
| Sold As | Single |
| Mounting/Connector | 4-pin DT connector |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
New Brands and Enhanced Lighting Category: Explore the Latest at PartsForMachines! Are you looking for reliable and high-quality lighting solutions for vehicles, workshops, or industrial applications? At PartsForMachines, we’re excited...
Standard Delivery: £4.99
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | UTV332 | UTV300 | UTV230 | UTV231 | UTV282 | UTV290 | UTV291 | UTV300-1K | UTV300-2K | UTV300-3K | UTV300-4K | UTV300-5K | UTV300-6K | UTV300-7K | UTV300-8K |
| Voltage | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | ||||
| Power Output(W) | 30 | 30 | 54 | 54 | 130 | 100 | 100 | 60 | 60 | 60 | 60 | 30 | 60 | 60 | |
| IP Rating | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | ||
| Approvals | ECE R10; ECE R112 | ECE R10; ECE R112 | |||||||||||||
| Lumen | 2100 | 3315 | 3315 | 8500 | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | |||||
A. No specific vehicle or machine fitment data is published for the UTV330 at this time. Fit is best confirmed by matching the unit's electrical specification (9–32V, 4-pin DT connector) and physical form factor to your machine's requirements. If you need help confirming suitability, ask Simon or search our catalogue by machine model — and every confirmed fitment is backed by our Fit Guarantee.
A. The UTV330 offers three modes. Low beam runs at 30W and produces 2,100 lumens. High beam runs at 60W and produces 4,200 lumens. The DRL circuit draws 6W. Colour temperature across all modes is 6000K. The unit accepts 9–32V input, covering both 12V and 24V systems.
A. The UTV330 carries an IP68 ingress protection rating, meaning it is fully sealed against dust and against sustained water immersion — suitable for pressure-washing environments and prolonged outdoor exposure. The stated operating temperature range is -40°C to +60°C.
A. Yes — ask Simon, or WhatsApp our team on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Compatible spares and accessories are shown on the Related Accessories tab of this product page, and common parts across the brands we stock are in our Parts & Spares section.
